CV640-3039 - Kohler Command PRO Engine, Made for Toro, 20.5hp, 15.3kW Lubrication Group 3-24-904 CV18-750 Parts Diagram

Command PRO Engine, Made for Toro, 20.5hp, 15.3kW

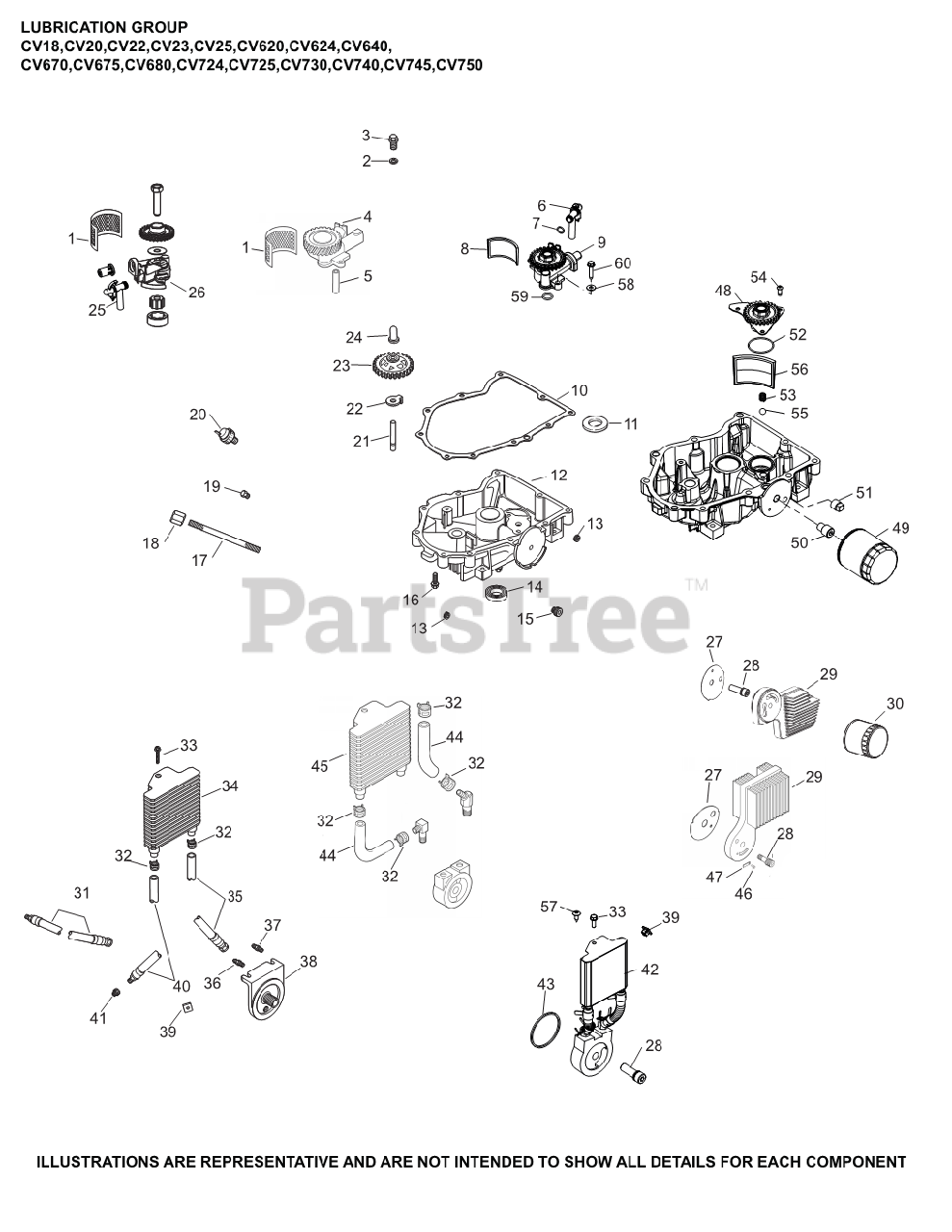

Lubrication Group 3-24-904 CV18-750 Parts Diagram

  • Title

10

Kohler 24 041 66-S

GASKET, OIL PAN

$25.99

$

In Stock, Qty 8

0

12

Kohler 24 199 35-S

KIT, OIL PAN ASSEMBLY

$337.99

$

In Stock, only 1 left!

0

13

Kohler 25 139 62-S

PLUG, PIPE CTSK 3/8"

$3.49

$

In Stock, only 2 left!

0

14

Kohler 25 032 06-S

SEAL, OIL

$10.99

$

In Stock, Qty 20+

0

16

Kohler 24 086 17-S

SCREW, FLG M8X1.25X45

$2.49

$

In Stock, Qty 5

0

19

Kohler 52 139 02-S

PLUG, HD PIPE 3/8"

$8.49

$

In Stock, only 2 left!

0

21

Kohler 12 144 02-S

SHAFT, GOVERNOR GEAR

$4.49

$

In Stock, Qty 8

0

22

Kohler 24 448 02-S

TAB, LOCKING

$2.49

$

In Stock, Qty 20+

0

23

Kohler 24 043 12-S

KIT, GOVERNOR GEAR W/PIN

$68.99

$

In Stock, Qty 12

0

24

Kohler 12 380 01-S

PIN, GOVERNOR REGULATING

$3.49

$

In Stock, Qty 9

0

30

Kohler 12 050 01-S

OIL FILTER

$13.99

$

In Stock, Qty 20+

0

33

Kohler 24 086 12-S

SCREW, TAP M6X1.7X18

$

$

Not available

39

Kohler 25 100 37-S

NUT, PLASTIC - BLACK

$2.49

$

In Stock, Qty 9

0

48

Kohler 24 393 89-S

PUMP, OIL ASSEMBLY

$29.99

$

In Stock, only 1 left!

0

50

Kohler 24 136 01-S

NIPPLE, OIL FILTER
(Superseded to 24 136 09-S)

$5.99

$

Usually ships in 2-5 days

0

52

Kohler 12 153 05-S

O-RING (1.78" DIA)

$7.99

$

In Stock, only 1 left!

0

53

Kohler 24 089 74-S

SPRING, COMPRESSION

$2.49

$

In Stock, only 2 left!

0

54

Kohler 25 086 414-S

SCREW, BUTTON HEAD
(Superseded to 25 086 792-S)

$2.49

$

In Stock, only 2 left!

0

55

Kohler 25 194 03-S

PRESSURE RELIEF BALL

$2.49

$

In Stock, only 2 left!

0

56

Kohler 32 162 06-S

SCREEN, OIL

$5.49

$

In Stock, only 2 left!

0

59

Kohler 24 153 08-S

O-RING

$6.99

$

In Stock, only 1 left!

0

25086317-S

Kohler 25 086 317-S

SCREW, HEX FLANGE

Note: NOT ILLUSTRATED

$2.49

$

In Stock, only 2 left!

0
