CV640-3039 - Kohler Command PRO Engine, Made for Toro, 20.5hp, 15.3kW Engine Controls Group 9-24-455 CV18-750 Parts Diagram

Command PRO Engine, Made for Toro, 20.5hp, 15.3kW

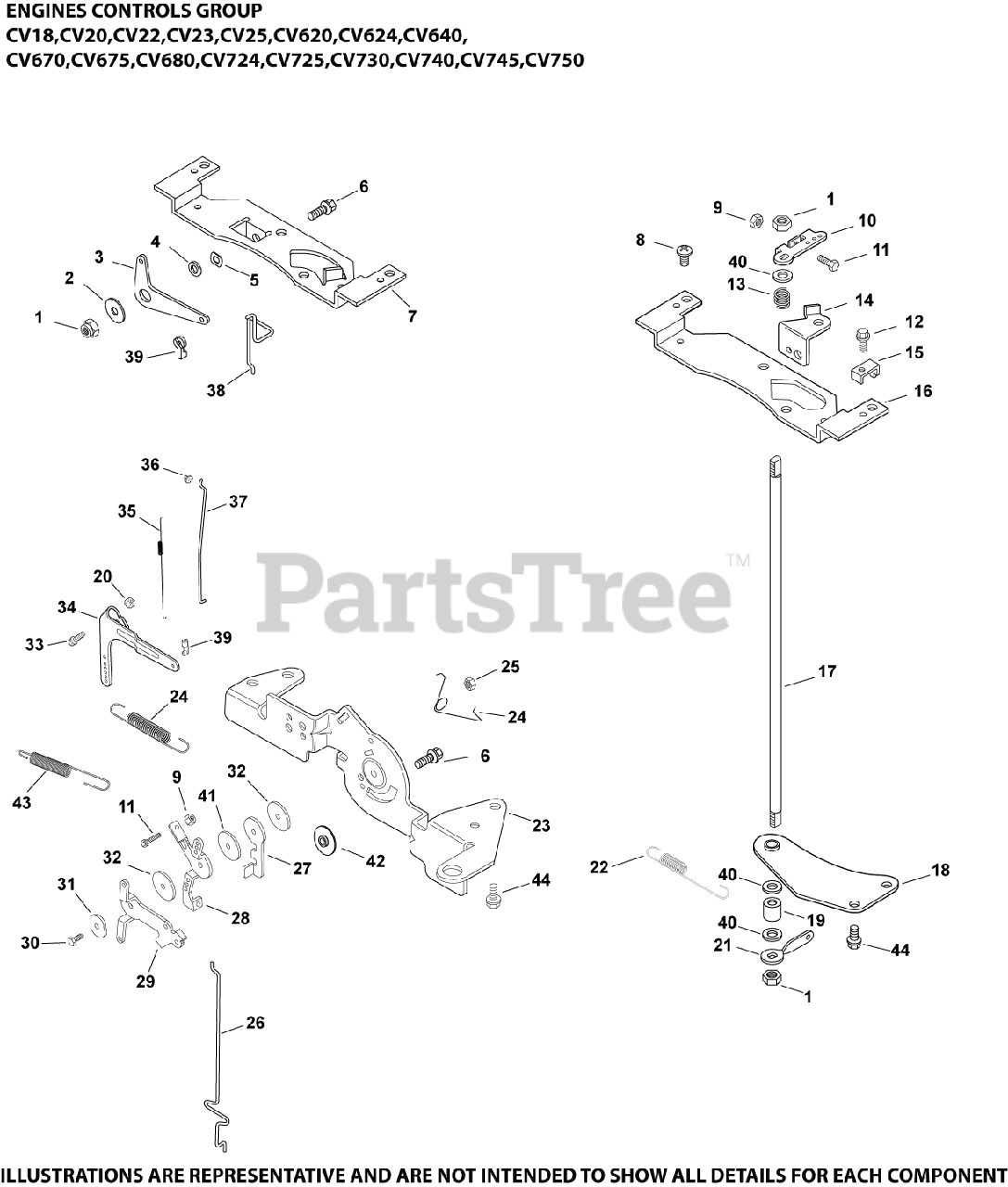

Engine Controls Group 9-24-455 CV18-750 Parts Diagram

  • Title

1

Kohler M-647060-S

NUT, LOCK M6X1.0

$2.49

$

In Stock, only 3 left!

0

2

Kohler X-25-52-S

WASHER, FLAT 1/4"

$3.99

$

In Stock, only 1 left!

0

3

Kohler 24 090 20-S

LEVER, CHOKE

$9.99

$

Usually ships in 2-5 days

0

4

Kohler 25 431 01-S

SPACER

$7.49

$

In Stock, only 2 left!

0

5

Kohler 277341-S

WASHER, SPRING 3/8"

$7.49

$

Usually ships in 2-5 days

0

6

Kohler M-639016-S

SCREW, FLG M6X1.0X16

$2.49

$

In Stock, Qty 6

0

7

Kohler 24 126 219-S

BRACKET, CONTROL

$37.99

$

Usually ships in 2-5 days

0

9

Kohler M-446030-S

NUT, M4X0.7

$2.49

$

In Stock, only 4 left!

0

10

Kohler 24 090 09-S

LEVER, THROTTLE CONTROL

$10.99

$

In Stock, only 2 left!

0

11

Kohler M-401030-S

SCREW, CAP M4X.7X30

$3.49

$

In Stock, Qty 9

0

17

Kohler 24 144 11-S

SHAFT, THROTTLE

$28.99

$

Usually ships in 2-5 days

0

18

Kohler 24 126 162-S

BRACKET, THROTTLE SHAFT

$8.99

$

In Stock, only 1 left!

0

19

Kohler 24 112 10-S

SPACER

$2.99

$

In Stock, only 1 left!

0

20

Kohler M-641060-S

NUT, FLG M6X1.0

$4.49

$

In Stock, Qty 7

0

21

Kohler 24 090 12-S

LEVER, THROTTLE CONTROL

$10.99

$

Usually ships in 2-5 days

0

22

Kohler 24 089 45-S

SPRING, GOVERNOR (BLUE)

$8.99

$

In Stock, Qty 10

0

22

Kohler 24 089 25-S

SPRING, GOVERNOR (ORANGE)

$15.99

$

In Stock, only 1 left!

0

22

Kohler 24 089 47-S

SPRING, GOVERNOR (GREEN)

$8.99

$

Usually ships in 2-5 days

0

23

Kohler 24 126 56-S

BRACKET, CONTROL-USE 24 126 176-S
(Superseded to 24 126 263-S)

$10.99

$

In Stock, only 1 left!

0

23

Kohler 24 126 176-S

BRACKET, CONTROL
(Superseded to 24 126 263-S)

$10.99

$

In Stock, only 1 left!

0

23

Kohler 24 126 161-S

BRACKET, CONTROL-USE 24 126 172-S
(Superseded to 24 126 72-S)

$43.99

$

Usually ships in 2-5 days

0

23

Kohler 24 126 172-S

BRACKET, CONTROL - (#3212604S)
(Superseded to 32 126 18-S)

$11.99

$

In Stock, only 2 left!

0

24

Kohler 24 089 03-S

SPRING, CHOKE RETURN

$2.99

$

In Stock, Qty 12

0

25

Kohler M-547050-S

NUT, LOCK M5X.8

$2.49

$

In Stock, only 2 left!

0

26

Kohler 24 079 05-S

USE 24 079 22-S CHOKE LINKAGE
(Superseded to 24 079 22-S)

$6.99

$

In Stock, Qty 7

0

26

Kohler 24 079 22-S

LINKAGE, CHOKE

$6.99

$

In Stock, Qty 7

0

27

Kohler 24 090 07-S

LEVER,THROTTLE ACTUATOR-USE(24 090 65-S
(Superseded to 24 090 65-S)

$5.49

$

In Stock, only 1 left!

0

27

Kohler 24 090 65-S

LEVER, THROTTLE ACTUATOR

$5.49

$

In Stock, only 1 left!

0

27

Kohler 24 090 47-S

LEVER, THROTTLE ACTUATOR

$2.99

$

In Stock, Qty 11

0

28

Kohler 24 090 03-S

LEVER, THROTTLE CONTROL

$13.99

$

In Stock, only 1 left!

0

28

Kohler 24 090 13-S

LEVER, THROTTLE CONTROL

$9.49

$

In Stock, only 1 left!

0

29

Kohler 24 090 05-S

LEVER, CHOKE

$5.49

$

In Stock, only 2 left!

0

30

Kohler M-545020-S

SCREW, FLG THD FRM M5X.8X20-(#25086399S)
(Superseded to 25 086 473-S)

$2.49

$

In Stock, Qty 6

0

30

Kohler 25 086 399-S

SCREW, THREAD FORMING - USE 25 086 473-S
(Superseded to 25 086 473-S)

$2.49

$

In Stock, Qty 6

0

31

Kohler 41 468 03-S

WASHER, SPRING 1/4"

$3.49

$

In Stock, only 2 left!

0

33

Kohler 24 211 03-S

BOLT, RD HD SQ NECK M6X1.0X25

$2.49

$

In Stock, Qty 15

0

34

Kohler 24 090 69-S

LEVER, GOVERNOR ASSEMBLY

$8.99

$

In Stock, only 1 left!

0

35

Kohler 24 089 01-S

SPRING, LINKAGE

$6.49

$

In Stock, only 4 left!

0

36

Kohler 25 158 08-S

BUSHING, LINKAGE RETAINING

$5.99

$

In Stock, Qty 19

0

37

Kohler 24 079 04-S

LINKAGE, THROTTLE

$3.49

$

In Stock, Qty 6

0

38

Kohler 24 079 10-S

LINKAGE, CHOKE

$19.99

$

In Stock, only 2 left!

0

39

Kohler 25 158 11-S

BUSHING, THROTTLE LINKAGE

$5.99

$

In Stock, Qty 13

0

40

Kohler X-25-72-S

WASHER, FLAT 1/4"

$3.99

$

In Stock, only 1 left!

0

25086396-S

Kohler 25 086 396-S

SCREW, THREAD FORMING

Note: NOT ILLUSTRATED

$2.49

$

In Stock, only 1 left!

0

25086423-S

Kohler 25 086 423-S

SCREW, HEX WASHER HI-LO

Note: NOT ILLUSTRATED

$2.49

$

Usually ships in 2-5 days

0

235778-S

Kohler 235778-S

CLAMP

Note: NOT ILLUSTRATED

$10.99

$

Usually ships in 2-5 days

0

25086400-S

Kohler 25 086 400-S

SCREW, THREAD FORMING

Note: NOT ILLUSTRATED

$2.49

$

In Stock, only 2 left!

0
