CV640-3039 - Kohler Command PRO Engine, Made for Toro, 20.5hp, 15.3kW Crankcase Group 2-24-457 CV18-750 Parts Diagram

Command PRO Engine, Made for Toro, 20.5hp, 15.3kW

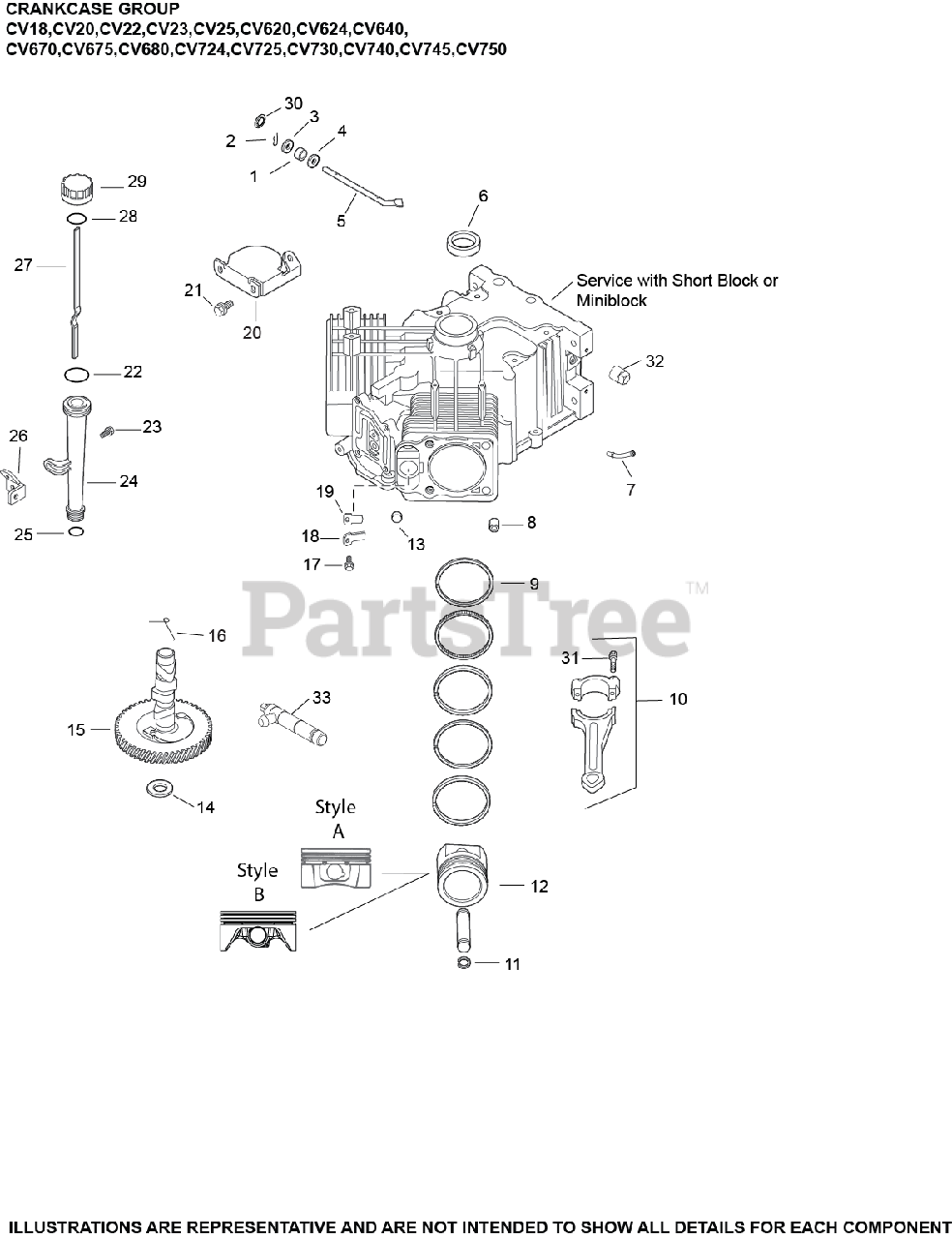

Crankcase Group 2-24-457 CV18-750 Parts Diagram

  • Title

1

Kohler 28 032 09-S

SEAL, GOVERNOR CROSS SHAFT

$3.49

$

In Stock, Qty 7

0

3

Kohler M-931010-S

WASHER, FLAT 9 MM

$2.49

$

In Stock, only 2 left!

0

4

Kohler 24 468 15-S

WASHER, FLAT 11/32"

$2.49

$

In Stock, Qty 5

0

5

Kohler 24 144 38-S

SHAFT, GOVERNOR CROSS
(Superseded to 24 144 39-S)

$41.99

$

Usually ships in 2-5 days

0

6

Kohler 24 032 19-S

SEAL, OIL (HELIX LIP)

$7.49

$

In Stock, Qty 20+

0

7

Kohler 24 294 13-S

FITTING

$11.99

$

Usually ships in 2-5 days

0

8

Kohler 24 380 16-S

PIN, LOCATING

$4.49

$

In Stock, only 3 left!

0

9

Kohler 24 108 26-S

RING SET (STYLE B) (STD)1.2MM TOP RING THICKNESS

$150.99

$

Usually ships in 2-5 days

0

9

Kohler 24 108 27-S

RING SET (STYLE B) (.08)1.2MM TOP RING THICKNESS

$146.99

$

Usually ships in 2-5 days

0

9

Kohler 24 108 28-S

RING SET (STYLE B) (.25)1.2MM TOP RING THICKNESS

$146.99

$

Usually ships in 2-5 days

0

9

Kohler 24 108 29-S

RING SET (STYLE B) (.50)1.2MM TOP RING THICKNESS

$146.99

$

Usually ships in 2-5 days

0

10

Kohler 24 067 34-S

KIT, CONNECTING ROD ASSEMBLY USE 25 067 04-S
(Superseded to 25 067 04-S)

$59.99

$

In Stock, Qty 6

0

10

Kohler 24 067 35-S

KIT, CONNECTING ROD ASSEMBLY (.25 mm)
(Superseded to 25 067 05-S)

$59.99

$

In Stock, only 1 left!

0

11

Kohler 24 018 01-S

RETAINER, PISTON PIN

$2.99

$

In Stock, Qty 7

0

12

Kohler 24 874 54-S

PISTON W/RINGS (STYLE B)(STD) - RING SET 24 108 26-S

$250.99

$

In Stock, only 3 left!

0

12

Kohler 24 874 55-S

PISTON W/RINGS (STYLE B)(.08) - RING SET 24 108 27-S

$

$

Not available

12

Kohler 24 874 56-S

PISTON W/RINGS (STYLE B)(.25) - RING SET 24 108 28-S

$289.99

$

Usually ships in 2-5 days

0

12

Kohler 24 874 57-S

PISTON W/RINGS (STYLE B)(.50) - RING SET 24 108 29-S

$289.99

$

Usually ships in 2-5 days

0

13

Kohler 52 139 09-S

PLUG, CUP

$4.99

$

In Stock, only 2 left!

0

15

Kohler 24 012 10-S

KIT, CAMSHAFT
(Superseded to 24 012 23-S)

$138.99

$

Usually ships in 2-5 days

0

17

Kohler M-545010-S

SCREW, FLG THD FRM M5X.8X10

$4.49

$

In Stock, only 2 left!

0

17

Kohler M-545013-S

SCREW, FLG THD FRM M5X0.8X13

$2.49

$

In Stock, Qty 9

0

18

Kohler 24 018 04-S

RETAINER, BREATHER REED

$2.49

$

In Stock, only 2 left!

0

19

Kohler 24 402 05-S

REED, BREATHER
(Superseded to 24 402 07-S)

$3.99

$

In Stock, Qty 8

0

22

Kohler 12 153 02-S

O-RING, UPPER OIL FILL TUBE

$2.49

$

In Stock, Qty 8

0

24

Kohler 25 123 07-S

TUBE ASSEMBLY

$16.99

$

In Stock, only 1 left!

0

25

Kohler 12 153 01-S

O-RING, LOWER OIL FILL TUBE

$4.99

$

In Stock, Qty 17

0

26

Kohler 24 126 246-S

BRACKET, OIL FILL TUBE
(Superseded to 24 126 257-S)

$9.49

$

Usually ships in 2-5 days

0

27

Kohler 24 038 04-S

DIPSTICK, ASSY

$19.99

$

In Stock, only 1 left!

0

28

Kohler 25 153 02-S

O-RING, DIPSTICK

$2.49

$

In Stock, only 1 left!

0

29

Kohler 25 755 13-S

KIT, OIL FILL CAP (BLACK)

$13.99

$

In Stock, only 1 left!

0

30

Kohler 24 018 09-S

RETAINER, RING

$2.49

$

Usually ships in 2-5 days

0
