CV640-3039 - Kohler Command PRO Engine, Made for Toro, 20.5hp, 15.3kW Air Intake Group 10-24-416 CV18-750 Parts Diagram

Command PRO Engine, Made for Toro, 20.5hp, 15.3kW

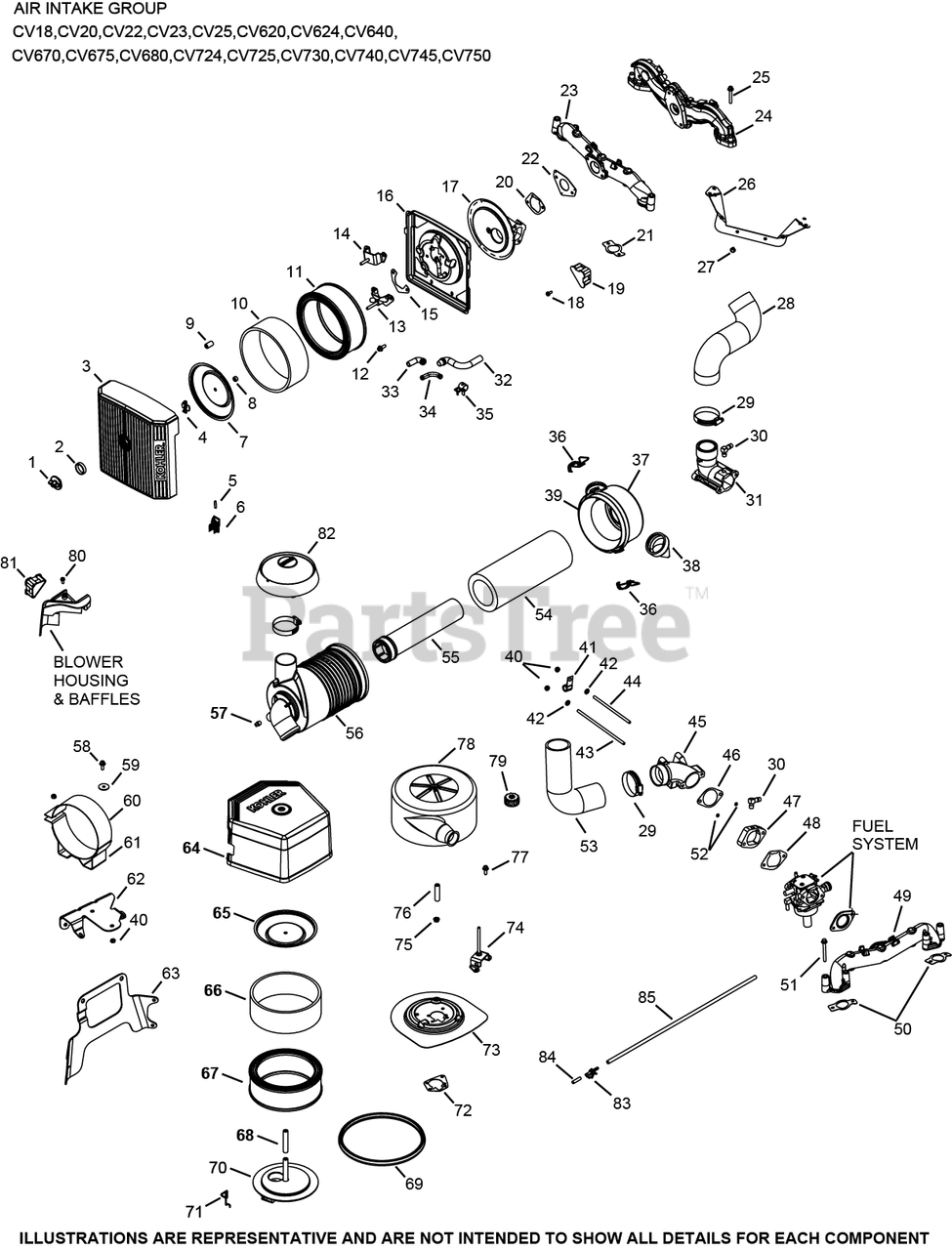

Air Intake Group 10-24-416 CV18-750 Parts Diagram

  • Title

1

Kohler 25 341 04-S

KNOB, COVER

$7.99

$

In Stock, only 1 left!

0

2

Kohler 24 743 05-S

KIT, AIR CLEANER COVER

$90.99

$

In Stock, only 2 left!

0

3

Kohler 24 096 67-S

COVER, AIR CLEANER

$47.99

$

In Stock, only 2 left!

0

4

Kohler 12 100 01-S

NUT, WING

$3.99

$

In Stock, Qty 18

0

7

Kohler 24 096 01-S

COVER, INNER AIR CLEANER

$16.99

$

In Stock, only 2 left!

0

8

Kohler 24 032 03-S

SEAL, INNER AIR CLEANER

$4.99

$

In Stock, only 3 left!

0

10

Kohler 24 083 02-S

ELEMENT, PRECLEANER (LOW)

$6.99

$

In Stock, Qty 9

0

11

Kohler 47 083 03-S

ELEMENT, AIR CLEANER - Also available Retail Packaged 47 883 03-S1 Air Filter Kit

$23.99

$

In Stock, Qty 9

0

15

Kohler 24 041 13-S

GASKET, FUEL SPITBACK CUP

$5.99

$

In Stock, only 3 left!

0

20

Kohler 24 041 14-S

GASKET, AIR CLEANER BASE

$3.49

$

In Stock, Qty 15

0

22

Kohler 24 041 52-S

GASKET, CARBURETOR
(Superseded to 24 041 91-S)

$5.49

$

In Stock, only 4 left!

0

26

Kohler 24 126 130-S

BRACKET, AIR CLEANER BASE

$10.99

$

In Stock, only 1 left!

0

75

Kohler M-641060-S

NUT, FLG M6X1.0

$4.99

$

In Stock, Qty 6

0

83

Kohler 25 155 51-S

CONNECTOR, EVAPORATIVE

$13.99

$

In Stock, only 2 left!

0

84

Kohler 25 173 33-S

CAP, MASKING

$2.49

$

In Stock, only 1 left!

0

85

Kohler 25 326 08-S

HOSE, EVAPORATIVE 20"
(Superseded to 24 326 143-S)

$5.49

$

In Stock, only 3 left!

0

2409487-S

Kohler 24 094 87-S

KIT, AIR CLEANER BASE

Note: NOT ILLUSTRATED

$95.99

$

Usually ships in 2-5 days

0

2410930-S

Kohler 24 109 30-S

CUP, SPIT-BACK W/STUD

Note: NOT ILLUSTRATED

$31.99

$

Usually ships in 2-5 days

0

24326131-S

Kohler 24 326 131-S

HOSE, EVAP

Note: NOT ILLUSTRATED

$7.49

$

In Stock, Qty 8

0

2429427-S

Kohler 24 294 27-S

CONNECTOR, EVAPORATIVE HOSE

Note: NOT ILLUSTRATED

$3.49

$

Usually ships in 2-5 days

0

25086400-S

Kohler 25 086 400-S

SCREW, THREAD FORMING

Note: NOT ILLUSTRATED

$2.99

$

In Stock, only 3 left!

0

2415320-S

Kohler 24 153 20-S

O-RING

Note: NOT ILLUSTRATED

$2.99

$

In Stock, only 2 left!

0

2415327-S

Kohler 24 153 27-S

O-RING, INTAKE PORT

Note: NOT ILLUSTRATED

$3.99

$

In Stock, only 1 left!

0

M-651040-S

Kohler M-651040-S

SCREW, FLG M6X1.0X40

Note: NOT ILLUSTRATED

$2.49

$

In Stock, only 1 left!

0
