CV620-0010 - Kohler Command PRO Engine, Made for Finmotor, 19hp, 14.2kW Fuel System 8-24-705 Parts Diagram

Command PRO Engine, Made for Finmotor, 19hp, 14.2kW

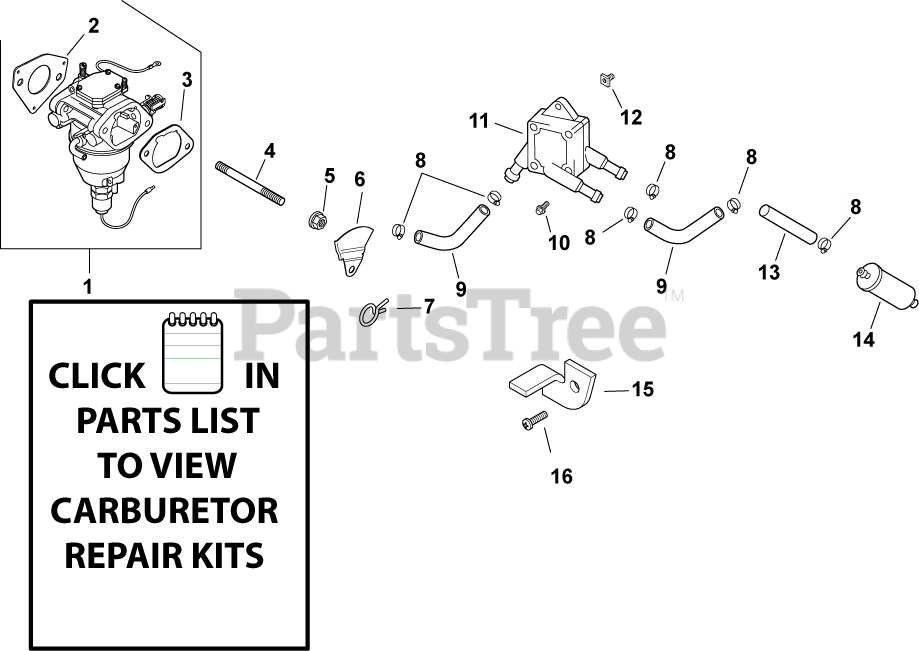

Fuel System 8-24-705 Parts Diagram

  • Title

1

Kohler 24 853 19-S

CARBURETOR KIT-USE 24 853 25-S
(Superseded to 24 853 25-S)

Note: (includes 2,3)

$605.99

$

Usually ships in 2-5 days

0

2

Kohler 24 041 52-S

GASKET, CARBURETOR
(Superseded to 24 041 91-S)

$5.49

$

In Stock, Qty 8

0

3

Kohler 24 041 14-S

GASKET, AIR CLEANER BASE

$2.99

$

In Stock, Qty 9

0

4

Kohler M-629095-S

STUD,M6X1.0X96

$3.99

$

Usually ships in 2-5 days

0

5

Kohler M-641060-S

NUT, FLG M6X1.0

$4.49

$

In Stock, Qty 11

0

6

Kohler 24 063 51-S

BAFFLE, SPIT-BACK CUP-USE 24 063 105-S
(Superseded to 24 063 105-S)

$8.99

$

Usually ships in 2-5 days

0

7

Kohler X-426-9-S

CLAMP, HOSE 1/2" USE 25 237 14-S
(Superseded to 25 237 14-S)

$4.99

$

In Stock, only 2 left!

0

8

Kohler 25 237 14-S

CLAMP, HOSE (KM)-USE 25 237 31-S
(Superseded to 25 237 31-S)

$4.99

$

In Stock, only 2 left!

0

9

Kohler 25 111 34-S

HOSE,LW PERM.FUEL 24.00"-USE 25 111 81-S
(Superseded to 25 111 81-S)

$17.99

$

In Stock, Qty 7

0

10

Kohler 24 086 12-S

SCREW, TAP M6X1.7X18

$

$

Not available

11

Kohler 24 393 16-S

PUMP, FUEL

$32.99

$

In Stock, only 2 left!

0

12

Kohler 24 100 01-S

NUT, PLASTIC (KM)-USE 25 100 37-S
(Superseded to 25 100 37-S)

$2.49

$

In Stock, Qty 13

0

13

Kohler 24 353 12-S

LINE, FUEL 11"

$3.99

$

Usually ships in 2-5 days

0

14

Kohler 24 050 10-S

FILTER, FUEL (9-12 MICRON)-USE 24 050 13
(Superseded to 24 050 13-S)

$12.99

$

In Stock, Qty 20+

0

15

Kohler 24 126 29-S

BRACKET, THROTTLE STOP

$14.99

$

Usually ships in 2-5 days

0

16

Kohler M-259005-S

SCREW, PHL THD FRM M2.5X0.45X5

$2.49

$

Usually ships in 2-5 days

0

2443101-S

Kohler 24 431 01-S

SLEEVE,INSULATING 6.0"-USE 24 431 02-S
(Superseded to 24 431 02-S)

Note: NOT ILLUSTRATED

$6.49

$

In Stock, only 1 left!

0

2475719-S

Kohler 24 757 19-S

KIT, REPAIR SERVICE CHOKE

Note: NOT ILLUSTRATED

$153.99

$

In Stock, only 1 left!

0

2475720-S

Kohler 24 757 20-S

KIT, REPAIR SERVICE GASKET

Note: NOT ILLUSTRATED

$62.99

$

In Stock, only 1 left!

0

2475722-S

Kohler 24 757 22-S

KIT, REPAIR SOLENOID VALVE

Note: NOT ILLUSTRATED

$217.99

$

In Stock, only 2 left!

0

2475718-S

Kohler 24 757 18-S

KIT, CARBURETOR REPAIR

Note: NOT ILLUSTRATED

$79.99

$

In Stock, only 2 left!

0
