CV493-27537 - Kohler Command PRO Engine, Made for John Deere Turf Care, 18hp, 13.4kW Head/Valve/Breather Parts Diagram

Command PRO Engine, Made for John Deere Turf Care, 18hp, 13.4kW

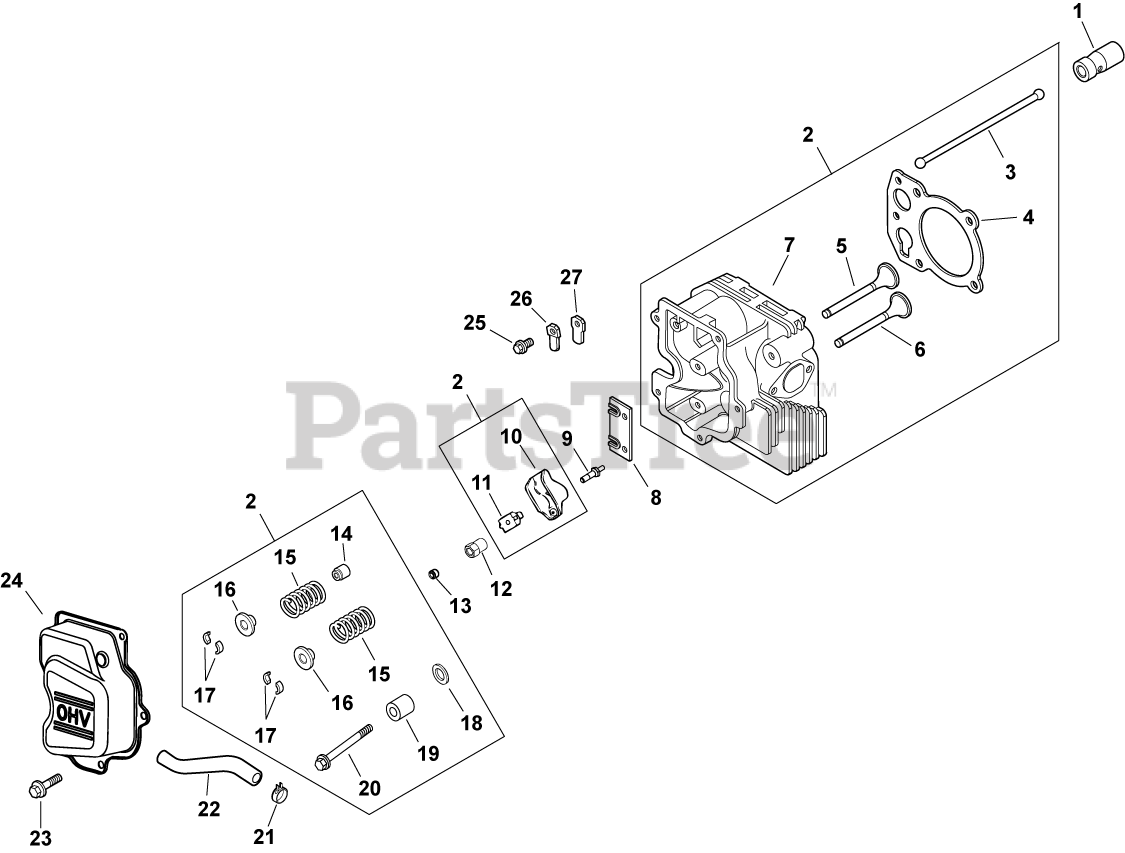

Head/Valve/Breather Parts Diagram

  • Title

1

Kohler 25 351 04-S

LIFTER, HYDRAULIC VALVE-USE 25 351 10-S
(Superseded to 25 351 11-S)

Note: (includes 25 357 14-S)

$23.99

$

In Stock, only 4 left!

0

2

Kohler 12 755 101-S

KIT, CYLINDER HEAD HARDWARE

Note: (includeds 3-7, 10,11, 14-20)

$

$

Not available

3

Kohler 12 411 05-S

ROD, PUSH - DISCONTINUED

$

$

Not available

4

Kohler 12 041 10-S

GASKET, CYLINDER HEAD

$17.99

$

In Stock, only 1 left!

0

5

Kohler 12 017 01-S

VALVE, INTAKE

$32.99

$

Usually ships in 2-5 days

0

6

Kohler 12 016 01-S

VALVE, EXHAUST

$54.99

$

Usually ships in 2-5 days

0

7

Kohler 12 318 51-S

HEAD ASSEMBLY, CYLINDER - DISCONTINUED

$

$

Not available

8

Kohler 12 146 22-S

PLATE, GUIDE

$

$

Not available

9

Kohler 25 072 12-S

STUD, ROCKER

$6.49

$

Usually ships in 2-5 days

0

10

Kohler 25 186 01-S

ARM, ROCKER

$12.99

$

In Stock, only 2 left!

0

11

Kohler 25 599 01-S

PIVOT, ROCKER ARM

$2.99

$

In Stock, only 2 left!

0

12

Kohler 25 100 29-S

NUT, HEX (AVT)-USE 25 100 38-S
(Superseded to 25 100 38-S)

$3.99

$

Usually ships in 2-5 days

0

13

Kohler 25 086 112-S

SCREW, SET (AVT)-USE 25 086 168-S
(Superseded to 25 086 168-S)

$4.49

$

In Stock, only 2 left!

0

14

Kohler 66 032 05-S

SEAL, VALVE STEM - (#2503214S)
(Superseded to 25 032 14-S)

$11.99

$

In Stock, only 2 left!

0

15

Kohler 12 089 34-S

SPRING, VALVE

$10.99

$

In Stock, only 2 left!

0

16

Kohler 12 173 01-S

RETAINER, VALVE SPRING - USE 25 173 28-S
(Superseded to 25 173 28-S)

$8.49

$

In Stock, Qty 5

0

17

Kohler 12 755 03-S

KIT, RETAINER

$5.99

$

In Stock, only 2 left!

0

18

Kohler 12 468 05-S

WASHER, FLAT 13/32"

$2.49

$

Usually ships in 2-5 days

0

19

Kohler 12 112 16-S

SPACER - DISCONTINUED

$

$

Not available

20

Kohler 20 086 02-S

SCREW, CYLINDER HEAD (M10 X 80)

$3.99

$

In Stock, Qty 17

0

21

Kohler 25 237 14-S

CLAMP, HOSE (KM)-USE 25 237 31-S
(Superseded to 25 237 31-S)

$4.99

$

In Stock, only 2 left!

0

22

Kohler 12 326 30-S

HOSE, BREATHER

$21.99

$

In Stock, only 1 left!

0

23

Kohler M-645016-S

SCREW,FLG THD FRM M6X1.0X16-(#25086397S)
(Superseded to 25 086 397-S)

$3.99

$

In Stock, Qty 15

0

24

Kohler 12 096 47-S

COVER, ROCKER

$18.99

$

In Stock, only 1 left!

0

25

Kohler M-545010-S

SCREW, FLG THD FRM M5X.8X10

$4.49

$

In Stock, only 2 left!

0

26

Kohler 66 018 04-S

RETAINER, REED

$4.99

$

In Stock, Qty 6

0

27

Kohler 12 402 02-S

REED, BREATHER

$3.99

$

In Stock, Qty 8

0

1208616-S

Kohler 12 086 16-S

SCREW - USE 62 086 08-S
(Superseded to 62 086 08-S)

Note: NOT ILLUSTRATED

$5.99

$

In Stock, Qty 5

0

2535714-S

Kohler 25 357 14-S

Lubricant, Camshaft/Lifter (0.25 oz.)

Note: NOT ILLUSTRATED

$2.49

$

In Stock, only 3 left!

0
