CV493-27537 - Kohler Command PRO Engine, Made for John Deere Turf Care, 18hp, 13.4kW Fuel System 8-27-257 Parts Diagram

Command PRO Engine, Made for John Deere Turf Care, 18hp, 13.4kW

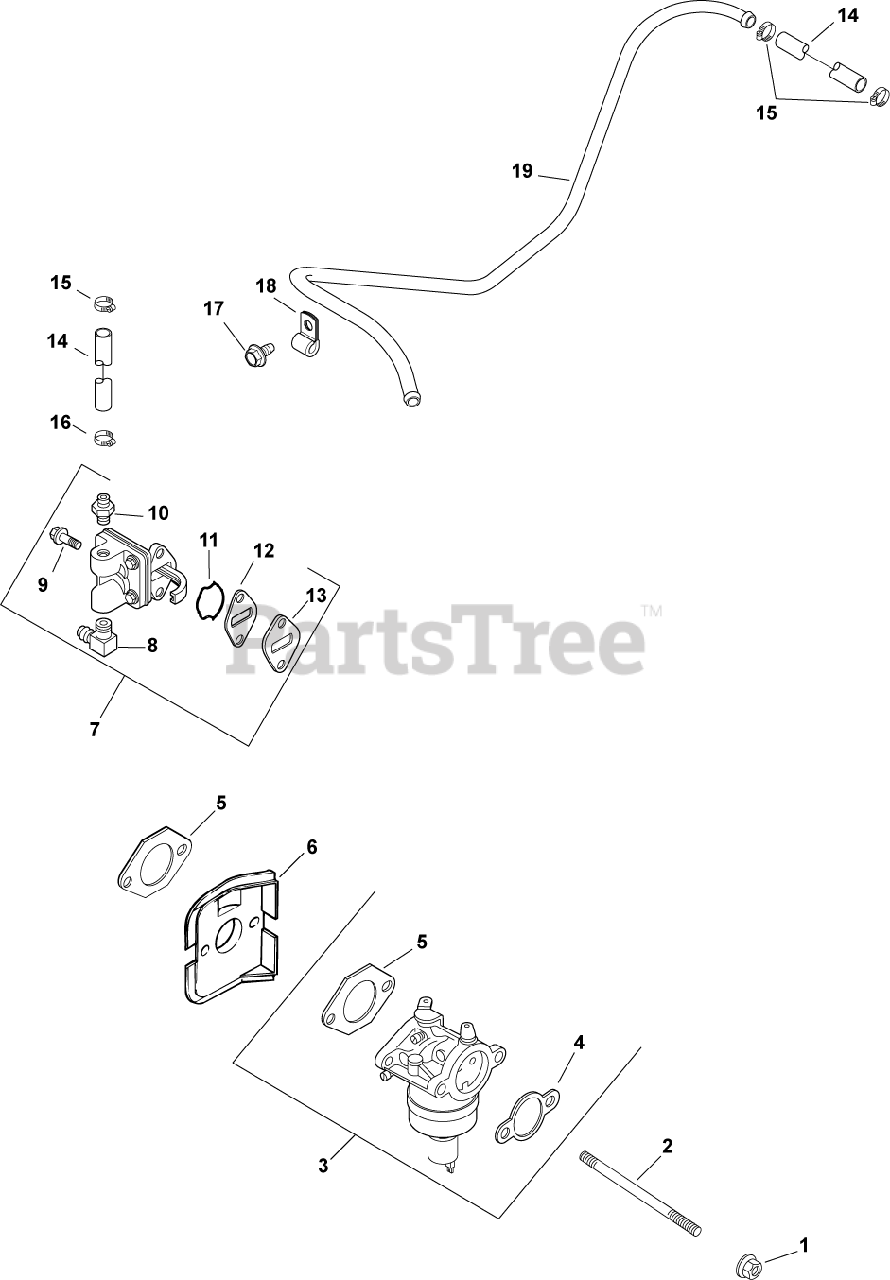

Fuel System 8-27-257 Parts Diagram

  • Title

1

Kohler M-641060-S

NUT, FLG M6X1.0

$4.49

$

In Stock, Qty 9

0

2

Kohler M-629116-S

STUD,M6X1.0X116

$3.49

$

In Stock, only 2 left!

0

3

Kohler 12 853 149-S

KIT, CARBURETOR w/GASKETS

Note: (includes 4,5)

$269.99

$

Usually ships in 2-5 days

0

4

Kohler 12 041 02-S

GASKET, AIR CLEANER BASE

$2.99

$

In Stock, Qty 5

0

5

Kohler 12 041 01-S

GASKET, CARBURETOR

$2.49

$

In Stock, Qty 14

0

6

Kohler 12 265 06-S

DEFLECTOR, HEAT - DISCONTINUED

$

$

Not available

7

Kohler 12 559 02-S

KIT, FUEL PUMP

Note: (includes 8-13 & 25 141 06-S)

$48.99

$

In Stock, Qty 6

0

8

Kohler 12 294 13-S

CONNECTOR, 90 DEG. HOSE

$6.49

$

In Stock, only 1 left!

0

9

Kohler M-645020-S

SCREW,FLG THD FRM M6X1.0X20-(#25086396S)
(Superseded to 25 086 396-S)

$2.49

$

In Stock, only 1 left!

0

10

Kohler 25 294 09-S

KIT, STRAIGHT FITTING

$6.49

$

Usually ships in 2-5 days

0

11

Kohler 25 153 04-S

O-RING, FUEL PUMP

$2.99

$

In Stock, only 2 left!

0

12

Kohler 25 041 10-S

GASKET, FUEL PUMP

$3.49

$

In Stock, only 1 left!

0

13

Kohler 12 112 05-S

SPACER, FUEL PUMP

$7.49

$

In Stock, only 2 left!

0

14

Kohler 25 111 34-S

HOSE,LW PERM.FUEL 24.00"-USE 25 111 81-S
(Superseded to 25 111 81-S)

$17.99

$

In Stock, Qty 6

0

15

Kohler 25 237 14-S

CLAMP, HOSE (KM)-USE 25 237 31-S
(Superseded to 25 237 31-S)

$4.99

$

In Stock, only 3 left!

0

16

Kohler 25 237 08-S

CLAMP, BAND SPRING HOSE-(#2523737S)
(Superseded to 25 237 37-S)

$2.49

$

In Stock, Qty 11

0

17

Kohler M-545010-S

SCREW, FLG THD FRM M5X.8X10

$4.49

$

In Stock, only 2 left!

0

18

Kohler 12 154 01-S

CLIP, TUBE & WIRING (KM)

$2.49

$

In Stock, only 1 left!

0

19

Kohler 12 123 19-S

LINE, FUEL

$16.99

$

In Stock, only 2 left!

0

12755108-S

Kohler 12 755 108-S

KIT, HIGH ALTITUDE (5000 FT)

Note: NOT ILLUSTRATED

$17.99

$

Usually ships in 2-5 days

0

12755109-S

Kohler 12 755 109-S

KIT, HIGH ALTITUDE (4-8,000 FT)

Note: NOT ILLUSTRATED

$

$

Not available

12755110-S

Kohler 12 755 110-S

KIT, REPAIR CHOKE

Note: NOT ILLUSTRATED

$14.99

$

Usually ships in 2-5 days

0

1275702-S

Kohler 12 757 02-S

KIT, REPAIR FLOAT

Note: NOT ILLUSTRATED

$13.99

$

In Stock, only 3 left!

0

1275703-S

Kohler 12 757 03-S

KIT, REPAIR CARBURETOR (PUMP FEED)

Note: NOT ILLUSTRATED

$35.99

$

In Stock, Qty 7

0

1275736-S

Kohler 12 757 36-S

KIT, THROTTLE SHAFT BEARING

$13.99

$

Usually ships in 2-5 days

0

1275737-S

Kohler 12 757 37-S

KIT, REPAIR BOWL REPLACEMENT

Note: NOT ILLUSTRATED

$16.99

$

In Stock, Qty 6

0

2514106-S

Kohler 25 141 06-S

TOOL, INSTALLATION (SNAP RING)

Note: NOT ILLUSTRATED

$2.49

$

Usually ships in 2-5 days

0
