CV493-27537 - Kohler Command PRO Engine, Made for John Deere Turf Care, 18hp, 13.4kW Exhaust System 11-27-146 Parts Diagram

Command PRO Engine, Made for John Deere Turf Care, 18hp, 13.4kW

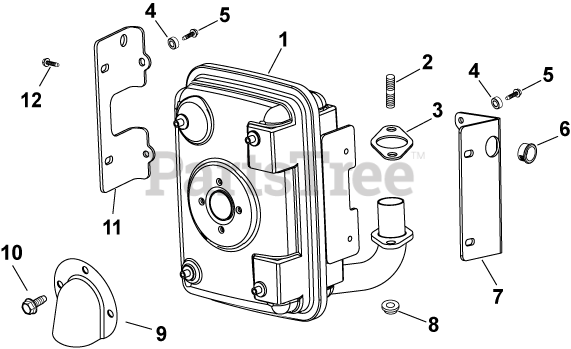

Exhaust System 11-27-146 Parts Diagram

  • Title

1

Kohler 12 068 57-S

MUFFLER - DISCONTINUED

$

$

Not available

2

Kohler 25 072 14-S

STUD, EXHAUST-USE 25 072 24-S
(Superseded to 25 072 24-S)

$3.99

$

In Stock, only 1 left!

0

3

Kohler 12 041 03-S

GASKET, EXHAUST MANIFOLD

$7.49

$

In Stock, Qty 11

0

4

Kohler 12 112 20-S

SPACER

$7.99

$

In Stock, only 1 left!

0

5

Kohler M-545010-S

SCREW, FLG THD FRM M5X.8X10

$4.49

$

In Stock, only 3 left!

0

6

Kohler 12 158 03-S

BUSHING, IGNITION WIRE

$3.99

$

Usually ships in 2-5 days

0

7

Kohler 12 126 97-S

BRACKET, MUFFLER SUPPORT

$67.99

$

Usually ships in 2-5 days

0

8

Kohler M-841080-S

NUT, FLG M8X1.25

$2.49

$

In Stock, only 2 left!

0

9

Kohler 12 265 07-S

DEFLECTOR, EXHAUST

$10.99

$

Usually ships in 2-5 days

0

10

Kohler M-645016-S

SCREW,FLG THD FRM M6X1.0X16-(#25086397S)
(Superseded to 25 086 397-S)

$3.99

$

In Stock, Qty 15

0

11

Kohler 12 126 56-S

BRACKET, MUFFLER

$106.99

$

Usually ships in 2-5 days

0

12

Kohler M-645025-S

SCREW,FLG THD FRM M6X1.0X25-(#25086395S)
(Superseded to 25 086 395-S)

$2.49

$

In Stock, only 2 left!

0

1218902-S

Kohler 12 189 02-S

SPARK ARRESTOR

Note: NOT ILLUSTRATED

$49.99

$

Usually ships in 2-5 days

0
