CV493-27522 - Kohler Command PRO Engine, Made for Bradley, 18hp, 13.4kW Engine Controls 9-27-55 Parts Diagram

Command PRO Engine, Made for Bradley, 18hp, 13.4kW

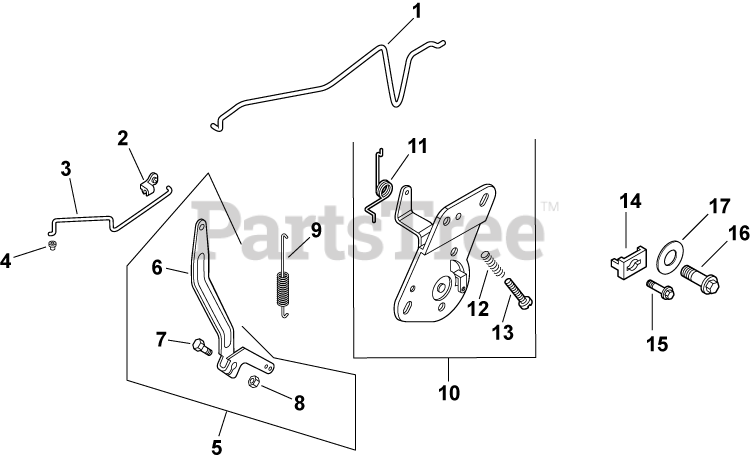

Engine Controls 9-27-55 Parts Diagram

  • Title

1

Kohler 12 079 11-S

LINKAGE, CHOKE - DISCONTINUED

$

$

Not available

2

Kohler 25 158 11-S

BUSHING, THROTTLE LINKAGE

$5.99

$

In Stock, Qty 15

0

3

Kohler 12 079 10-S

LINKAGE, THROTTLE

$4.49

$

In Stock, only 1 left!

0

4

Kohler 25 158 08-S

BUSHING, LINKAGE RETAINING

$5.99

$

In Stock, Qty 20+

0

5

Kohler 12 755 83-S

KIT, GOVERNOR LEVER

Note: (includes 6-8)

$6.49

$

In Stock, only 1 left!

0

6

Kohler 12 090 28-S

LEVER, GOVERNOR

$5.99

$

In Stock, only 1 left!

0

7

Kohler 52 211 04-S

BOLT, RD HD SQ NCK 1/4-20X1"

$4.99

$

Usually ships in 2-5 days

0

8

Kohler 12 100 07-S

NUT, FLANGE 1/4-20

$2.49

$

In Stock, only 3 left!

0

9

Kohler 12 089 19-S

SPRING, GOVERNOR

$

$

Not available

10

Kohler 12 536 01-S

DISCONTINUED - CONTROL, SPEED

Note: (includes 11-13)

$

$

Not available

11

Kohler 12 089 11-S

SPRING, SPEED CONTROL (SHORT)

$2.49

$

In Stock, only 4 left!

0

12

Kohler 12 089 23-S

SPRING

$10.99

$

In Stock, only 1 left!

0

13

Kohler 12 086 39-S

SCREW, PAN HEAD

$2.49

$

Usually ships in 2-5 days

0

14

Kohler 12 237 01-S

CLAMP, CABLE
(Superseded to 25 237 53-S)

$3.49

$

In Stock, Qty 5

0

15

Kohler M-545016-S

SCREW,FLG THD FRM M5X0.8X16-(#25086398S)
(Superseded to 25 086 398-S)

$3.99

$

Usually ships in 2-5 days

0

16

Kohler M-664020-S

SCREW, LBD SKT M6x1.0x20-(#25086403S)
(Superseded to 25 086 403-S)

$2.49

$

In Stock, only 2 left!

0

17

Kohler M-931010-S

WASHER, FLAT 9 MM

$2.49

$

In Stock, only 2 left!

0
