CV490-27507 - Kohler Command PRO Engine, Made for Electrolux Home Products, 17hp, 12.7kW Fuel System 8-27-208 Parts Diagram

Command PRO Engine, Made for Electrolux Home Products, 17hp, 12.7kW

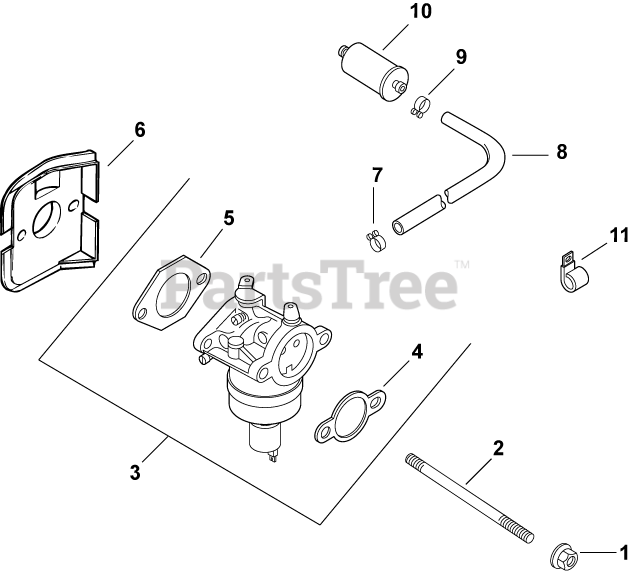

Fuel System 8-27-208 Parts Diagram

  • Title

1

Kohler M-641060-S

NUT, FLG M6X1.0

$4.49

$

In Stock, Qty 9

0

2

Kohler M-629116-S

STUD,M6X1.0X116

$3.49

$

In Stock, only 2 left!

0

3

Kohler 12 853 118-S

KIT, CARBURETOR

Note: (includes 4,5)

$130.99

$

In Stock, only 1 left!

0

4

Kohler 12 041 02-S

GASKET, AIR CLEANER BASE

$2.99

$

In Stock, Qty 5

0

5

Kohler 12 041 01-S

GASKET, CARBURETOR

$2.49

$

In Stock, Qty 14

0

6

Kohler 12 265 06-S

DEFLECTOR, HEAT - DISCONTINUED

$

$

Not available

7

Kohler 25 237 08-S

CLAMP, BAND SPRING HOSE-(#2523737S)
(Superseded to 25 237 37-S)

$2.49

$

In Stock, Qty 11

0

8

Kohler 25 111 34-S

HOSE,LW PERM.FUEL 24.00"-USE 25 111 81-S
(Superseded to 25 111 81-S)

$17.99

$

In Stock, Qty 6

0

9

Kohler 25 237 14-S

CLAMP, HOSE (KM)-USE 25 237 31-S
(Superseded to 25 237 31-S)

$4.99

$

In Stock, only 3 left!

0

10

Kohler 47 154 01-S

CLIP, CABLE

$5.49

$

In Stock, Qty 5

0

11

Kohler 25 050 21-S

FILTR,FUEL 75 MICRON (GRAVTY FEED)

$8.99

$

In Stock, Qty 20+

0

12755108-S

Kohler 12 755 108-S

KIT, HIGH ALTITUDE (5000 FT)

Note: NOT ILLUSTRATED

$17.99

$

Usually ships in 2-5 days

0

12755109-S

Kohler 12 755 109-S

KIT, HIGH ALTITUDE (4-8,000 FT)

Note: NOT ILLUSTRATED

$

$

Not available

12755110-S

Kohler 12 755 110-S

KIT, REPAIR CHOKE

Note: NOT ILLUSTRATED

$14.99

$

Usually ships in 2-5 days

0

1275702-S

Kohler 12 757 02-S

KIT, REPAIR FLOAT

Note: NOT ILLUSTRATED

$13.99

$

In Stock, only 3 left!

0

1275703-S

Kohler 12 757 03-S

KIT, REPAIR CARBURETOR (PUMP FEED)

Note: NOT ILLUSTRATED

$35.99

$

In Stock, Qty 7

0

1275733-S

Kohler 12 757 33-S

KIT, REPAIR SOLENOID

Note: NOT ILLUSTRATED

$135.99

$

In Stock, only 1 left!

0

1275737-S

Kohler 12 757 37-S

KIT, REPAIR BOWL REPLACEMENT

Note: NOT ILLUSTRATED

$16.99

$

In Stock, Qty 6

0

1245403-S

Kohler 12 454 03-S

TIE, CABLE

Note: NOT ILLUSTRATED

$3.49

$

Usually ships in 2-5 days

0

1251837-S

Kohler 12 518 37-S

LEAD

Note: NOT ILLUSTRATED

$5.49

$

Usually ships in 2-5 days

0

2545407-S

Kohler 25 454 07-S

TIE

Note: NOT ILLUSTRATED

$2.49

$

Usually ships in 2-5 days

0

M-561010-S

Kohler M-561010-S

SCREW, THRD FRM M5X0.8X10

Note: NOT ILLUSTRATED

$2.49

$

Usually ships in 2-5 days

0

X-22-11-S

Kohler X-22-11-S

WASHER, INT TOOTH LOCK 1/4"

Note: NOT ILLUSTRATED

$2.49

$

In Stock, only 3 left!

0
