CV490-27507 - Kohler Command PRO Engine, Made for Electrolux Home Products, 17hp, 12.7kW Blower Housing & Baffles 6-27-132 Parts Diagram

Command PRO Engine, Made for Electrolux Home Products, 17hp, 12.7kW

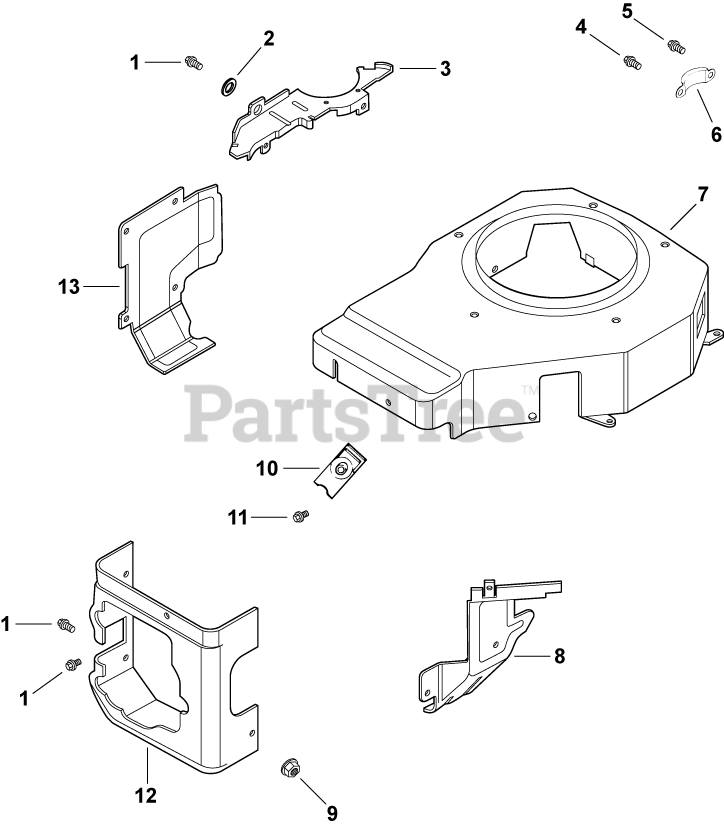

Blower Housing & Baffles 6-27-132 Parts Diagram

  • Title

1

Kohler M-545010-S

SCREW, FLG THD FRM M5X.8X10

$4.49

$

In Stock, only 3 left!

0

2

Kohler 24 468 10-S

WASHER, FLAT 7/32"

$2.49

$

In Stock, only 1 left!

0

3

Kohler 12 146 07-S

PLATE, BACKING

$9.49

$

Usually ships in 2-5 days

0

4

Kohler M-645016-S

SCREW,FLG THD FRM M6X1.0X16-(#25086397S)
(Superseded to 25 086 397-S)

$3.99

$

In Stock, Qty 15

0

5

Kohler M-550010-S

SCREW, HVY FLG M5X.8X10

$3.99

$

In Stock, only 1 left!

0

6

Kohler 24 096 05-S

COVER, PINION

$12.99

$

Usually ships in 2-5 days

0

7

Kohler 12 027 55-S

HOUSING, BLOWER - USE 12 027 96-S
(Superseded to 12 027 96-S)

$

$

Not available

8

Kohler 12 063 18-S

BAFFLE, INTAKE SIDE - DISCONTINUED

$

$

Not available

9

Kohler M-541050-S

NUT, FLG M5X.8

$2.99

$

In Stock, Qty 10

0

10

Kohler 25 154 02-S

CLIP, MOUNTING-USE 25 154 13-S
(Superseded to 25 154 37-S)

$2.49

$

In Stock, Qty 12

0

11

Kohler 12 086 37-S

SCREW, CPTV WASHER

$2.49

$

Usually ships in 2-5 days

0

12

Kohler 12 063 20-S

BAFFLE, CYLINDER HEAD

$

$

Not available

13

Kohler 12 063 19-S

BAFFLE, CYLINDER

$

$

Not available

2511339-S

Kohler 25 113 39-S

DECAL, CLEAR LAMINATE USE 25 113 70-S
(Superseded to 25 113 79-S)

Note: NOT ILLUSTRATED

$2.49

$

In Stock, only 4 left!

0
