CV460-26517 - Kohler Command PRO Engine, Made for EHP/Sears, 16hp, 11.9kW Blower Housing & Baffles 6-27-138 Parts Diagram

Command PRO Engine, Made for EHP/Sears, 16hp, 11.9kW

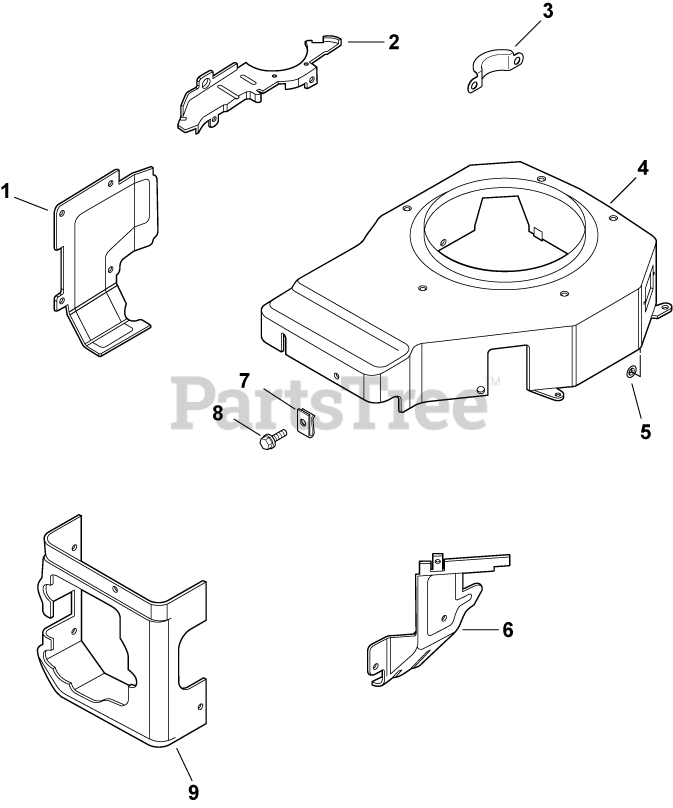

Blower Housing & Baffles 6-27-138 Parts Diagram

  • Title

1

Kohler 12 063 19-S

BAFFLE, CYLINDER

$

$

Not available

2

Kohler 12 146 07-S

PLATE, BACKING

$9.49

$

Usually ships in 2-5 days

0

3

Kohler 24 096 05-S

COVER, PINION

$12.99

$

Usually ships in 2-5 days

0

4

Kohler 12 027 96-S

KIT, BLOWER HOUSING

$

$

Not available

5

Kohler 12 141 01-S

RING, RETAINER

$2.49

$

Usually ships in 2-5 days

0

6

Kohler 12 063 18-S

BAFFLE, INTAKE SIDE - DISCONTINUED

$

$

Not available

7

Kohler 25 154 02-S

CLIP, MOUNTING-USE 25 154 13-S
(Superseded to 25 154 37-S)

$2.49

$

In Stock, Qty 12

0

8

Kohler M-550010-S

SCREW, HVY FLG M5X.8X10

$3.99

$

In Stock, only 1 left!

0

9

Kohler 12 063 20-S

BAFFLE, CYLINDER HEAD

$

$

Not available

1208637-S

Kohler 12 086 37-S

SCREW, CPTV WASHER

Note: NOT ILLUSTRATED

$2.49

$

Usually ships in 2-5 days

0

M-561020-S

Kohler M-561020-S

SCREW, THD FRM FLG 20mm - (#M545020S)
(Superseded to M-545020-S)

Note: NOT ILLUSTRATED

$2.49

$

In Stock, Qty 6

0

2446810-S

Kohler 24 468 10-S

WASHER, FLAT 7/32"

Note: NOT ILLUSTRATED

$2.49

$

In Stock, only 1 left!

0

M-541050-S

Kohler M-541050-S

NUT, FLG M5X.8

Note: NOT ILLUSTRATED

$2.99

$

In Stock, Qty 10

0

M-545010-S

Kohler M-545010-S

SCREW, FLG THD FRM M5X.8X10

Note: NOT ILLUSTRATED

$4.49

$

In Stock, only 2 left!

0

M-645016-S

Kohler M-645016-S

SCREW,FLG THD FRM M6X1.0X16-(#25086397S)
(Superseded to 25 086 397-S)

Note: NOT ILLUSTRATED

$3.99

$

In Stock, Qty 15

0
