CV26-79518 - Kohler Command PRO EFI Engine, Made for Peco, 26hp, 19.4kW Air Intake/Filtration Parts Diagram

Command PRO EFI Engine, Made for Peco, 26hp, 19.4kW

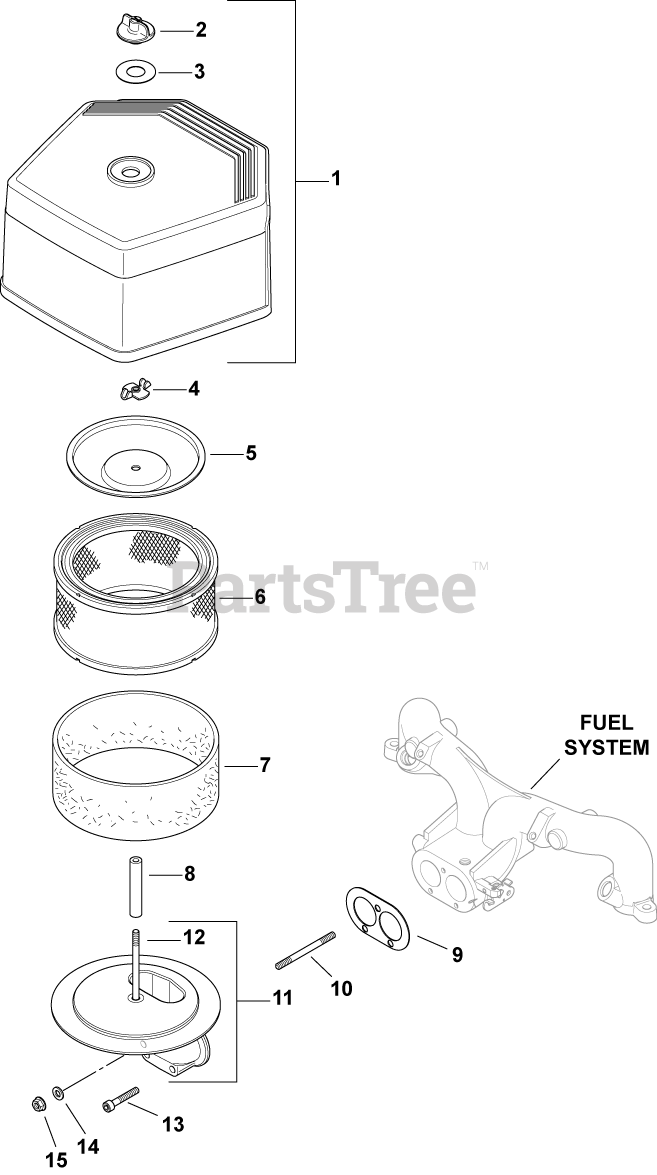

Air Intake/Filtration Parts Diagram

  • Title

1

Kohler 24 743 32-S

KIT, AIR CLEANER CV (WAWB)

Note: (includes 2,3,8,12,15 [qty 2])

$

$

Not available

2

Kohler 25 341 04-S

KNOB, COVER

$7.99

$

In Stock, only 1 left!

0

3

Kohler 24 041 27-S

GASKET, AIR CLEANER COVER KNOB

$2.49

$

In Stock, only 2 left!

0

4

Kohler 12 100 01-S

NUT, WING

$3.99

$

In Stock, Qty 18

0

5

Kohler 52 082 04-S

COVER, INNER AIR CLEANER

$45.99

$

In Stock, only 3 left!

0

6

Kohler 45 083 02-S

ELEMENT, AIR CLEANER - Also available Retail Packaged 45 883 02-S1 Air Filter Kit

$23.99

$

In Stock, Qty 5

0

7

Kohler 45 083 01-S

ELEMENT, PRE-CLEANER

$8.49

$

In Stock, only 2 left!

0

8

Kohler 24 032 04-S

SEAL

$3.49

$

In Stock, only 1 left!

0

9

Kohler 24 041 36-S

GASKET, AIR CLEANER BASE

$5.99

$

In Stock, only 2 left!

0

10

Kohler 24 072 11-S

STUD, M6X1.0X75 - DISCONTINUED

$

$

Not available

11

Kohler 24 054 15-S

ELBOW ASSEMBLY, AIR CLEANER

Note: (includes 12)

$256.99

$

Usually ships in 2-5 days

0

12

Kohler 24 072 06-S

STUD, M6X1.0X93MM

$18.99

$

In Stock, only 2 left!

0

13

Kohler M-644035-S

SCREW, SKT CAP M6X1.0X35

$3.49

$

Usually ships in 2-5 days

0

14

Kohler 25 468 01-S

WASHER

$7.49

$

Usually ships in 2-5 days

0

15

Kohler M-641060-S

NUT, FLG M6X1.0

$4.99

$

In Stock, Qty 6

0
