CV25-69552 - Kohler Command PRO Engine, Made for Ariens, 25hp, 18.61kW Air Intake Group 10-24-109 Parts Diagram

Command PRO Engine, Made for Ariens, 25hp, 18.61kW

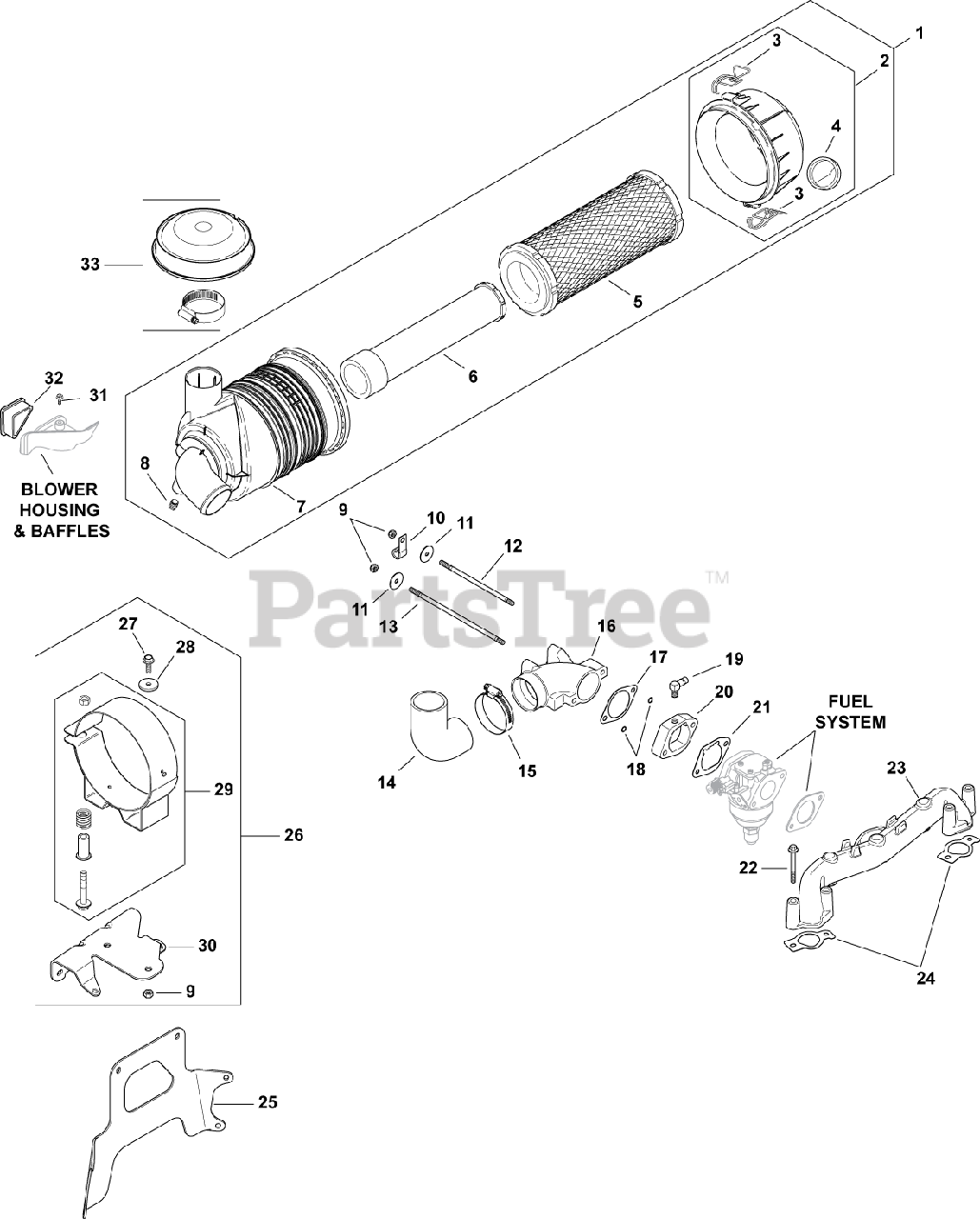

Air Intake Group 10-24-109 Parts Diagram

  • Title

1

Kohler 25 048 11-S

AIR CLNR, CANISTER-USE 25 048 17-S
(Superseded to 25 048 17-S)

Note: (includes 2-8)

$143.99

$

Usually ships in 2-5 days

0

2

Kohler 25 096 06-S

COVER ASSEMBLY, AIR CLEANER

$87.99

$

In Stock, only 1 left!

0

3

Kohler 25 154 05-S

CLIP - USE 62 154 07-S
(Superseded to 62 154 07-S)

$13.99

$

In Stock, Qty 12

0

4

Kohler 24 462 07-S

VALVE, DUST EJECTOR

$21.99

$

In Stock, only 3 left!

0

5

Kohler 25 083 01-S

ELEMENT, AIR FILTER - PRIMARY

$32.99

$

In Stock, Qty 20+

0

6

Kohler 25 083 04-S

ELEMENT, AIR FILTER - SAFETY

$32.99

$

In Stock, Qty 20+

0

7

Kohler 25 081 01-S

HOUSING, HD AIR CLEANER

$140.99

$

In Stock, only 1 left!

0

8

Kohler 25 139 20-S

PLUG, PIPE

$8.99

$

Usually ships in 2-5 days

0

9

Kohler M-647060-S

NUT, LOCK M6X1.0

$2.49

$

In Stock, only 2 left!

0

10

Kohler 47 154 01-S

CLIP, CABLE

$5.49

$

In Stock, only 4 left!

0

11

Kohler 25 468 01-S

WASHER

$5.49

$

Usually ships in 2-5 days

0

12

Kohler M-629140-S

STUD, M6X1.0X140

$13.99

$

Usually ships in 2-5 days

0

13

Kohler 24 072 10-S

STUD, M6X1.0X180

$17.99

$

In Stock, Qty 13

0

14

Kohler 24 326 53-S

HOSE, AIR CLEANER

$13.99

$

Usually ships in 2-5 days

0

15

Kohler 25 237 21-S

CLAMP, HOSE

$7.99

$

In Stock, only 1 left!

0

16

Kohler 24 029 43-S

ADAPTER, ELBOW

$200.99

$

Usually ships in 2-5 days

0

17

Kohler 24 041 44-S

GASKET, AIR CLEANER ADAPTER

$5.99

$

In Stock, only 1 left!

0

18

Kohler 25 153 05-S

O-RING

$2.49

$

Usually ships in 2-5 days

0

19

Kohler 25 155 38-S

CONNECTOR, HOSE

$16.99

$

In Stock, only 3 left!

0

20

Kohler 24 029 57-S

ADAPTER, REMOTE A/C-USE 24 029 87-S
(Superseded to 24 029 87-S)

$116.99

$

Usually ships in 2-5 days

0

21

Kohler 24 041 14-S

GASKET, AIR CLEANER BASE

$2.99

$

In Stock, Qty 8

0

22

Kohler 25 086 84-S

SCREW, FLG M6X1.0X55
(Superseded to 25 086 766-S)

$2.49

$

In Stock, Qty 20+

0

23

Kohler 24 164 06-S

MANIFOLD, INTAKE

$222.99

$

Usually ships in 2-5 days

0

24

Kohler 24 041 01-S

GASKET, INTAKE MANIFOLD USE 24 041 79-S
(Superseded to 24 041 79-S)

$2.99

$

In Stock, Qty 7

0

25

Kohler 24 126 105-S

BRACKET, MAIN SUPPORT-USE 24 126 185-S
(Superseded to 24 126 227-S)

$277.99

$

Usually ships in 2-5 days

0

26

Kohler 24 126 166-S

BRACKET, AIR CLEANER -USE 24 126 186-S
(Superseded to 24 126 186-S)

Note: (includes 9 [qty 2], 27-30)

$176.99

$

Usually ships in 2-5 days

0

27

Kohler M-639016-S

SCREW, FLG M6X1.0X16

$2.49

$

In Stock, Qty 6

0

28

Kohler X-25-73-S

WASHER, FLAT 1/4" (O.D. 1")

$3.99

$

Usually ships in 2-5 days

0

29

Kohler 25 126 02-S

BRACKET, AIR CLEANER-USE 24 126 191-S
(Superseded to 24 126 191-S)

$62.99

$

Usually ships in 2-5 days

0

30

Kohler 24 126 165-S

BRACKET, AIR CLEANER-USE 24 126 184-S
(Superseded to 24 126 184-S)

$92.99

$

Usually ships in 2-5 days

0

31

Kohler 25 086 91-S

SCREW, WSH HD TAP #8-18X1/2"

$3.49

$

Usually ships in 2-5 days

0

32

Kohler 24 096 17-S

COVER, BLOWER HOUSING USE 24 096 160-S
(Superseded to 24 096 160-S)

$4.99

$

In Stock, only 2 left!

0

33

Kohler 25 324 02-S

HOOD, AIR CLEANER (5.25)-USE 25 324 04-S
(Superseded to 25 324 04-S)

$49.99

$

Usually ships in 2-5 days

0

2545404-S

Kohler 25 454 04-S

TIE

Note: NOT ILLUSTRATED

$3.49

$

Usually ships in 2-5 days

0
