CV25-69546 - Kohler Command PRO Engine, Made for Husqvarna, 25hp, 18.61kW Ignition/Electrical 5-24-492 Parts Diagram

Command PRO Engine, Made for Husqvarna, 25hp, 18.61kW

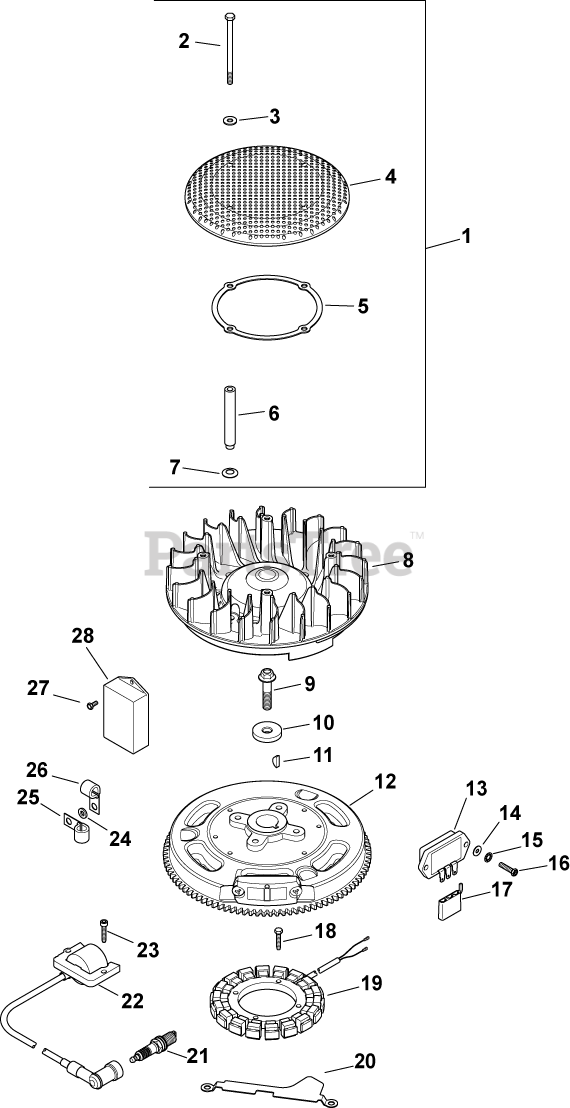

Ignition/Electrical 5-24-492 Parts Diagram

  • Title

1

Kohler 24 755 79-S

KIT, CHOPPER SCREEN

Note: (includes 2-7)

$130.99

$

Usually ships in 2-5 days

0

2

Kohler M-603100-S

SCREW, CAP M6X1.0X99.5

$4.49

$

In Stock, only 4 left!

0

3

Kohler X-25-53-S

WASHER, FLAT 1/4" (O.D. 5/8")

$3.49

$

Usually ships in 2-5 days

0

4

Kohler 24 162 25-S

SCREEN, GRASS-USE 24 162 41-S
(Superseded to 24 162 41-S)

$24.99

$

In Stock, only 1 left!

0

5

Kohler 24 141 06-S

RING, SUPPORT USE 25 141 08-S
(Superseded to 25 141 08-S)

$5.49

$

Usually ships in 2-5 days

0

6

Kohler 24 112 14-S

SPACER

$18.99

$

Usually ships in 2-5 days

0

7

Kohler 24 468 11-S

WASHER, SPRING 10 MM

$2.49

$

Usually ships in 2-5 days

0

8

Kohler 24 157 08-S

FAN (DOMED)-USE 24 157 17-S
(Superseded to 24 157 17-S)

$22.99

$

In Stock, only 1 left!

0

9

Kohler 12 086 14-S

SCREW, FLG M10X1.5X45 - (#25086361S)
(Superseded to 25 086 361-S)

$3.99

$

In Stock, Qty 12

0

10

Kohler 12 468 03-S

WASHER, FLAT 13/32"
(Superseded to 25 468 09-S)

$6.49

$

In Stock, only 2 left!

0

11

Kohler X-42-15-S

KEY, 3/16" X 5/8"

$2.99

$

In Stock, Qty 6

0

12

Kohler 24 025 14-S

FLYWHEEL, PAINTED-USE 24 025 57-S
(Superseded to 24 025 57-S)

$372.99

$

Usually ships in 2-5 days

0

13

Kohler 25 403 03-S

USE 41 403 09-S REG/RECT
(Superseded to 41 403 09-S)

$

$

Not available

14

Kohler X-25-92-S

WASHER, FLAT 3/16"

$2.49

$

In Stock, only 2 left!

0

15

Kohler X-22-11-S

WASHER, INT TOOTH LOCK 1/4"

$2.49

$

In Stock, only 3 left!

0

16

Kohler 236602-S

CONNECTOR, BODY (KM)-USE 25 155 41-S
(Superseded to 25 155 41-S)

$24.99

$

In Stock, only 1 left!

0

17

Kohler 24 086 18-S

SCREW, PHL HD #11-16X7/8"

$2.49

$

Usually ships in 2-5 days

0

18

Kohler M-548025-S

SCREW, M5X0.8X25 - (#25086402S)
(Superseded to 25 086 402-S)

$2.49

$

In Stock, only 2 left!

0

19

Kohler 237878-S

KIT, 15 / 20 AMP STATOR

$149.99

$

In Stock, Qty 8

0

20

Kohler 24 126 71-S

BRACKET, STATOR WIRE-USE 24 126 139-S
(Superseded to 24 126 139-S)

$15.99

$

Usually ships in 2-5 days

0

21

Kohler 12 132 06-S

USE 25 132 12-S SPARK PLUG
(Superseded to 25 132 12-S)

$20.99

$

Usually ships in 2-5 days

0

22

Kohler 24 584 15-S

USE 24 584 36-S MODULE
(Superseded to 24 584 36-S)

$102.99

$

In Stock, only 1 left!

0

23

Kohler M-561025-S

SCREW, SKT THD FRM M5X0.8X25

$2.49

$

Usually ships in 2-5 days

0

24

Kohler X-25-63-S

WASHER, FLAT 1/4" (O.D. 1/2")

$2.49

$

In Stock, only 3 left!

0

25

Kohler 47 154 01-S

CLIP, CABLE

$5.49

$

In Stock, only 4 left!

0

26

Kohler 48 154 02-S

CLIP

$16.99

$

Usually ships in 2-5 days

0

27

Kohler M-448010-S

SCREW, THD FRM M4X0.7X10

$2.49

$

Usually ships in 2-5 days

0

28

Kohler 24 584 09-S

MODULE, SPEED ADVANCE

$

$

Not available

2551812-S

Kohler 25 518 12-S

LEAD - DISCONTINUED

Note: NOT ILLUSTRATED

$

$

Not available

2417638-S

Kohler 24 176 38-S

HARNESS, WIRING USE 24 176 98-S
(Superseded to 24 176 98-S)

Note: NOT ILLUSTRATED

$62.99

$

In Stock, only 1 left!

0

2545401-S

Kohler 25 454 01-S

USE 25 454 05-S WIRE TIE
(Superseded to 25 454 05-S)

Note: NOT ILLUSTRATED

$2.49

$

In Stock, only 2 left!

0

2545403-S

Kohler 25 454 03-S

TIE, WIRE

Note: NOT ILLUSTRATED

$2.49

$

Usually ships in 2-5 days

0
