CV25-69532 - Kohler Command PRO Engine, Made for Ferris Industries, 25hp, 18.61kW Fuel System 8-24-86 Parts Diagram

Command PRO Engine, Made for Ferris Industries, 25hp, 18.61kW

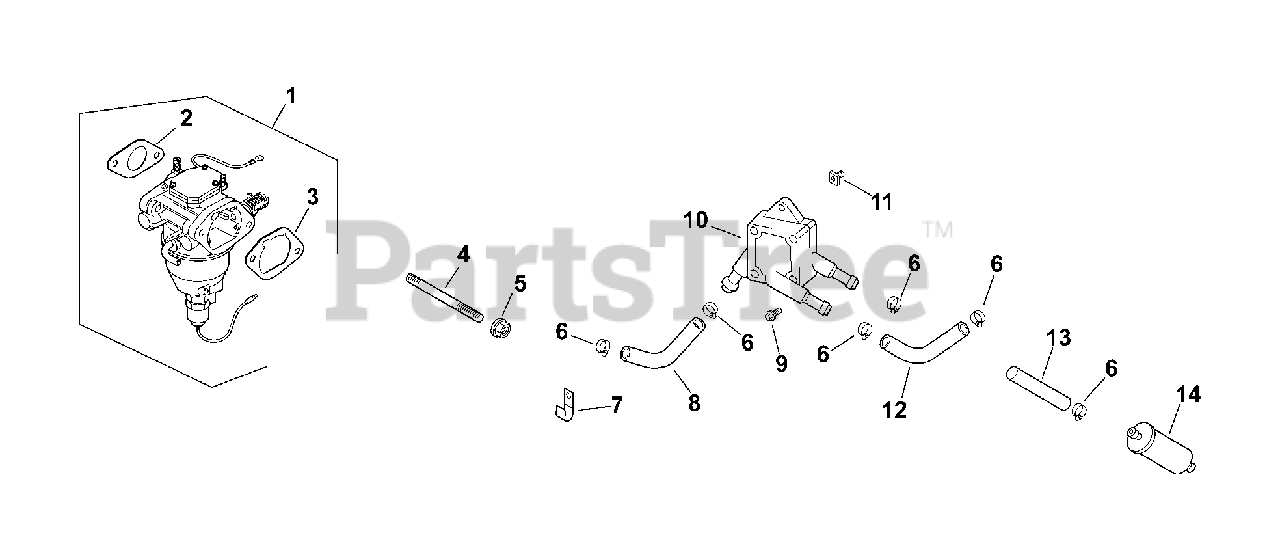

Fuel System 8-24-86 Parts Diagram

  • Title

1

Kohler 24 853 26-S

KIT, CARBURETOR W/GASKET-NIKF

Note: (Includes 2,3) See part info for service details

$827.99

$

Usually ships in 2-5 days

0

2

Kohler 24 041 15-S

GASKET, CARBURETOR

$15.99

$

In Stock, only 1 left!

0

3

Kohler 24 041 14-S

GASKET, AIR CLEANER BASE

$2.99

$

In Stock, Qty 9

0

4

Kohler M-629128-S

STUD,M6X1.0X128

$13.99

$

Usually ships in 2-5 days

0

5

Kohler M-641060-S

NUT, FLG M6X1.0

$4.49

$

In Stock, Qty 9

0

6

Kohler 25 237 14-S

CLAMP, HOSE (KM)-USE 25 237 31-S
(Superseded to 25 237 31-S)

$4.99

$

In Stock, only 3 left!

0

7

Kohler 47 154 01-S

CLIP, CABLE

$5.49

$

In Stock, Qty 5

0

8

Kohler 52 353 22-S

LINE, FLEXIBLE FUEL 12.3"-USE 25 111 81-
(Superseded to 25 111 81-S)

$17.99

$

In Stock, Qty 6

0

9

Kohler 24 086 12-S

SCREW, TAP M6X1.7X18

$

$

Not available

10

Kohler 24 393 16-S

PUMP, FUEL

$32.99

$

In Stock, Qty 12

0

11

Kohler 24 100 01-S

NUT, PLASTIC (KM)-USE 25 100 37-S
(Superseded to 25 100 37-S)

$2.49

$

In Stock, Qty 9

0

12

Kohler 24 353 12-S

LINE, FUEL 11"

$3.99

$

Usually ships in 2-5 days

0

13

Kohler 25 353 15-S

LINE FLEXBLE FUEL (3.5" x.25") -USE 25 1
(Superseded to 25 111 81-S)

$17.99

$

In Stock, Qty 6

0

14

Kohler 25 050 08-S

USE 25 050 22-S FUEL FILTER
(Superseded to 25 050 22-S)

$8.99

$

In Stock, Qty 20+

0

2475718-S

Kohler 24 757 18-S

KIT, CARBURETOR REPAIR

Note: NOT ILLUSTRATED

$79.99

$

In Stock, only 2 left!

0

2475719-S

Kohler 24 757 19-S

KIT, REPAIR SERVICE CHOKE

Note: NOT ILLUSTRATED

$153.99

$

In Stock, only 1 left!

0

2475720-S

Kohler 24 757 20-S

KIT, REPAIR SERVICE GASKET

Note: NOT ILLUSTRATED

$62.99

$

In Stock, only 1 left!

0

2475721-S

Kohler 24 757 21-S

KIT, ACC PUMP W/GASKETS

Note: NOT ILLUSTRATED

$120.99

$

In Stock, only 1 left!

0

2475722-S

Kohler 24 757 22-S

KIT, REPAIR SOLENOID VALVE

Note: NOT ILLUSTRATED

$217.99

$

In Stock, only 2 left!

0
