CV25-69519 - Kohler Command PRO Engine, Made for Las Tec, 25hp, 18.61kW Head/Valve/Breather 4-24-25 Parts Diagram

Command PRO Engine, Made for Las Tec, 25hp, 18.61kW

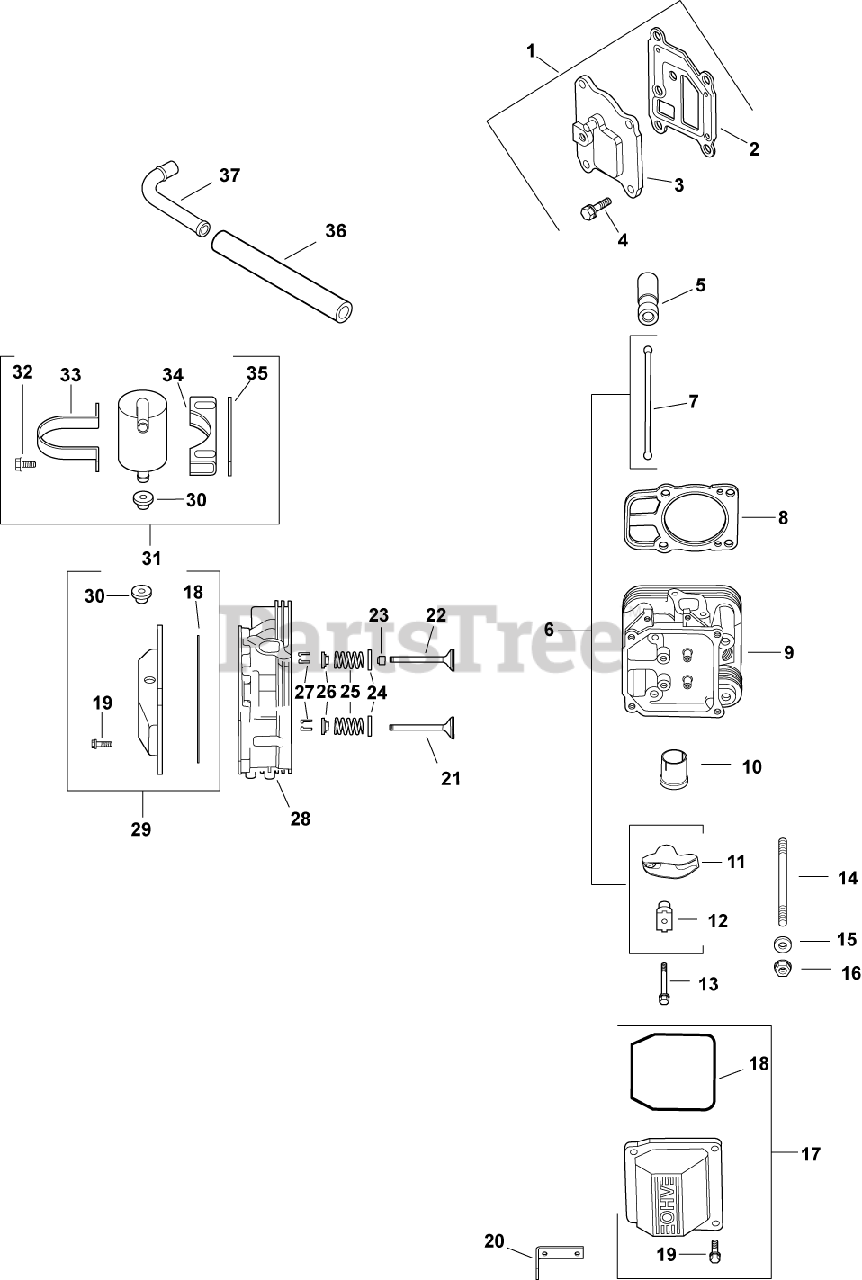

Head/Valve/Breather 4-24-25 Parts Diagram

  • Title

1

Kohler 24 033 03-S

KIT, BREATHER COVER W/GASKET

Note: (includes 2-4)

$32.99

$

In Stock, only 1 left!

0

2

Kohler 24 041 51-S

GASKET, BREATHER-USE 24 041 67-S
(Superseded to 24 041 67-S)

$13.99

$

In Stock, Qty 9

0

3

Kohler 24 096 87-S

COVER, BREATHER -USE 24 096 125-S
(Superseded to 24 033 03-S)

$32.99

$

In Stock, only 1 left!

0

4

Kohler M-645020-S

SCREW,FLG THD FRM M6X1.0X20-(#25086396S)
(Superseded to 25 086 396-S)

$2.49

$

In Stock, only 1 left!

0

5

Kohler 25 351 04-S

LIFTER, HYDRAULIC VALVE-USE 25 351 10-S
(Superseded to 25 351 11-S)

$23.99

$

In Stock, only 4 left!

0

6

Kohler 24 755 66-S

KIT, VALVE TRAIN

Note: (includes 7,11,12)

$45.99

$

In Stock, only 3 left!

0

7

Kohler 24 411 05-S

ROD, PUSH

$5.49

$

In Stock, Qty 9

0

8

Kohler 24 841 03-S

CYL HEAD GASKET KIT-USE 24 841 04-S
(Superseded to 24 841 04-S)

$45.99

$

In Stock, Qty 20+

0

9

Kohler 24 318 72-S

HEAD, ASSEM CYLINDER #2 -USE 24 318 116-
(Superseded to 24 818 06-S)

$239.99

$

Usually ships in 2-5 days

0

10

Kohler 24 605 01-S

LINER, EXHAUST PORT-USE 24 605 07-S
(Superseded to 24 605 07-S)

$17.99

$

In Stock, only 2 left!

0

11

Kohler 25 186 01-S

ARM, ROCKER

$12.99

$

In Stock, only 2 left!

0

12

Kohler 24 599 02-S

PIVOT, ROCKER ARM

$2.49

$

In Stock, Qty 8

0

13

Kohler M-640034-S

SCREW, FLG M6X1.0X34

$2.49

$

In Stock, Qty 18

0

14

Kohler 24 072 09-S

STUD, M8X1.25

$6.49

$

In Stock, only 4 left!

0

15

Kohler 24 468 16-S

WASHER, FLAT 8.6 MM

$2.49

$

Usually ships in 2-5 days

0

16

Kohler 24 100 10-S

NUT, FLG M8X1.25

$4.49

$

Usually ships in 2-5 days

0

17

Kohler 24 755 141-S

KIT, VALVE COVER-PLAIN

Note: (includes 18,19)

$35.99

$

In Stock, only 2 left!

0

18

Kohler 24 153 28-S

O-RING (YELLOW) -USE 24 153 30-S
(Superseded to 25 153 24-S)

$10.99

$

In Stock, Qty 20+

0

19

Kohler M-651030-S

SCREW, FLG M6X1.0X30

$

$

Not available

20

Kohler 24 445 01-S

STRAP, LIFTING-USE 25 445 03-S
(Superseded to 25 445 03-S)

$

$

Not available

21

Kohler 24 016 01-S

VALVE, EXHAUST (STD) - USE 32 016 01-S
(Superseded to 32 016 01-S)

$15.99

$

In Stock, only 4 left!

0

2401602-S

Kohler 24 016 02-S

VALVE, EXHAUST (.25)
(Superseded to 32 016 02-S)

$15.99

$

In Stock, only 3 left!

0

22

Kohler 24 017 01-S

VALVE, INTAKE (STD)

$30.99

$

In Stock, Qty 17

0

2401702-S

Kohler 24 017 02-S

VALVE, INTAKE (.25)

$

$

Not available

23

Kohler 66 032 05-S

SEAL, VALVE STEM - (#2503214S)
(Superseded to 25 032 14-S)

$11.99

$

In Stock, Qty 8

0

24

Kohler 235011-S

RETAINER, SPRING

$6.49

$

In Stock, only 2 left!

0

25

Kohler 24 089 02-S

SPRING, VALVE

$7.99

$

In Stock, only 2 left!

0

26

Kohler 12 173 01-S

RETAINER, VALVE SPRING - USE 25 173 28-S
(Superseded to 25 173 28-S)

$8.49

$

In Stock, Qty 5

0

27

Kohler 12 755 03-S

KIT, RETAINER

$5.99

$

In Stock, only 2 left!

0

28

Kohler 24 318 69-S

HEAD, ASSEM CYLINDER #1 -USE 24 318 108-
(Superseded to 24 818 05-S)

$239.99

$

Usually ships in 2-5 days

0

29

Kohler 24 755 142-S

KIT, VALVE COVER

Note: (includes 18,19,30)

$38.99

$

In Stock, only 1 left!

0

30

Kohler 25 313 03-S

GROMMET, RUBBER

$11.99

$

In Stock, only 3 left!

0

31

Kohler 24 755 57-S

KIT, BREATHR SEPARATR-(#24755241S)
(Superseded to 24 755 241-S)

Note: (includes 30,32-35)

$90.99

$

In Stock, Qty 7

0

32

Kohler M-545016-S

SCREW,FLG THD FRM M5X0.8X16-(#25086398S)
(Superseded to 25 086 398-S)

$3.99

$

Usually ships in 2-5 days

0

33

Kohler 24 445 02-S

STRAP, BREATHER - USE 24 755 241-S
(Superseded to 24 755 241-S)

$90.99

$

In Stock, Qty 7

0

34

Kohler 24 126 44-S

BRACKET, BREATHER SEPARATOR

$5.49

$

Usually ships in 2-5 days

0

35

Kohler 24 112 12-S

SPACER
(Superseded to 24 755 241-S)

$90.99

$

In Stock, Qty 7

0

36

Kohler 24 326 03-S

HOSE, BREATHER (WAWB)-USE 24 326 63-S
(Superseded to 24 326 63-S)

$6.99

$

In Stock, only 2 left!

0

37

Kohler 24 294 01-S

FITTING

$24.99

$

Usually ships in 2-5 days

0

24755147-S

Kohler 24 755 147-S

KIT, CYLINDER HEAD HARDWARE

Note: NOT ILLUSTRATED (SERVICES 1 HEAD. QUANTITIES LISTED ARE FOR BOTH HEADS) (INCLUDES 7,11-13,21-27)

$96.99

$

In Stock, only 3 left!

0
