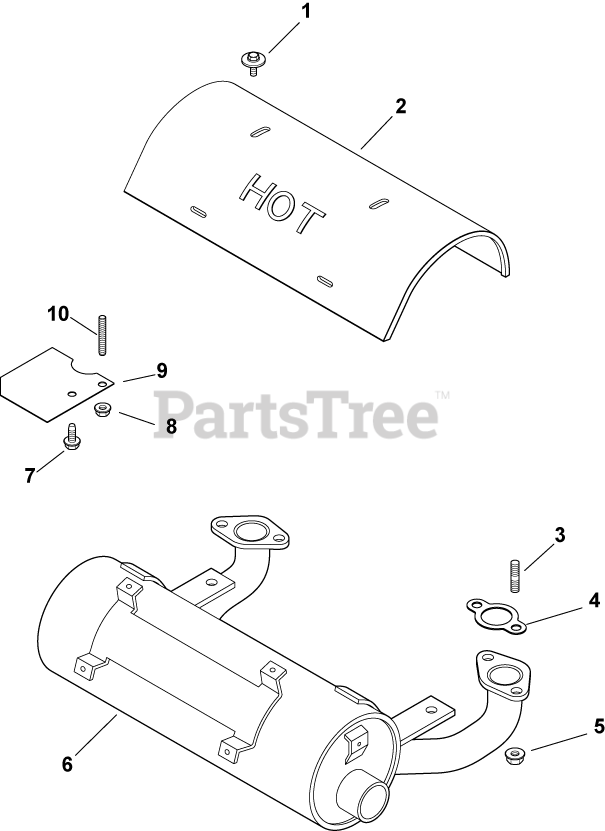

CV25-69519 - Kohler Command PRO Engine, Made for Las Tec, 25hp, 18.61kW Exhaust 11-24-66 Parts Diagram

Command PRO Engine, Made for Las Tec, 25hp, 18.61kW

Exhaust 11-24-66 Parts Diagram

  • Title

1

Kohler 25 086 40-S

SCREW, SEMS DRILL #8-18X1/2"

$3.49

$

Usually ships in 2-5 days

0

2

Kohler 24 281 09-S

DUCT, HEAT SHIELD-USE 24 281 14-S
(Superseded to 24 281 14-S)

$91.99

$

Usually ships in 2-5 days

0

3

Kohler 25 072 04-S

STUD, EXHAUST (KM)-USE 25 072 24-S
(Superseded to 25 072 24-S)

$3.99

$

In Stock, only 1 left!

0

4

Kohler 24 041 49-S

GASKET, EXHAUST
(Superseded to 25 041 17-S)

$2.99

$

In Stock, Qty 20+

0

5

Kohler M-841080-S

NUT, FLG M8X1.25

$2.49

$

In Stock, only 2 left!

0

6

Kohler 24 068 25-S

MUFFLER

$

$

Not available

7

Kohler M-645016-S

SCREW,FLG THD FRM M6X1.0X16-(#25086397S)
(Superseded to 25 086 397-S)

$3.99

$

In Stock, Qty 15

0

8

Kohler M-641060-S

NUT, FLG M6X1.0

$4.49

$

In Stock, Qty 11

0

9

Kohler 24 265 09-S

DEFLECTOR, HEAT

$14.99

$

In Stock, only 1 left!

0

10

Kohler 24 072 08-S

STUD, M6X1.0X36

$3.99

$

Usually ships in 2-5 days

0
