CV25-69519 - Kohler Command PRO Engine, Made for Las Tec, 25hp, 18.61kW Crankcase 2-24-85 Parts Diagram

Command PRO Engine, Made for Las Tec, 25hp, 18.61kW

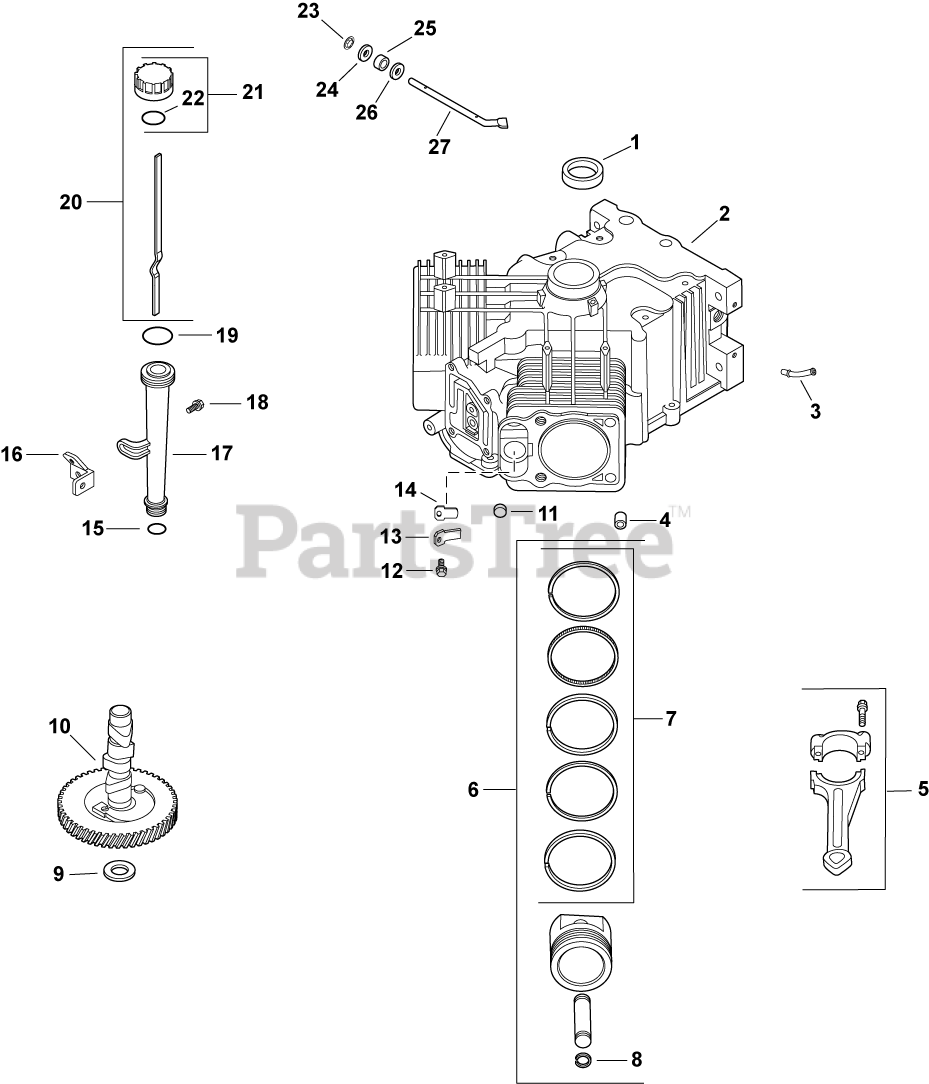

Crankcase 2-24-85 Parts Diagram

  • Title

1

Kohler 24 032 19-S

SEAL, OIL (HELIX LIP)

$7.49

$

In Stock, Qty 20+

0

2

CRANKCASE

Note: USE:SHORTBLOCK OR MINI BLOCK

$

$

Not available

3

Kohler 24 294 13-S

FITTING

$11.99

$

Usually ships in 2-5 days

0

4

Kohler 24 380 16-S

PIN, LOCATING

$4.49

$

In Stock, only 3 left!

0

5

Kohler 24 067 24-S

ROD, CONNECTING ASSEMBLY-USE 24 067 28-S
(Superseded to 25 067 04-S)

$59.99

$

In Stock, Qty 6

0

2406725-S

Kohler 24 067 25-S

ROD ASSY,CONNECT .25 U/S-USE 24 067 29-S
(Superseded to 25 067 05-S)

$59.99

$

In Stock, only 1 left!

0

6

Kohler 24 874 06-S

PISTON W/RINGS (STYLE A)(STD) USE 25 874 01-S
(Superseded to 25 874 13-S)

Note: (INCLUDES 7,8)

$270.99

$

In Stock, only 2 left!

0

7

Kohler 24 108 04-S

RING SET(STD)STYLE A-1.5mm Tp RING THICK
(Superseded to 24 108 14-S)

$

$

Not available

8

Kohler 24 018 01-S

RETAINER, PISTON PIN

$2.99

$

In Stock, Qty 7

0

9

Kohler 12 422 07-S

SHIM, CAMSHAFT (WHITE .028")

$4.49

$

Usually ships in 2-5 days

0

1242208-S

Kohler 12 422 08-S

SHIM, CAMSHAFT (BLUE .03")

$2.49

$

In Stock, only 2 left!

0

1242209-S

Kohler 12 422 09-S

SHIM, CAMSHAFT (RED .032")

$2.49

$

In Stock, only 1 left!

0

1242210-S

Kohler 12 422 10-S

SHIM, CAMSHAFT (YELLOW .034")

$2.49

$

In Stock, only 1 left!

0

1242211-S

Kohler 12 422 11-S

SHIM, CAMSHAFT (GREEN .036")

$2.49

$

Usually ships in 2-5 days

0

1242212-S

Kohler 12 422 12-S

SHIM, CAMSHAFT (GRAY .038")

$2.99

$

Usually ships in 2-5 days

0

1242213-S

Kohler 12 422 13-S

SHIM, CAMSHAFT (BLACK .04")

$2.99

$

Usually ships in 2-5 days

0

10

Kohler 24 012 10-S

KIT, CAMSHAFT
(Superseded to 24 012 23-S)

Note: (includes 25 357 14-S)

$138.99

$

Usually ships in 2-5 days

0

11

Kohler 52 139 09-S

PLUG, CUP

$4.99

$

In Stock, only 2 left!

0

12

Kohler M-545010-S

SCREW, FLG THD FRM M5X.8X10

$4.49

$

In Stock, only 2 left!

0

13

Kohler 24 018 04-S

RETAINER, BREATHER REED

$2.49

$

In Stock, only 2 left!

0

14

Kohler 24 402 05-S

REED, BREATHER
(Superseded to 24 402 07-S)

$3.99

$

In Stock, Qty 8

0

15

Kohler 12 153 01-S

O-RING, LOWER OIL FILL TUBE

$4.99

$

In Stock, Qty 17

0

16

Kohler 24 126 19-S

BRACKET, OIL FILL TUBE USE 24 126 243-S
(Superseded to 24 126 246-S)

$9.49

$

Usually ships in 2-5 days

0

17

Kohler 12 123 04-S

TUBE, OIL FILL USE 25 123 07-S
(Superseded to 25 123 07-S)

$16.99

$

In Stock, only 1 left!

0

18

Kohler M-545016-S

SCREW,FLG THD FRM M5X0.8X16-(#25086398S)
(Superseded to 25 086 398-S)

$3.99

$

Usually ships in 2-5 days

0

19

Kohler 12 153 02-S

O-RING, UPPER OIL FILL TUBE

$2.49

$

In Stock, Qty 8

0

20

Kohler 24 038 04-S

DIPSTICK, ASSY

Note: (INCLUDES 21,22)

$19.99

$

In Stock, only 1 left!

0

21

Kohler 25 755 13-S

KIT, OIL FILL CAP (BLACK)

Note: (INCLUDES 22)

$13.99

$

In Stock, only 1 left!

0

22

Kohler 25 153 02-S

O-RING, DIPSTICK

$2.49

$

In Stock, only 1 left!

0

23

Kohler 24 018 09-S

RETAINER, RING

$2.49

$

Usually ships in 2-5 days

0

24

Kohler M-931010-S

WASHER, FLAT 9 MM

$2.49

$

In Stock, only 2 left!

0

25

Kohler 28 032 09-S

SEAL, GOVERNOR CROSS SHAFT

$3.49

$

In Stock, Qty 7

0

26

Kohler 24 468 15-S

WASHER, FLAT 11/32"

$2.49

$

In Stock, Qty 5

0

27

Kohler 24 144 38-S

SHAFT, GOVERNOR CROSS
(Superseded to 24 144 39-S)

$41.99

$

Usually ships in 2-5 days

0

2535714-S

Kohler 25 357 14-S

Lubricant, Camshaft/Lifter (0.25 oz.)

Note: NOT ILLUSTRATED

$2.49

$

In Stock, only 3 left!

0
