CV25-69512 - Kohler Command PRO Engine, Made for Ariens, 25hp, 18.61kW Blower Housing & Baffles 6-24-157 CV18-750 Parts Diagram

Command PRO Engine, Made for Ariens, 25hp, 18.61kW

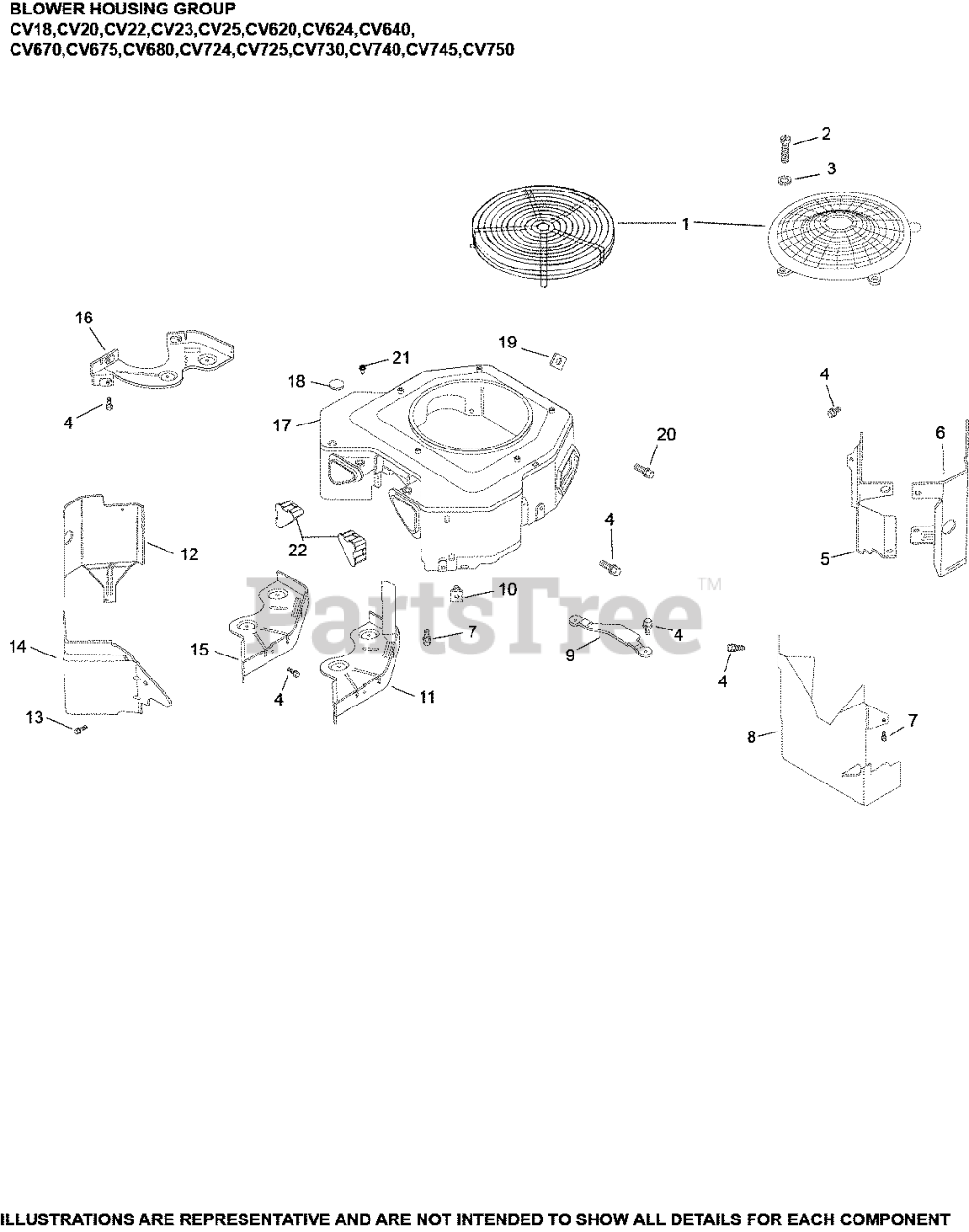

Blower Housing & Baffles 6-24-157 CV18-750 Parts Diagram

  • Title

4

Kohler 25 086 397-S

SCREW, THREAD FORMING

$3.99

$

In Stock, Qty 15

0

5

Kohler 24 063 93-S

BAFFLE, VALLEY #1 CYLINDER USE 24 063 114-S
(Superseded to 24 063 114-S)

$6.49

$

In Stock, only 1 left!

0

6

Kohler 24 063 88-S

KIT, CYL BAFFEL #2 SIDE

$28.99

$

Usually ships in 2-5 days

0

12

Kohler 24 063 85-S

KIT, CYL BAFFEL #1 SIDE

$17.99

$

In Stock, only 1 left!

0

13

Kohler 25 086 400-S

SCREW, THREAD FORMING

$2.49

$

In Stock, only 2 left!

0

14

Kohler 24 063 94-S

BAFFLE, VALLEY #2 CYLINDER

$9.49

$

Usually ships in 2-5 days

0

15

Kohler 24 146 59-S

KIT, BACKING PLATE

$15.99

$

In Stock, only 2 left!

0

17

Kohler 24 027 449-S

HOUSING, BLOWER

$82.99

$

Usually ships in 2-5 days

0

22

Kohler 24 096 17-S

COVER, BLOWER HOUSING USE 24 096 160-S
(Superseded to 24 096 160-S)

$4.99

$

In Stock, only 2 left!

0

25086396-S

Kohler 25 086 396-S

SCREW, THREAD FORMING

Note: NOT ILLUSTRATED

$2.49

$

In Stock, only 1 left!

0

25086426-S

Kohler 25 086 426-S

SCREW, THREAD FORMING

Note: NOT ILLUSTRATED

$2.49

$

In Stock, Qty 15

0

25086398-S

Kohler 25 086 398-S

SCREW, THREAD FORMING

Note: NOT ILLUSTRATED

$3.99

$

Usually ships in 2-5 days

0

2411209-S

Kohler 24 112 09-S

SPACER USE 25 112 30-S
(Superseded to 25 112 30-S)

Note: NOT ILLUSTRATED

$4.49

$

In Stock, only 1 left!

0

2511215-S

Kohler 25 112 15-S

SPACER .406 X .625 X .344

Note: NOT ILLUSTRATED

$7.99

$

Usually ships in 2-5 days

0

2475594-S

Kohler 24 755 94-S

KIT, GUARD

Note: NOT ILLUSTRATED

$86.99

$

In Stock, only 1 left!

0

2433201-S

Kohler 24 332 01-S

INSERT, THREADED USE 25 332 19-S
(Superseded to 25 332 19-S)

Note: NOT ILLUSTRATED

$3.49

$

In Stock, Qty 5

0

25086160-S

Kohler 25 086 160-S

SCREW, SEMS

Note: NOT ILLUSTRATED

$2.99

$

In Stock, Qty 14

0
