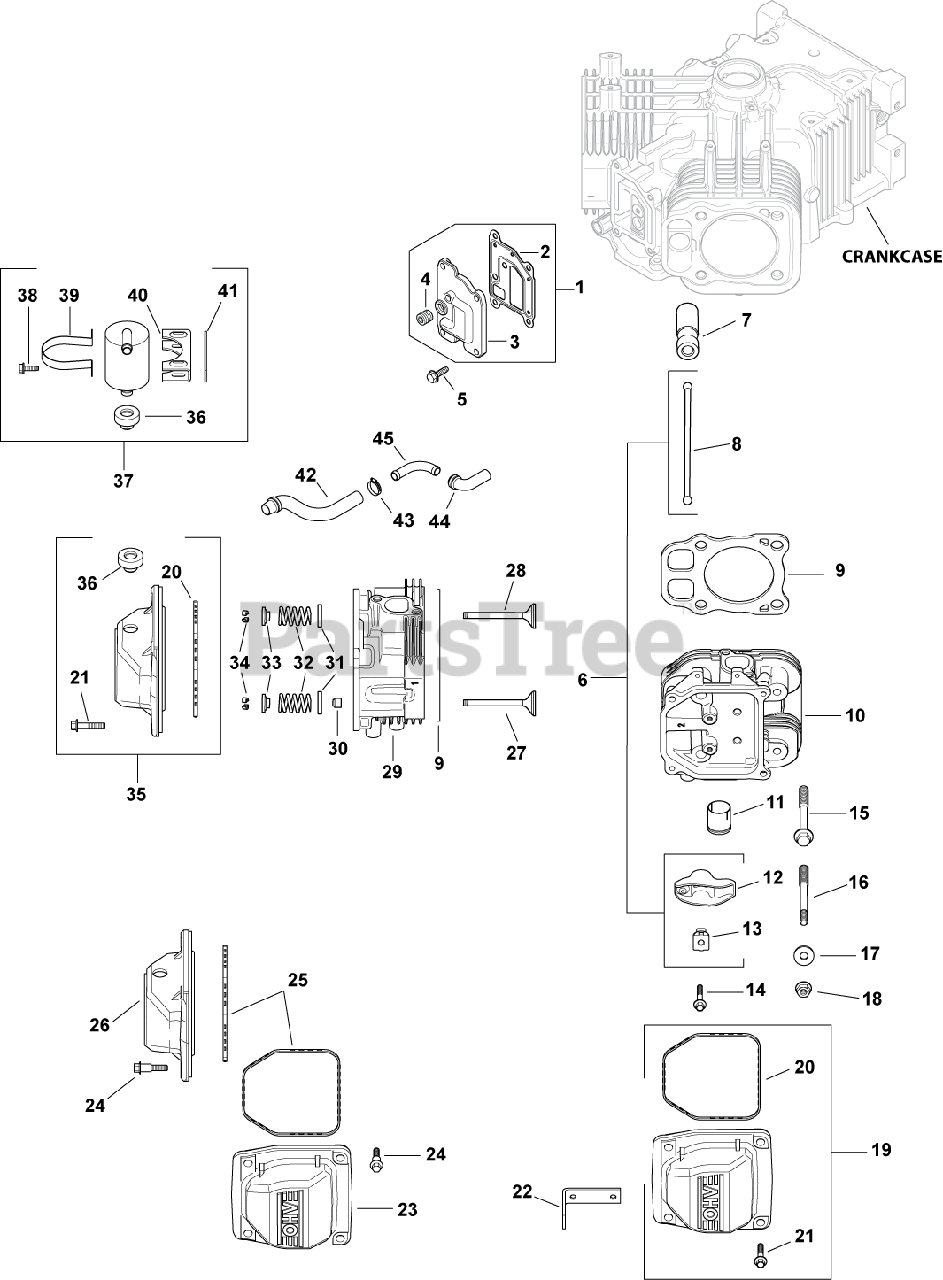

Kohler CV25-69511 - Kohler Command PRO Engine, Made for Electrolux Home Products, 25hp, 18.61kW Head/Valve/Breather 4-24-27 Parts Lookup with Diagrams

1

Kohler 24 033 03-S

KIT, BREATHER COVER W/GASKET

Note: (includes 2-4)

$32.99

$

In Stock, only 1 left!

2

Kohler 24 041 51-S

GASKET, BREATHER-USE 24 041 67-S

(Superseded to 24 041 67-S) 

$13.99

$

In Stock, Qty 9

3

Kohler 24 096 87-S

COVER, BREATHER -USE 24 096 125-S

(Superseded to 24 033 03-S) 

$32.99

$

In Stock, only 1 left!

4

Kohler 25 139 60-S

PLUG, CTSK PIPE 1/8"

$3.49

$

In Stock, only 2 left!

5

Kohler M-645020-S

SCREW,FLG THD FRM M6X1.0X20-(#25086396S)

(Superseded to 25 086 396-S) 

$2.49

$

In Stock, only 1 left!

6

Kohler 24 755 66-S

KIT, VALVE TRAIN

Note: (includes 8, 12, 13)

$45.99

$

In Stock, only 3 left!

7

Kohler 25 351 04-S

LIFTER, HYDRAULIC VALVE-USE 25 351 10-S

(Superseded to 25 351 11-S) 

Note: (includes 25 357 14-S)

$23.99

$

In Stock, only 4 left!

8

Kohler 24 411 05-S

ROD, PUSH

$5.49

$

In Stock, Qty 9

9

Kohler 24 841 03-S

CYL HEAD GASKET KIT-USE 24 841 04-S

(Superseded to 24 841 04-S) 

Note: (includes 17 [qty 4], 18 [qty 4], 24 041 01-S, 24 041 49-S, 24 153 27-S)

$45.99

$

In Stock, Qty 20+

10

Kohler 24 318 18-S

USE 24 318 72-S CYL HEAD ASSY

(Superseded to 24 318 72-S) 

Note: (Before S/N 3002400011)

$239.99

$

Usually ships in 2-5 days

2431872-S

Kohler 24 318 72-S

HEAD, ASSEM CYLINDER #2 -USE 24 318 116-

(Superseded to 24 818 06-S) 

Note: (After S/N 3002400001)

$239.99

$

Usually ships in 2-5 days

11

Kohler 24 605 01-S

LINER, EXHAUST PORT-USE 24 605 07-S

(Superseded to 24 605 07-S) 

$17.99

$

In Stock, only 2 left!

12

Kohler 25 186 01-S

ARM, ROCKER

$12.99

$

In Stock, only 2 left!

13

Kohler 24 599 01-S

PIVOT, CYLINDRICAL ROCKER ARM-USE 24 599

(Superseded to 24 599 02-S) 

$2.49

$

In Stock, Qty 8

14

Kohler M-640034-S

SCREW, FLG M6X1.0X34

$2.49

$

In Stock, Qty 18

15

Kohler 24 086 44-S

SCREW-USE 62 086 08-S

(Superseded to 62 086 08-S) 

Note: (Before S/N 3002400011)

$5.99

$

In Stock, Qty 5

16

Kohler 24 072 09-S

STUD, M8X1.25

Note: (After S/N 3002400001)

$6.49

$

In Stock, only 4 left!

17

Kohler 24 468 16-S

WASHER, FLAT 8.6 MM

Note: (After S/N 3002400001)

$2.49

$

Usually ships in 2-5 days

18

Kohler 24 100 10-S

NUT, FLG M8X1.25

Note: (After S/N 3002400001)

$4.49

$

Usually ships in 2-5 days

19

Kohler 24 755 141-S

KIT, VALVE COVER-PLAIN

Note: (includes 20 [qty 1], 21 [qty 4]) (After S/N 333200001)

$35.99

$

In Stock, only 2 left!

20

Kohler 24 153 28-S

O-RING (YELLOW) -USE 24 153 30-S

(Superseded to 25 153 24-S) 

Note: (After S/N 333200001)

$10.99

$

In Stock, Qty 20+

21

Kohler M-651030-S

SCREW, FLG M6X1.0X30

$

Not available 

22

Kohler 24 445 01-S

STRAP, LIFTING-USE 25 445 03-S

(Superseded to 25 445 03-S) 

$

Not available 

23

DISCONTINUED

Note: KIT, PAIN ROCKER COVER (BEFORE S/N 333200011) (TO SERVICE COVER ORDER ITEM 19. TO SERVICE EITHER THE SHOULDER SCREW OR O-RING, ORDER ITEMS 24 [QTY 4] OR 25 [QTY 1])

$

Not available 

24

Kohler 24 086 32-S

SCREW, SHOULDER

Note: (Before S/N 333200011)

$2.99

$

In Stock, Qty 11

25

Kohler 24 153 23-S

O-RING (BLACK)

Note: (Before S/N 333200011)

$18.99

$

In Stock, only 2 left!

26

DISCONTINUED

Note: KIT, BRAETHER ROCKER COVER (Before S/N 333200011) (TO SERVICE COVER ORDER ITEM 35. TO SERVICE EITHER THE SHOULDER SCREW OR O-RING, ORDER ITEMS 24 [QTY 4] OR 25 [QTY 1])

$

Not available 

27
