CV25-69511 - Kohler Command PRO Engine, Made for Electrolux Home Products, 25hp, 18.61kW Air Intake - Style B 10-24-24 (TP-2461) Rev 10/12/2006 Parts Diagram

Command PRO Engine, Made for Electrolux Home Products, 25hp, 18.61kW

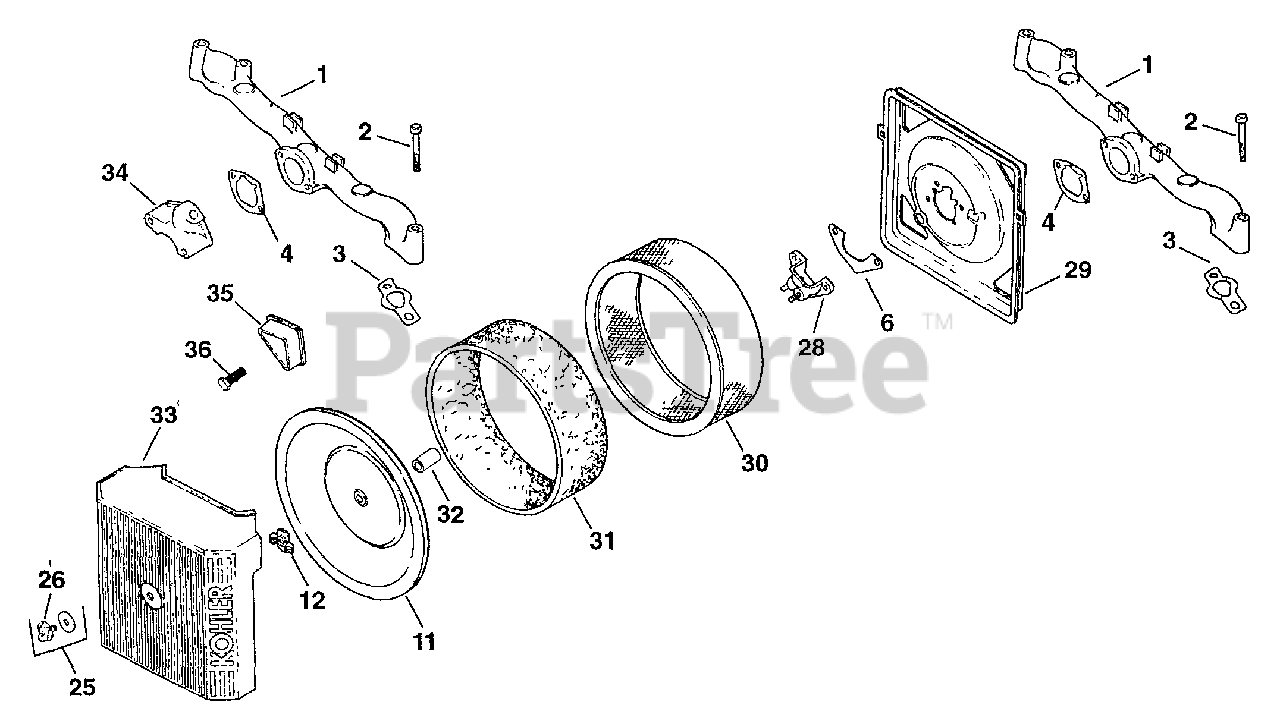

Air Intake - Style B 10-24-24 (TP-2461) Rev 10/12/2006 Parts Diagram

  • Title

1

Kohler 24 164 06-S

MANIFOLD, INTAKE

$222.99

$

Usually ships in 2-5 days

0

2

Kohler M-0651055

Screw, hex. flange M6x1.0x55
(Superseded to 25 086 766-S)

$2.49

$

In Stock, Qty 20+

0

3

Kohler 24 041 01-S

GASKET, INTAKE MANIFOLD USE 24 041 79-S
(Superseded to 24 041 79-S)

$2.99

$

In Stock, Qty 7

0

4

Kohler 24 041 14-S

GASKET, AIR CLEANER BASE

$2.99

$

In Stock, Qty 8

0

6

Kohler 24 041 13-S

GASKET, FUEL SPITBACK CUP

$5.99

$

In Stock, only 1 left!

0

11

Kohler 24 096 01-S

COVER, INNER AIR CLEANER

$16.99

$

In Stock, only 1 left!

0

12

Kohler 12 100 01-S

NUT, WING

$3.99

$

In Stock, only 2 left!

0

25

Kohler 24 755 91

KIT - USE 54 755 01
(Superseded to 54 755 01)

Note: Includes 26

$9.49

$

In Stock, Qty 9

0

26

Kohler 25 341 02

KNOB - USE 25 341 03
(Superseded to 25 341 03)

$8.49

$

In Stock, only 2 left!

0

28

Kohler 24 109 05

CUP - USE 24 109 09
(Superseded to 24 109 25-S)

Note: 34.5 mm stud CV25

$

$

Not available

29

Kohler 24 094 13

BASE - USE 24 094 18
(Superseded to 24 094 30-S)

$27.99

$

Usually ships in 2-5 days

0

30

Kohler 24 083 03-S

ELEMENT, AIR FILTER (HIGH) - Also available Retail Packaged 24 883 03-S1 Air Filter Kit

$23.99

$

In Stock, Qty 20+

0

31

Kohler 24 083 05-S

PRE-CLEANER (HIGH)

$6.99

$

Usually ships in 2-5 days

0

32

Kohler 230046-S

SEAL, BREATHER

$6.49

$

In Stock, only 1 left!

0

33

Kohler 24 096 42-S

USE 24 096 71-S COVER
(Superseded to 24 096 71-S)

$

$

Not available
