CV23-75613 - Kohler Command PRO Engine, Made for ZTR, 23hp, 17.2kW Fuel System 8-24-635 Parts Diagram

Command PRO Engine, Made for ZTR, 23hp, 17.2kW

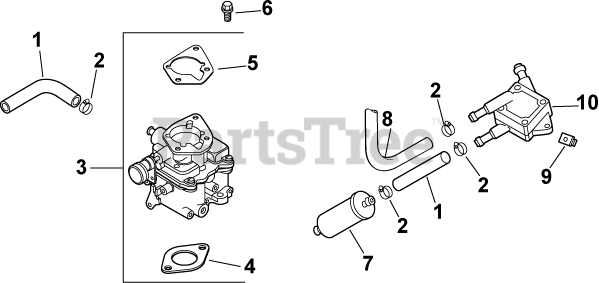

Fuel System 8-24-635 Parts Diagram

  • Title

1

Kohler 25 111 34-S

HOSE,LW PERM.FUEL 24.00"-USE 25 111 81-S
(Superseded to 25 111 81-S)

$17.99

$

In Stock, only 3 left!

0

2

Kohler 25 237 14-S

CLAMP, HOSE (KM)-USE 25 237 31-S
(Superseded to 25 237 31-S)

$4.99

$

In Stock, only 3 left!

0

3

Kohler 24 853 97-S

CARBURETOR KIT-USE 24 853 171-S
(Superseded to 24 853 315-S)

Note: (Includes 4,5)

$425.99

$

Usually ships in 2-5 days

0

4

Kohler 24 041 06-S

GASKET, AIR CLEANER BASE

$2.99

$

In Stock, Qty 19

0

5

Kohler 24 041 15-S

GASKET, CARBURETOR

$15.99

$

In Stock, only 1 left!

0

6

Kohler 24 086 12-S

SCREW, TAP M6X1.7X18

$

$

Not available

7

Kohler 25 050 22-S

FILTER,FUEL 51 MICRON (FUEL PUMP)

$8.99

$

In Stock, Qty 20+

0

8

Kohler 24 353 12-S

LINE, FUEL 11"

$3.99

$

Usually ships in 2-5 days

0

9

Kohler 25 100 37-S

NUT, PLASTIC - BLACK

$2.49

$

In Stock, Qty 7

0

10

Kohler 24 393 16-S

PUMP, FUEL

$32.99

$

In Stock, Qty 16

0

2443102-S

Kohler 24 431 02-S

SLEEVE, INSULATING 14"

Note: NOT ILLUSTRATED

$6.49

$

In Stock, only 1 left!

0
