CV23-75613 - Kohler Command PRO Engine, Made for ZTR, 23hp, 17.2kW Exhaust 11-24-13 FOR 75613 Parts Diagram

Command PRO Engine, Made for ZTR, 23hp, 17.2kW

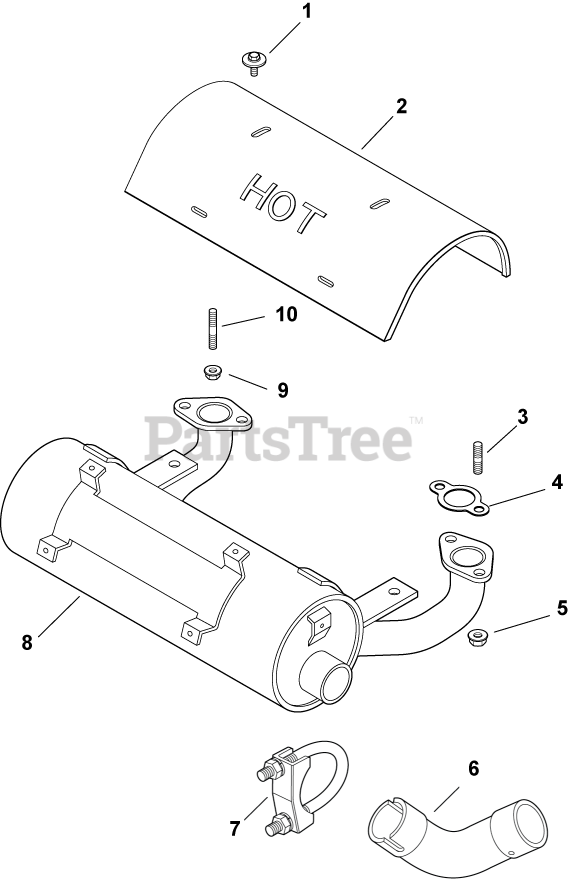

Exhaust 11-24-13 FOR 75613 Parts Diagram

  • Title

1

Kohler 25 086 40-S

SCREW, SEMS DRILL #8-18X1/2"

$3.49

$

Usually ships in 2-5 days

0

2

Kohler 24 281 06-S

DUCT, HEAT SHIELD

$72.99

$

Usually ships in 2-5 days

0

3

Kohler 25 072 04-S

STUD, EXHAUST (KM)-USE 25 072 24-S
(Superseded to 25 072 24-S)

$3.99

$

In Stock, only 3 left!

0

4

Kohler 24 041 49-S

GASKET, EXHAUST
(Superseded to 25 041 17-S)

$2.99

$

In Stock, Qty 20+

0

5

Kohler M-841080-S

NUT, FLG M8X1.25

$2.49

$

In Stock, only 1 left!

0

6

Kohler 45 054 21-S

ELBOW, EXHAUST

$79.99

$

In Stock, Qty 8

0

7

Kohler 24 237 13-S

CLAMP, MUFFLER

$12.99

$

Usually ships in 2-5 days

0

8

Kohler 24 068 08-S

MUFFLER, OIL FILT. SIDE USE 24 068 08-S
(Superseded to 24 068 114-S)

$392.99

$

Usually ships in 2-5 days

0

9

Kohler M-641060-S

NUT, FLG M6X1.0

$4.49

$

In Stock, Qty 9

0

10

Kohler 24 072 08-S

STUD, M6X1.0X36

$3.99

$

Usually ships in 2-5 days

0
