CV23-75569 - Kohler Command PRO Engine, Made for John Deere, 23hp, 17.2kW Fuel System Group 8-24-416 Parts Diagram

Command PRO Engine, Made for John Deere, 23hp, 17.2kW

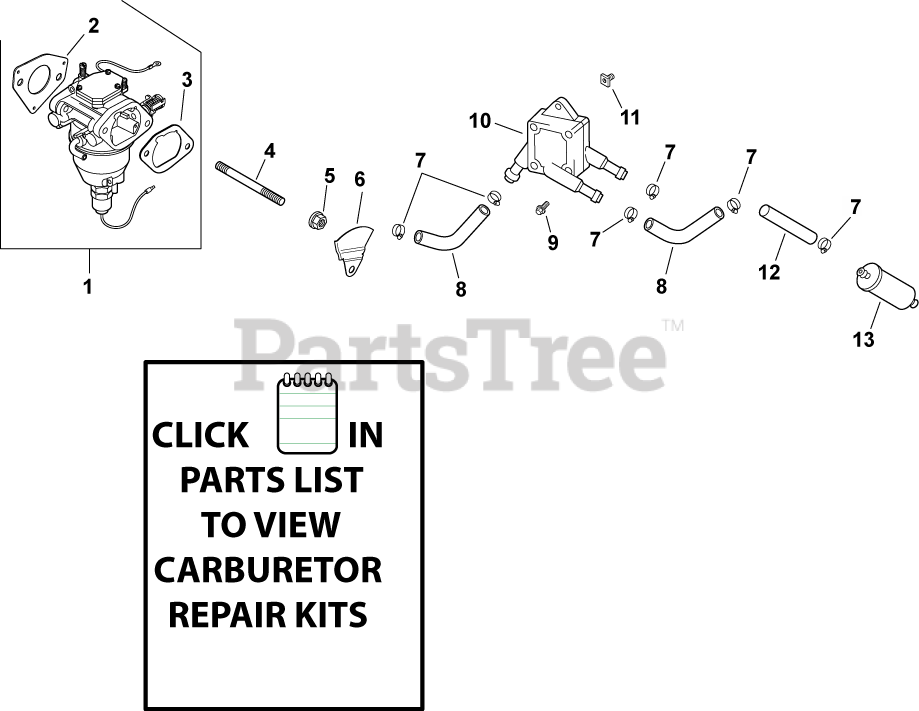

Fuel System Group 8-24-416 Parts Diagram

  • Title

1

Kohler 24 853 61-S

CARBURETOR KIT-USE 24 853 169-S
(Superseded to 24 853 303-S)

Note: (Includes 2,3)

$337.99

$

In Stock, only 1 left!

0

2

Kohler 24 041 15-S

GASKET, CARBURETOR

$15.99

$

In Stock, only 1 left!

0

3

Kohler 24 041 06-S

GASKET, AIR CLEANER BASE

$2.99

$

In Stock, Qty 19

0

4

Kohler M-629095-S

STUD,M6X1.0X96

$3.99

$

In Stock, only 2 left!

0

5

Kohler M-641060-S

NUT, FLG M6X1.0

$4.49

$

In Stock, Qty 6

0

6

Kohler 24 063 51-S

BAFFLE, SPIT-BACK CUP-USE 24 063 105-S
(Superseded to 24 063 105-S)

$8.99

$

Usually ships in 2-5 days

0

7

Kohler 25 237 14-S

CLAMP, HOSE (KM)-USE 25 237 31-S
(Superseded to 25 237 31-S)

$4.99

$

In Stock, only 3 left!

0

8

Kohler 25 111 34-S

HOSE,LW PERM.FUEL 24.00"-USE 25 111 81-S
(Superseded to 25 111 81-S)

$17.99

$

In Stock, only 3 left!

0

9

Kohler 24 086 12-S

SCREW, TAP M6X1.7X18

$

$

Not available

10

Kohler 24 393 16-S

PUMP, FUEL

$32.99

$

In Stock, Qty 16

0

11

Kohler 25 100 37-S

NUT, PLASTIC - BLACK

$2.49

$

In Stock, Qty 7

0

12

Kohler 25 353 12-S

LINE, FUEL
(Superseded to 25 111 34-S)

Note: 11"

$17.99

$

In Stock, only 3 left!

0

13

Kohler 24 050 13-S

FILTER, FUEL

$12.99

$

In Stock, Qty 20+

0

2545405-S

Kohler 25 454 05-S

TIE

Note: NOT ILLUSTRATED

$2.49

$

In Stock, only 2 left!

0
