CV23-75556 - Kohler Command PRO Engine, Made for JD, 23hp, 17.2kW Oil Pan/Lubrication 3-24-358 Parts Diagram

Command PRO Engine, Made for JD, 23hp, 17.2kW

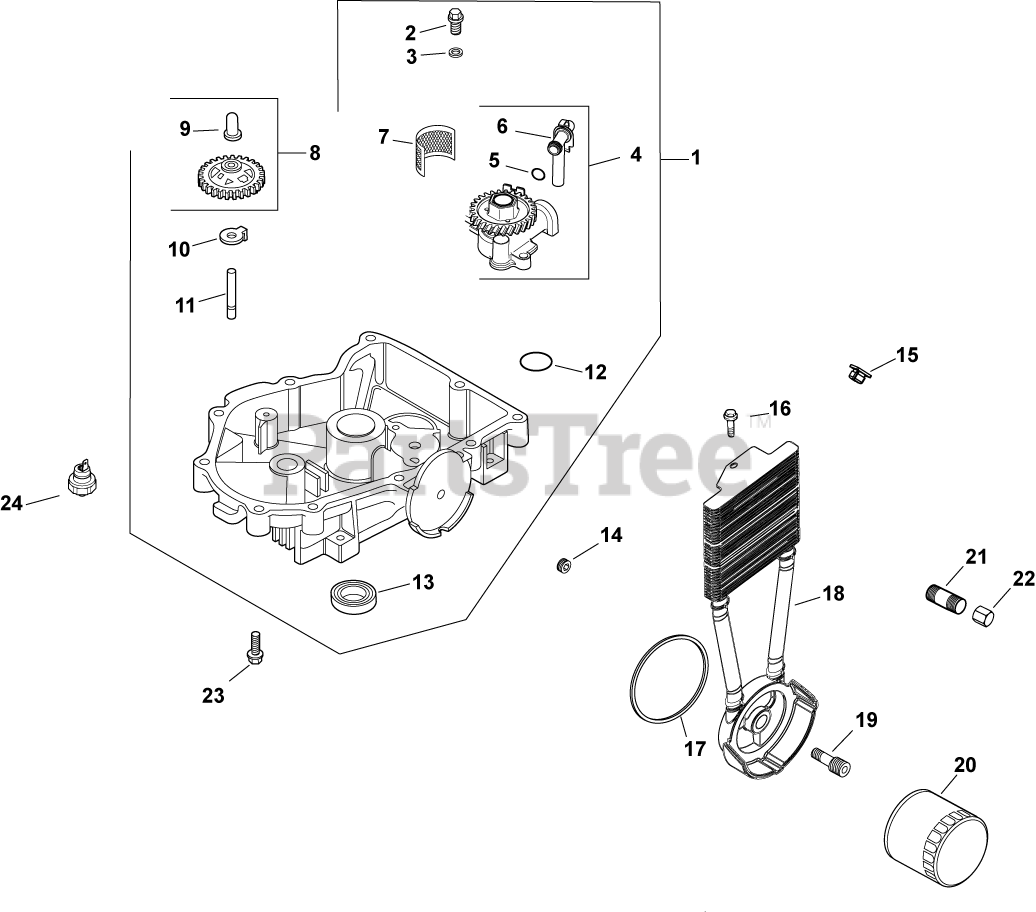

Oil Pan/Lubrication 3-24-358 Parts Diagram

  • Title
1

Kohler 24 199 07-S

PAN , OIL ASSEMBLY USE 24 199 32-S
(Superseded to 24 199 35-S)

Note: (includes 2-13)

$337.99

$

In Stock, only 1 left!

0

2

Kohler M-645025-S

SCREW,FLG THD FRM M6X1.0X25-(#25086395S)
(Superseded to 25 086 395-S)

$2.49

$

In Stock, only 2 left!

0

3

Kohler M-631005-S

WASHER, FLAT 6 MM

$2.49

$

In Stock, only 1 left!

0

4

Kohler 24 393 51-S

PUMP ASSEMBLY, OIL-USE 24 393 53-S
(Superseded to 24 393 53-S)

Note: (includes 5,6)

$

$

Not available

5

Kohler 24 153 01-S

O-RING, OIL PICK-UP

$2.49

$

In Stock, Qty 8

0

6

Kohler 24 381 11-S

KIT, OIL PICK-UP TUBE

$

$

Not available

7

Kohler 24 162 26-S

SCREEN, OIL

$17.99

$

In Stock, only 1 left!

0

8

Kohler 24 043 12-S

KIT, GOVERNOR GEAR W/PIN

Note: (includes 9)

$68.99

$

In Stock, Qty 10

0

9

Kohler 12 380 01-S

PIN, GOVERNOR REGULATING

$3.49

$

In Stock, Qty 8

0

10

Kohler 24 448 02-S

TAB, LOCKING

$2.49

$

In Stock, Qty 20+

0

11

Kohler 12 144 02-S

SHAFT, GOVERNOR GEAR

$4.49

$

In Stock, Qty 8

0

12

$6.99

$

In Stock, only 2 left!

0

13

Kohler 25 032 06-S

SEAL, OIL

$10.99

$

In Stock, Qty 16

0

14

Kohler 25 139 62-S

PLUG, PIPE CTSK 3/8"

$3.49

$

In Stock, only 2 left!

0

15

Kohler 24 100 01-S

NUT, PLASTIC (KM)-USE 25 100 37-S
(Superseded to 25 100 37-S)

$2.49

$

In Stock, Qty 7

0

16

Kohler 24 086 12-S

SCREW, TAP M6X1.7X18

$

$

Not available

17

Kohler 24 153 21-S

O-RING, OIL COOLER

$6.49

$

In Stock, Qty 6

0

18

Kohler 54 755 21-S

KIT, OIL COOLER

Note: (includes 17, 19)

$257.99

$

Usually ships in 2-5 days

0

19

Kohler 24 136 05-S

NIPPLE, OIL FILTER
(Superseded to 24 136 10-S)

$13.99

$

Usually ships in 2-5 days

0

20

Kohler 12 050 01-S

OIL FILTER

$13.99

$

In Stock, Qty 20+

0

21

Kohler 24 136 04-S

NIPPLE, PIPE

$14.99

$

Usually ships in 2-5 days

0

22

Kohler 12 173 03-S

CAP, PIPE

$47.99

$

Usually ships in 2-5 days

0

23

Kohler 24 086 17-S

SCREW, FLG M8X1.25X45

$2.49

$

In Stock, Qty 7

0

24

Kohler 25 099 27-S

SENSOR, OIL PSI

$15.99

$

In Stock, only 4 left!

0
