CV23-75553 - Kohler Command PRO Engine, Made for Simplicity, 23hp, 17.2kW Air Intake/Filtration Parts Diagram

Command PRO Engine, Made for Simplicity, 23hp, 17.2kW

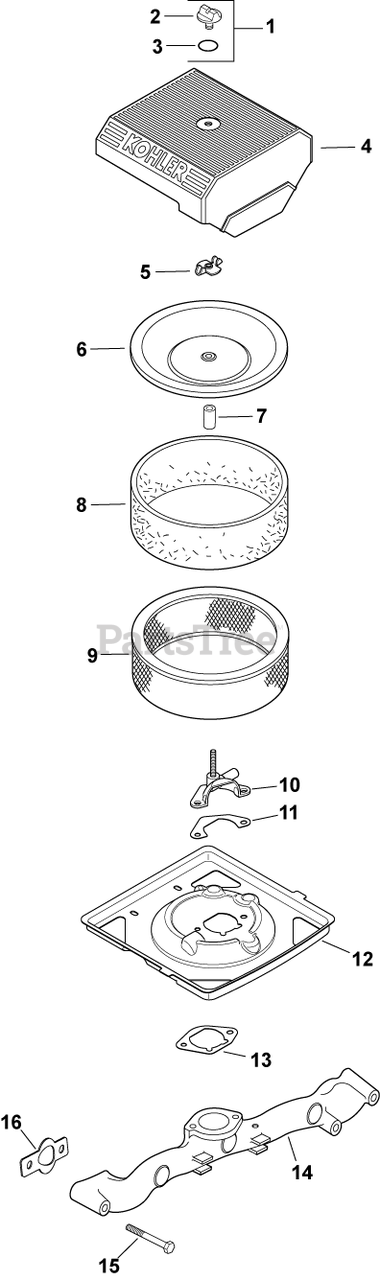

Air Intake/Filtration Parts Diagram

  • Title

1

Kohler 54 755 01-S

KIT, KNOB W/SEAL

Note: (includes 2 & 3)

$9.49

$

In Stock, only 2 left!

0

2

Kohler 25 341 03-S

KNOB, COVER
(Superseded to 25 341 04-S)

$7.99

$

Usually ships in 2-5 days

0

3

Kohler 24 153 20-S

O-RING

$2.49

$

In Stock, Qty 10

0

4

Kohler 24 096 70-S

COVER, AIR CLEANER

$51.99

$

Usually ships in 2-5 days

0

5

Kohler 12 100 01-S

NUT, WING

$3.99

$

In Stock, only 1 left!

0

6

Kohler 24 096 01-S

COVER, INNER AIR CLEANER

$16.99

$

In Stock, only 1 left!

0

7

Kohler 24 032 03-S

SEAL, INNER AIR CLEANER

$4.99

$

In Stock, Qty 7

0

8

Kohler 24 083 02-S

ELEMENT, PRECLEANER (LOW)

$6.99

$

In Stock, Qty 8

0

9

Kohler 47 083 03-S

ELEMENT, AIR CLEANER - Also available Retail Packaged 47 883 03-S1 Air Filter Kit

$23.99

$

In Stock, Qty 17

0

10

Kohler 24 109 10-S

CUP, SPITBACK W/STUD-USE 24 109 26-S
(Superseded to 24 109 26-S)

$22.99

$

In Stock, only 2 left!

0

11

Kohler 24 041 13-S

GASKET, FUEL SPITBACK CUP

$5.99

$

In Stock, only 1 left!

0

12

Kohler 24 094 31-S

BASE, AIR CLEANER-USE 24 094 86-S
(Superseded to 24 094 86-S)

$82.99

$

Usually ships in 2-5 days

0

13

Kohler 24 041 14-S

GASKET, AIR CLEANER BASE

$2.99

$

In Stock, Qty 9

0

14

Kohler 24 164 06-S

MANIFOLD, INTAKE

$222.99

$

Usually ships in 2-5 days

0

15

Kohler 25 086 84-S

SCREW, FLG M6X1.0X55
(Superseded to 25 086 766-S)

$2.49

$

In Stock, Qty 20+

0

16

Kohler 24 041 01-S

GASKET, INTAKE MANIFOLD USE 24 041 79-S
(Superseded to 24 041 79-S)

$2.99

$

In Stock, Qty 7

0
