CV224-3027 - Kohler Command PRO Engine, Made for Vari A.S., 11.0 ft-lbs, 224cc 08 Fuel System Parts Diagram

Command PRO Engine, Made for Vari A.S., 11.0 ft-lbs, 224cc

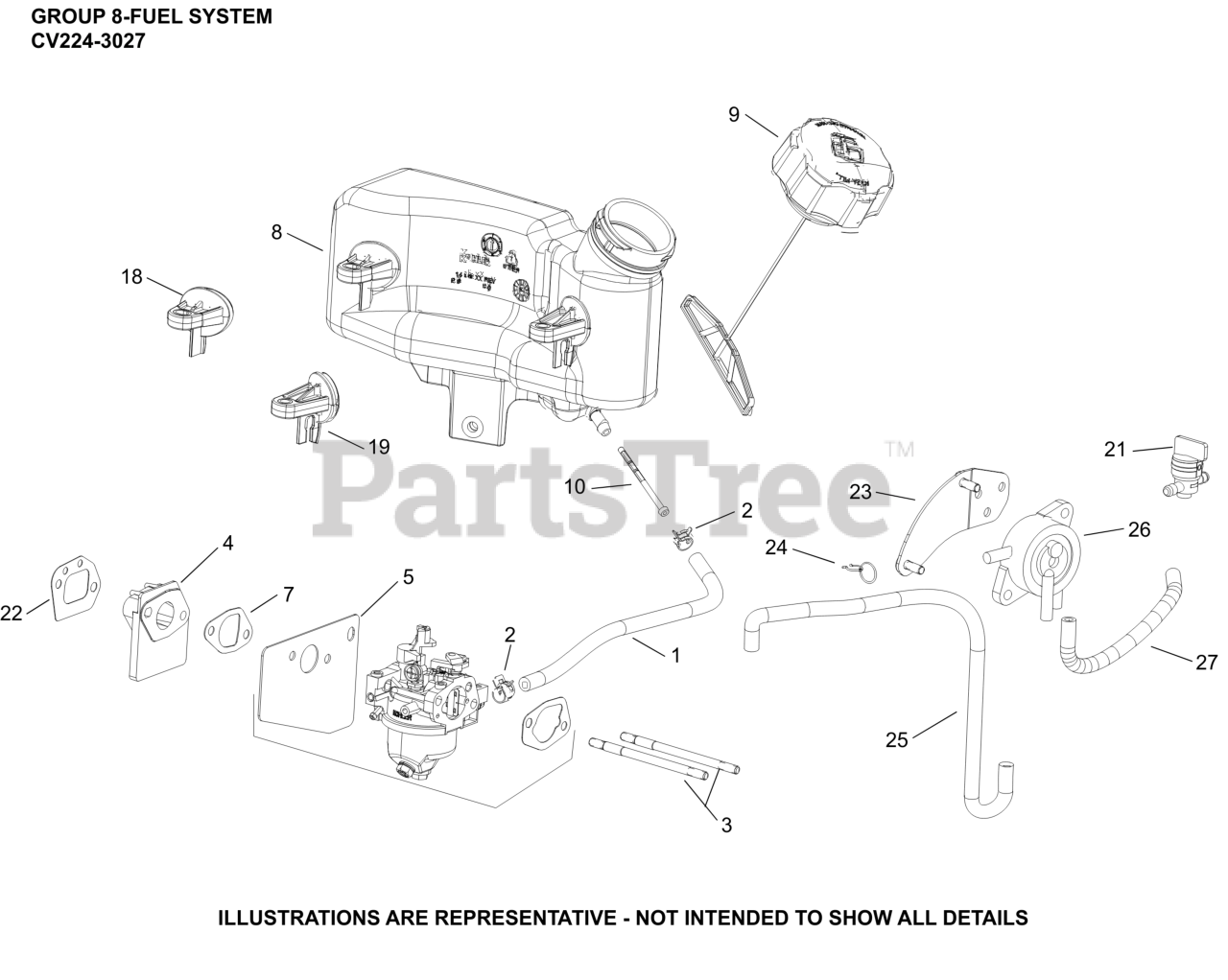

08 Fuel System Parts Diagram

  • Title

1

Kohler 25 111 69-S

HOSE, FUEL LOW-PERMEATION (CKY)

$9.49

$

In Stock, Qty 5

0

2

Kohler 14 237 07-S

CLAMP, HOSE (NON-CALIF)(#1423710S)
(Superseded to 14 237 10-S)

$2.49

$

In Stock, Qty 14

0

3

Kohler 14 072 23-S

STUD,M6X1.0X100.2MM

$4.99

$

In Stock, only 2 left!

0

4

Kohler 14 112 09-S

KIT, SPACER

$16.99

$

Usually ships in 2-5 days

0

5

Kohler 14 041 31-S

KIT, CARBURETOR HEAT SHIELD GASKET

$13.99

$

In Stock, Qty 6

0

7

Kohler 17 041 03-S

KIT, INTAKE GASKET

$10.99

$

In Stock, Qty 8

0

8

Kohler 14 065 72-S

TANK, FUEL

$49.99

$

Usually ships in 2-5 days

0

9

Kohler 14 227 26-S

FUEL CAP ASSEMBLY

$30.99

$

In Stock, only 1 left!

0

10

Kohler 14 050 14-S

FILTER, FUEL IN-NIPPLE

$6.99

$

In Stock, Qty 14

0

18

Kohler 14 126 78-S

BRACKET, FUEL TANK

$

$

Not available

19

Kohler 14 126 79-S

BRACKET, FUEL TANK

$

$

Not available

21

Kohler 14 099 11-S

VALVE, FUEL SHUTOFF ASSEMBLY

$12.99

$

Usually ships in 2-5 days

0

NI

Kohler 14 041 07-S

GASKET SPACER

$2.49

$

Usually ships in 2-5 days

0

NI

Kohler 14 126 129-S

BRACKET, PURSE PUMP

$8.49

$

Usually ships in 2-5 days

0

NI

Kohler 14 237 11-S

CLAMP, HOSE

$2.49

$

Usually ships in 2-5 days

0

NI

Kohler 14 326 15-S

HOSE, VACUUM

$6.49

$

Usually ships in 2-5 days

0

NI

Kohler 14 755 21-S

KIT,HIGH AL(4000-8000 FT)USE 14 755 04-S
(Superseded to 14 755 04-S)

$16.99

$

Usually ships in 2-5 days

0

NI

Kohler 14 757 03-S

KIT, CARBURETOR REPAIR (RUIXING)

$15.99

$

In Stock, Qty 11

0

NI

Kohler 14 853 123-S

KIT, CARBURETOR COMPLETE

$54.99

$

Usually ships in 2-5 days

0

NI

Kohler 24 393 16-S

PUMP, FUEL

$32.99

$

In Stock, Qty 8

0

NI

Kohler 25 111 236-S

HOSE, FUEL LOW-PERMEATION

$9.49

$

Usually ships in 2-5 days

0
