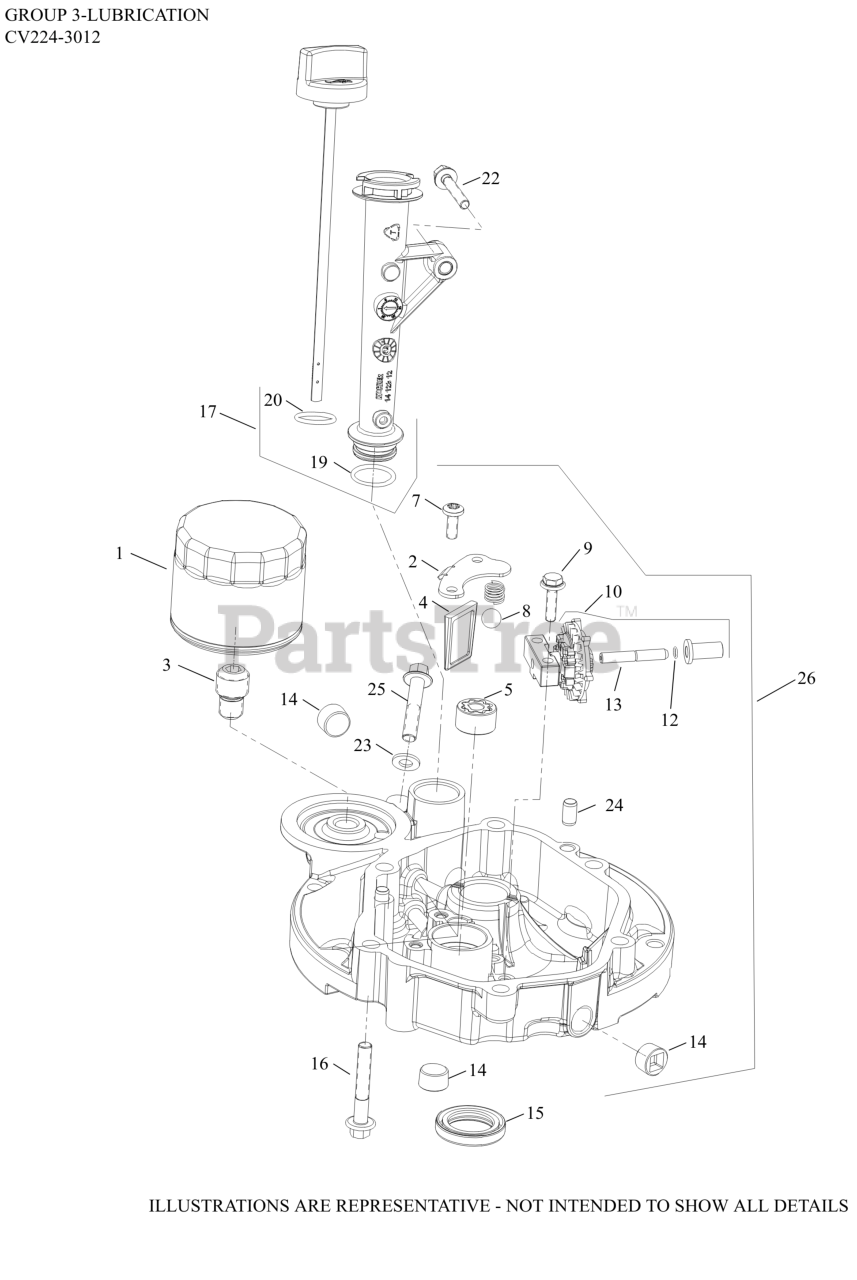

CV224-3012 - Kohler Command PRO Engine, Made for Beijing Greenman, 11.0 ft-lbs, 224cc 03 Lubrication Parts Diagram

Command PRO Engine, Made for Beijing Greenman, 11.0 ft-lbs, 224cc

03 Lubrication Parts Diagram

  • Title
1

Kohler 14 050 33-S

FILTER, OIL
(Superseded to 14 050 36-S)

$22.99

$

In Stock, only 3 left!

0

2

Kohler 14 096 149-S

COVER, OIL PUMP SCREEN

$5.49

$

Usually ships in 2-5 days

0

3

Kohler 14 136 02-S

NIPPLE, OIL FILTER

$4.99

$

Usually ships in 2-5 days

0

4

Kohler 14 162 06-S

SCREEN, OIL

$4.99

$

Usually ships in 2-5 days

0

5

Kohler 14 393 02-S

PUMP ASSEMBLY, OIL (GE-ROTOR)

$9.49

$

Usually ships in 2-5 days

0

7

Kohler 25 086 731-S

SCREW, M6 X 16

$2.49

$

Usually ships in 2-5 days

0

8

Kohler 25 194 04-S

BALL, STEEL COMPOSITE

$2.49

$

Usually ships in 2-5 days

0

9

Kohler 25 086 331-S

SCREW, M6 X 22

$2.49

$

In Stock, only 2 left!

0

10

Kohler 14 310 04-S

GOVERNOR GEAR, ASSEMBLY

$7.99

$

Usually ships in 2-5 days

0

12

Kohler 14 154 14-S

CLIP, GOVERNOR GEAR-DISCONTINUED

$

$

Currently unavailable

13

Kohler 14 144 23-S

SHAFT, GOVERNOR GEAR-DISCONTINUED

$

$

Currently unavailable

14

Kohler 14 139 02-S

PLUG, PIPE (W/SEALANT)

$9.49

$

Usually ships in 2-5 days

0

15

$9.49

$

In Stock, only 1 left!

0

16

Kohler 25 086 161-S

SCREW, HEX FLANGE (M8)-USE 25 086 456-S
(Superseded to 25 086 456-S)

$2.49

$

In Stock, only 4 left!

0

17

Kohler 14 123 33-S

TUBE ASSEMBLY OIL FILL

$9.49

$

Usually ships in 2-5 days

0

19

Kohler 14 153 03-S

O-RING, OIL FILL TUBE

$2.99

$

In Stock, only 1 left!

0

20

Kohler 14 153 05-S

O-RING (CAP)

$2.99

$

In Stock, only 1 left!

0

22

Kohler 25 086 145-S

SCREW, HEX FLANGE (M6)-(#25086435S)
(Superseded to 25 086 435-S)

$2.49

$

In Stock, Qty 7

0

23

Kohler 14 468 32-S

WASHER, CLEAN OIL SCREW

$2.49

$

Usually ships in 2-5 days

0

24

Kohler 14 380 12-S

PIN, DOWEL (8mm)

$2.49

$

Usually ships in 2-5 days

0

25

Kohler 25 086 230-S

SCREW, CLOSURE PLATE

$2.49

$

Usually ships in 2-5 days

0

26

Kohler 14 199 45-S

PAN, OIL ASSEMBLY (KIT)

$131.99

$

Usually ships in 2-5 days

0
