CV22-75583 - Kohler Command PRO Engine, Made for Husqvarna, 23hp, 17.2kW Ignition/Electrical 5-24-506 Parts Diagram

Command PRO Engine, Made for Husqvarna, 23hp, 17.2kW

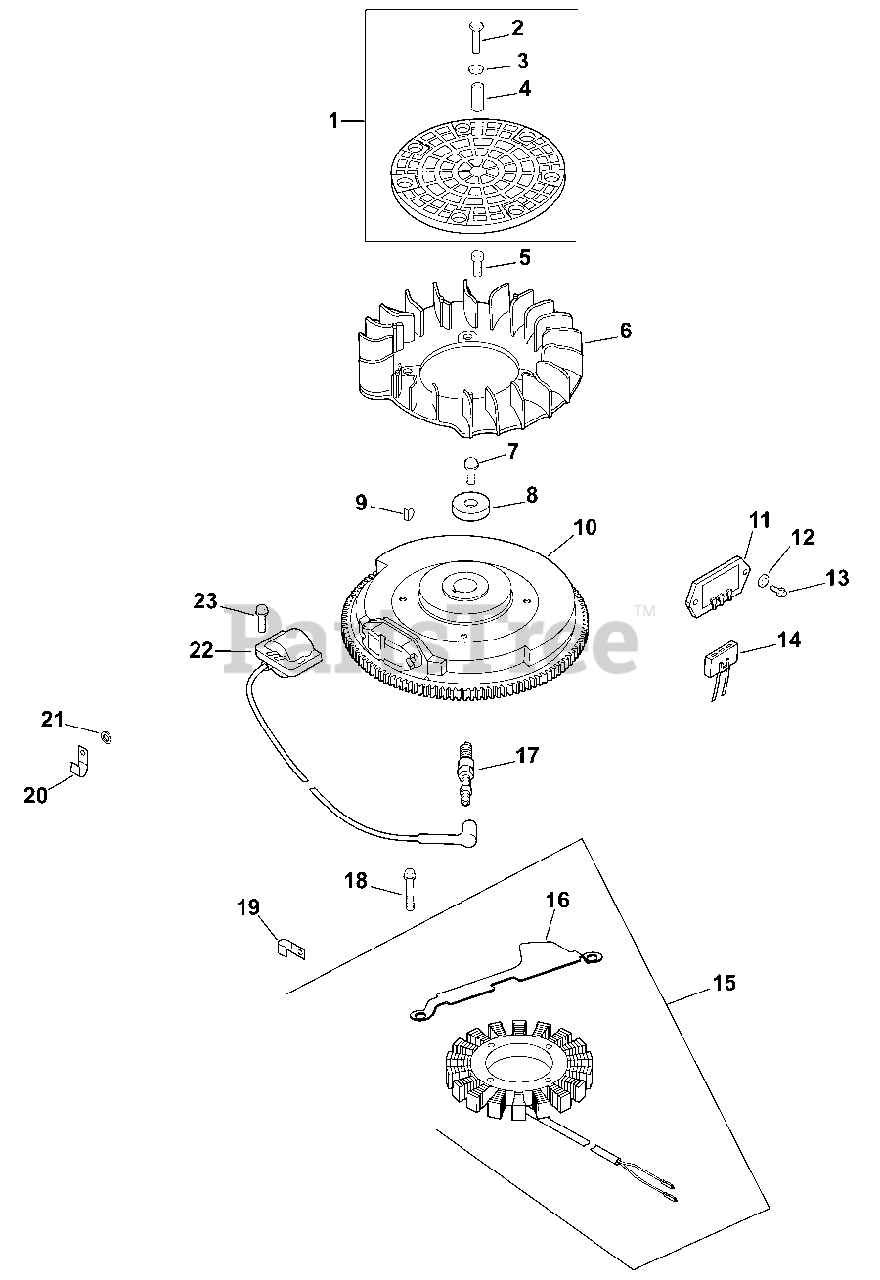

Ignition/Electrical 5-24-506 Parts Diagram

  • Title

1

Kohler 54 755 15-S

KIT, GRASS SCREEN

Note: (Includes 2-4 and grass screen 24 113 18-S)

$41.99

$

In Stock, only 1 left!

0

2

Kohler M-403025-S

SCREW, SLT HD CAP M4X0.7X25

$4.99

$

In Stock, only 1 left!

0

3

Kohler X-25-92-S

WASHER, FLAT 3/16"

$2.49

$

In Stock, only 2 left!

0

4

Kohler 24 112 04-S

SPACER - DISCONTINUED

$

$

Not available

5

Kohler 25 086 47-S

BOLT, SHOULDER

$2.49

$

In Stock, Qty 7

0

6

Kohler 24 157 08-S

FAN (DOMED)-USE 24 157 17-S
(Superseded to 24 157 17-S)

$22.99

$

In Stock, only 1 left!

0

7

Kohler 12 086 14-S

SCREW, FLG M10X1.5X45 - (#25086361S)
(Superseded to 25 086 361-S)

$3.99

$

In Stock, Qty 12

0

8

Kohler 12 468 03-S

WASHER, FLAT 13/32"
(Superseded to 25 468 09-S)

$6.49

$

In Stock, only 2 left!

0

9

Kohler X-42-15-S

KEY, 3/16" X 5/8"

$2.99

$

In Stock, Qty 6

0

10

Kohler 24 025 04-S

FLYWHEEL, PAINTED-USE 24 025 55-S
(Superseded to 24 025 55-S)

$

$

Not available

11

Kohler 41 403 09-S

REG/RECT-15 AMP (KM)-USE 41 403 10-S
(Superseded to 41 403 10-S)

$

$

Not available

12

Kohler X-25-92-S

WASHER, FLAT 3/16"

$2.49

$

In Stock, only 2 left!

0

13

Kohler 24 086 18-S

SCREW, PHL HD #11-16X7/8"

$2.49

$

Usually ships in 2-5 days

0

14

Kohler 236602-S

CONNECTOR, BODY (KM)-USE 25 155 41-S
(Superseded to 25 155 41-S)

$24.99

$

In Stock, only 1 left!

0

15

Kohler 54 755 09-S

STATOR KIT - USE 237878-S
(Superseded to 237878-S)

Note: (Includes 16)

$149.99

$

In Stock, Qty 8

0

16

Kohler 24 126 139-S

BRACKET, STATOR WIRE

$15.99

$

Usually ships in 2-5 days

0

17

Kohler 12 132 02-S

PLUG, SPARK (STD)

$4.49

$

In Stock, Qty 20+

0

18

Kohler M-548025-S

SCREW, M5X0.8X25 - (#25086402S)
(Superseded to 25 086 402-S)

$2.49

$

In Stock, only 2 left!

0

19

Kohler 235173-S

CLIP, CABLE

$11.99

$

Usually ships in 2-5 days

0

20

Kohler 48 154 02-S

CLIP

$16.99

$

Usually ships in 2-5 days

0

21

Kohler X-25-63-S

WASHER, FLAT 1/4" (O.D. 1/2")

$2.49

$

In Stock, only 3 left!

0

22

Kohler 24 584 01-S

MODULE, IGNITION-USE 24 584 45-S
(Superseded to 24 584 45-S)

$

$

Not available

23

Kohler M-545020-S

SCREW, FLG THD FRM M5X.8X20-(#25086399S)
(Superseded to 25 086 473-S)

$2.49

$

In Stock, Qty 20+

0

24126137-S

Kohler 24 126 137-S

BRACKET, GROUND STRAP USE 24 518 12-S
(Superseded to 24 518 12-S)

Note: NOT ILLUSTRATED

$4.99

$

Usually ships in 2-5 days

0

2417682-S

Kohler 24 176 82-S

HARNESS, WIRING

Note: NOT ILLUSTRATED

$75.99

$

In Stock, only 1 left!

0

2411318-S

Kohler 24 113 18-S

DECAL, GRASS SCREEN USE 24 113 499-S
(Superseded to 24 113 499-S)

Note: NOT ILLUSTRATED

$4.99

$

Usually ships in 2-5 days

0

2545403-S

Kohler 25 454 03-S

TIE, WIRE

Note: NOT ILLUSTRATED

$2.49

$

Usually ships in 2-5 days

0
