CV22-75578 - Kohler Command PRO Engine, Made for Ariens, 23hp, 17.2kW Fuel System 8-24-528 Parts Diagram

Command PRO Engine, Made for Ariens, 23hp, 17.2kW

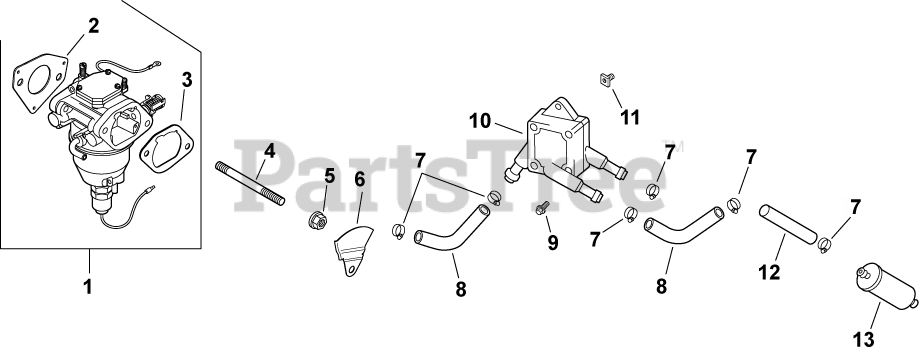

Fuel System 8-24-528 Parts Diagram

  • Title

1

Kohler 24 853 61-S

CARBURETOR KIT-USE 24 853 169-S
(Superseded to 24 853 303-S)

Note: (Includes 2,3)

$337.99

$

In Stock, only 1 left!

0

2

Kohler 24 041 52-S

GASKET, CARBURETOR
(Superseded to 24 041 91-S)

$5.49

$

In Stock, Qty 7

0

3

Kohler 24 041 14-S

GASKET, AIR CLEANER BASE

$2.99

$

In Stock, Qty 8

0

4

Kohler M-629095-S

STUD,M6X1.0X96

$3.99

$

In Stock, only 2 left!

0

5

Kohler M-641060-S

NUT, FLG M6X1.0

$4.49

$

In Stock, Qty 8

0

6

Kohler 24 063 51-S

BAFFLE, SPIT-BACK CUP-USE 24 063 105-S
(Superseded to 24 063 105-S)

$8.99

$

Usually ships in 2-5 days

0

7

Kohler 25 237 14-S

CLAMP, HOSE (KM)-USE 25 237 31-S
(Superseded to 25 237 31-S)

$4.99

$

In Stock, only 3 left!

0

8

Kohler 25 111 34-S

HOSE,LW PERM.FUEL 24.00"-USE 25 111 81-S
(Superseded to 25 111 81-S)

$17.99

$

In Stock, only 4 left!

0

9

Kohler 24 086 12-S

SCREW, TAP M6X1.7X18

$

$

Not available

10

Kohler 24 393 16-S

PUMP, FUEL

$32.99

$

In Stock, Qty 18

0

11

Kohler 24 100 01-S

NUT, PLASTIC (KM)-USE 25 100 37-S
(Superseded to 25 100 37-S)

$2.49

$

In Stock, Qty 7

0

12

Kohler 24 353 12-S

LINE, FUEL 11"

$3.99

$

Usually ships in 2-5 days

0

13

Kohler 24 050 10-S

FILTER, FUEL (9-12 MICRON)-USE 24 050 13
(Superseded to 24 050 13-S)

$12.99

$

In Stock, Qty 20+

0

2475736-S

Kohler 24 757 36-S

KIT, REPAIR SERVICE CHOKE

$116.99

$

In Stock, only 1 left!

0

2475738-S

Kohler 24 757 38-S

KIT, REPAIR SERVICE GASKET

$32.99

$

In Stock, only 1 left!

0

2475744-S

Kohler 24 757 44-S

KIT, REPAIR FLOAT

$94.99

$

In Stock, only 1 left!

0

2475745-S

Kohler 24 757 45-S

KIT, REPAIR SOLENOID VALVE

$246.99

$

In Stock, only 1 left!

0

2475746-S

Kohler 24 757 46-S

KIT, CARBURETOR REPAIR

$137.99

$

In Stock, only 1 left!

0
