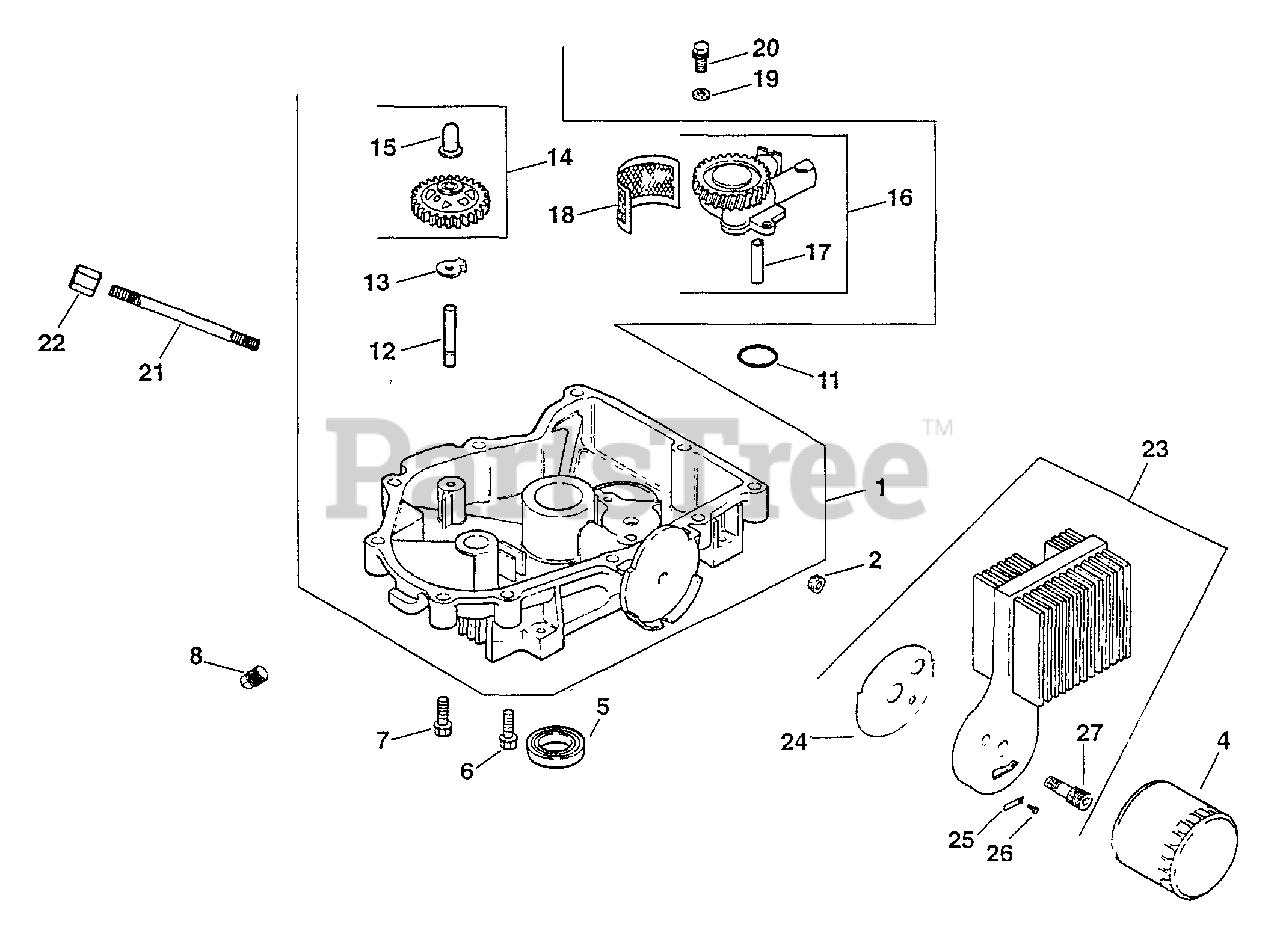

CV22-75517 - Kohler Command PRO Engine, Made for MTD, 23hp, 17.2kW Oil Pan/Lubrication (Cont.) 3-24-28 (TP-2461) Parts Diagram

Command PRO Engine, Made for MTD, 23hp, 17.2kW

Oil Pan/Lubrication (Cont.) 3-24-28 (TP-2461) Parts Diagram

  • Title

1

Kohler 24 199 07-S

PAN , OIL ASSEMBLY USE 24 199 32-S
(Superseded to 24 199 35-S)

Note: Includes 12-18

$337.99

$

In Stock, only 1 left!

0

2

Kohler X-75-32-S

PLUG, PIPE CTSK 3/8" USE 25 139 62-S
(Superseded to 25 139 62-S)

$3.49

$

In Stock, only 2 left!

0

4

Kohler 12 050 01-S

OIL FILTER

$13.99

$

In Stock, Qty 20+

0

5

Kohler 52 032 08-S

SEAL, OIL (KM)-USE 25 032 06-S
(Superseded to 25 032 06-S)

$10.99

$

In Stock, Qty 20+

0

6

Kohler 24 086 17-S

SCREW, FLG M8X1.25X45

$2.49

$

In Stock, Qty 5

0

7

Kohler 24 086 16-S

SCREW, HEX FLANGE -USE 24 086 17-S
(Superseded to 24 086 17-S)

$2.49

$

In Stock, Qty 5

0

8

Kohler X-75-10-S

PLUG, SQ HD PIPE 3/8" USE 25 139 57-S
(Superseded to 25 139 57-S)

$2.49

$

In Stock, only 3 left!

0

11

Kohler 24 153 08-S

O-RING

$6.99

$

In Stock, only 2 left!

0

12

Kohler 12 144 02-S

SHAFT, GOVERNOR GEAR

$4.49

$

In Stock, Qty 10

0

13

Kohler 52 448 02-S

USE 24 448 01-S LOCKING TAB
(Superseded to 24 448 01-S)

$2.49

$

In Stock, only 2 left!

0

14

Kohler 24 043 12-S

KIT, GOVERNOR GEAR W/PIN

Note: Includes 15

$68.99

$

In Stock, Qty 13

0

15

Kohler 12 380 01-S

PIN, GOVERNOR REGULATING

$3.49

$

In Stock, Qty 12

0

16

Kohler 24 393 08-S

USE 24 393 37-S OIL PUMP KIT
(Superseded to 24 393 51-S)

Note: Reference No. 24-237-03 or 04 stamped on housing. Includes 17

$

$

Not available

17

Kohler 24 123 05-S

USE 24 381 11-S TUBE
(Superseded to 24 381 11-S)

$

$

Not available

18

Kohler 25 162 07-S

SCREEN, OIL-USE 24 162 26-S
(Superseded to 24 162 26-S)

$17.99

$

In Stock, only 1 left!

0

19

Kohler M-0631005

WASHER - USE M-631005
(Superseded to M-631005)

$2.49

$

In Stock, only 1 left!

0

20

Kohler M-0645025

SCREW - USE M-645025
(Superseded to M-645025)

$2.49

$

In Stock, only 2 left!

0

23

Kohler 24 755 52-S

KIT, OIL COOLER

Note: Includes 24-27

$

$

Not available

24

Kohler 24 041 12

GASKET - USE 24 041 29
(Superseded to 24 041 29)

Note: To be replaced by 24-041-29

$5.49

$

In Stock, Qty 9

0

25

Kohler 24 402 02-S

REED, OIL RELIEF - DISCONTINUED

$

$

Not available

26

Kohler M-0448010

Screw, hex. cap M4x0.7x10
(Superseded to M-448010-S)

$2.49

$

Usually ships in 2-5 days

0

27

Kohler 24 136 03

USE 28 136 01 NIPPLE
(Superseded to 28 136 01-S)

$90.99

$

Usually ships in 2-5 days

0
