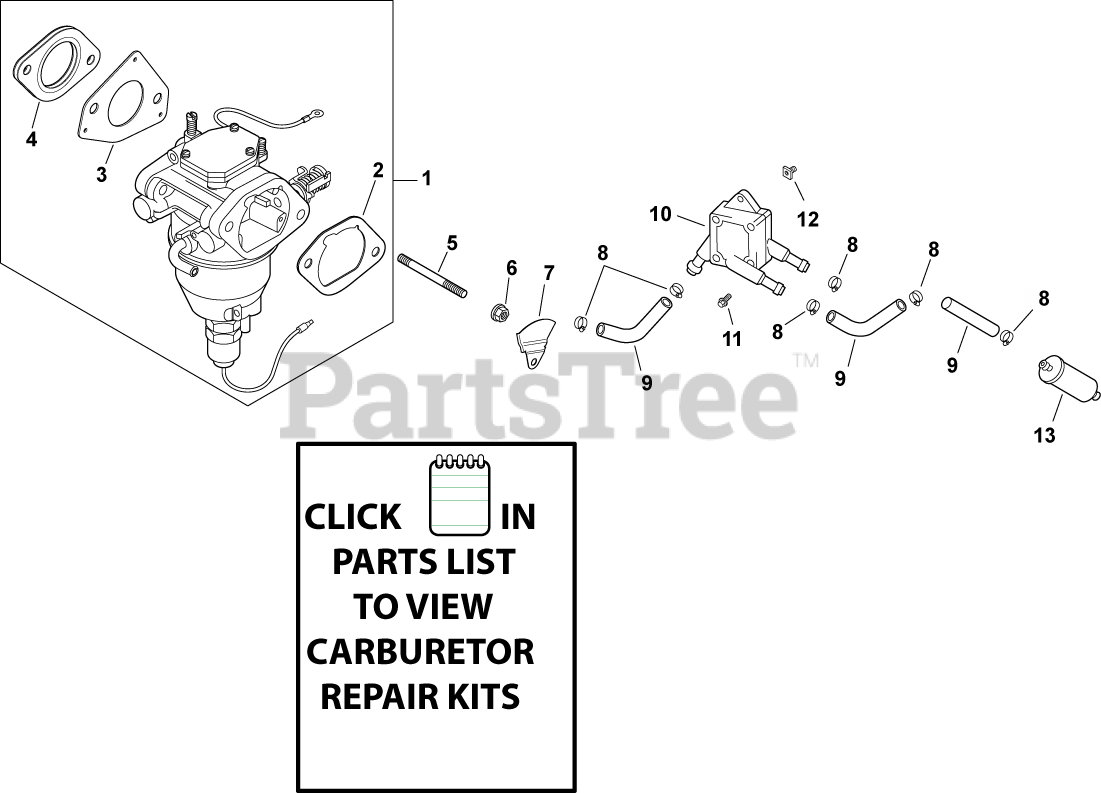

Kohler CV22-75517 - Kohler Command PRO Engine, Made for MTD, 23hp, 17.2kW Fuel System 8-24-422 Parts Lookup with Diagrams

1

Kohler 24 853 61-S

CARBURETOR KIT-USE 24 853 169-S

(Superseded to 24 853 303-S) 

Note: (includes 2-4)

$337.99

$

In Stock, only 1 left!

2

Kohler 24 041 14-S

GASKET, AIR CLEANER BASE

$2.99

$

In Stock, Qty 9

3

Kohler 24 041 52-S

GASKET, CARBURETOR

(Superseded to 24 041 91-S) 

$5.49

$

In Stock, Qty 8

4

Kohler 24 041 15-S

GASKET, CARBURETOR

$15.99

$

In Stock, only 1 left!

5

Kohler M-629095-S

STUD,M6X1.0X96

$3.99

$

Usually ships in 2-5 days

6

Kohler M-641060-S

NUT, FLG M6X1.0

$4.49

$

In Stock, Qty 8

7

Kohler 24 063 51-S

BAFFLE, SPIT-BACK CUP-USE 24 063 105-S

(Superseded to 24 063 105-S) 

$8.99

$

Usually ships in 2-5 days

8

Kohler 25 237 14-S

CLAMP, HOSE (KM)-USE 25 237 31-S

(Superseded to 25 237 31-S) 

$4.99

$

In Stock, only 2 left!

9

Kohler 25 111 34-S

HOSE,LW PERM.FUEL 24.00"-USE 25 111 81-S

(Superseded to 25 111 81-S) 

$17.99

$

In Stock, Qty 6

10

Kohler 24 393 16-S

PUMP, FUEL

$32.99

$

In Stock, Qty 13

11

Kohler 24 086 12-S

SCREW, TAP M6X1.7X18

$

Not available 

12

Kohler 25 100 37-S

NUT, PLASTIC - BLACK

$2.49

$
