CV22-75512 - Kohler Command PRO Engine, Made for Snapper, 23hp, 17.2kW Blower Housing & Baffles 6-24-235 Parts Diagram

Command PRO Engine, Made for Snapper, 23hp, 17.2kW

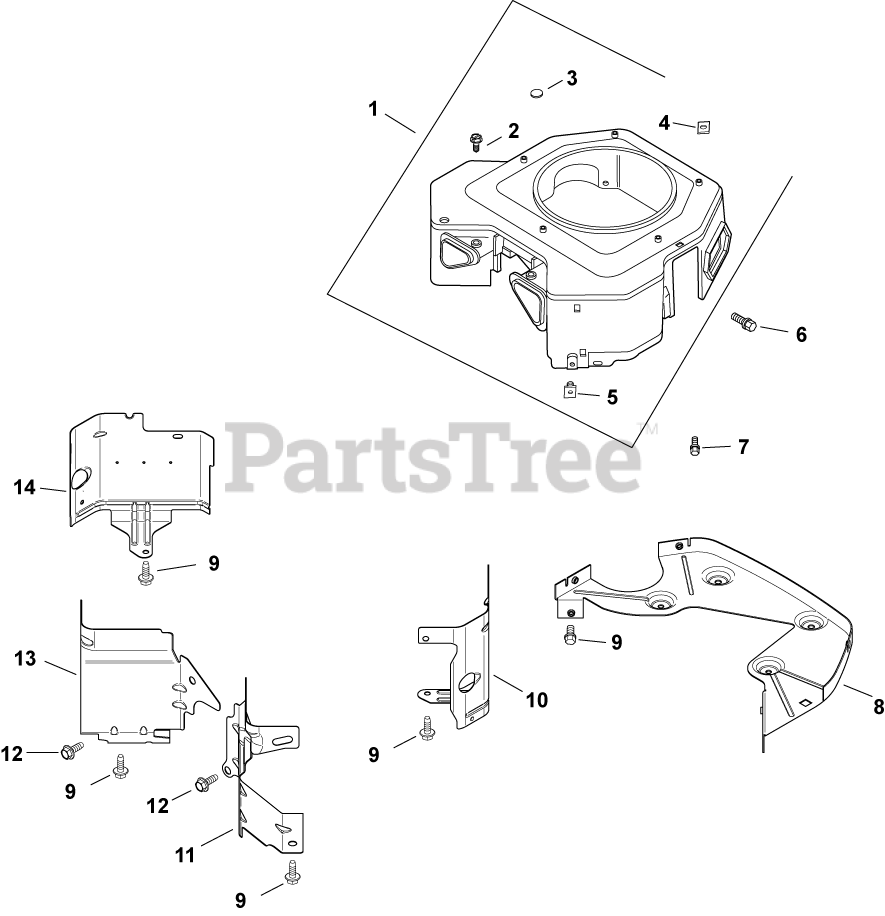

Blower Housing & Baffles 6-24-235 Parts Diagram

  • Title

1

Kohler 24 027 189-S

KIT, BLOWER HOUSING ASSY-(#24027488S)
(Superseded to 24 027 488-S)

Note: (includes 2-5, 25 086 43-S, 25 099 30-S)

$178.99

$

Usually ships in 2-5 days

0

2

Kohler M-545016-S

SCREW,FLG THD FRM M5X0.8X16-(#25086398S)
(Superseded to 25 086 398-S)

$3.99

$

Usually ships in 2-5 days

0

3

Kohler 25 139 16-S

PLUG, BUTTON 9/16

$4.49

$

Usually ships in 2-5 days

0

4

Kohler 24 100 01-S

NUT, PLASTIC (KM)-USE 25 100 37-S
(Superseded to 25 100 37-S)

$2.49

$

In Stock, Qty 7

0

5

Kohler 24 100 02-S

NUT, PLASTIC

$2.49

$

Usually ships in 2-5 days

0

6

Kohler M-561016-S

SCREW - USE M-545016-S
(Superseded to M-545016-S)

$2.49

$

In Stock, Qty 15

0

7

Kohler M-545020-S

SCREW, FLG THD FRM M5X.8X20-(#25086399S)
(Superseded to 25 086 473-S)

$2.49

$

In Stock, Qty 20+

0

8

Kohler 24 146 55-S

PLATE, BACKING-USE 24 146 59-S
(Superseded to 24 146 59-S)

$15.99

$

In Stock, only 1 left!

0

9

Kohler M-645016-S

SCREW,FLG THD FRM M6X1.0X16-(#25086397S)
(Superseded to 25 086 397-S)

$3.99

$

In Stock, Qty 13

0

10

Kohler 24 063 88-S

KIT, CYL BAFFEL #2 SIDE

$28.99

$

Usually ships in 2-5 days

0

11

Kohler 24 063 69-S

BAFFLE, VALLEY #2 SIDE-USE 24 063 94-S
(Superseded to 24 063 94-S)

$9.49

$

Usually ships in 2-5 days

0

12

Kohler M-545010-S

SCREW, FLG THD FRM M5X.8X10

$4.49

$

In Stock, only 3 left!

0

13

Kohler 24 063 60-S

BAFFLE, VALLEY (CV)-USE 24 063 93-S
(Superseded to 24 063 93-S)

$6.49

$

In Stock, only 1 left!

0

14

Kohler 24 063 85-S

KIT, CYL BAFFEL #1 SIDE

$17.99

$

In Stock, only 1 left!

0

2408618-S

Kohler 24 086 18-S

SCREW, PHL HD #11-16X7/8"

Note: NOT ILLUSTRATED

$2.49

$

Usually ships in 2-5 days

0

2411212-S

Kohler 24 112 12-S

SPACER
(Superseded to 24 755 241-S)

Note: NOT ILLUSTRATED

$90.99

$

In Stock, Qty 6

0

2412644-S

Kohler 24 126 44-S

BRACKET, BREATHER SEPARATOR

Note: NOT ILLUSTRATED

$5.49

$

Usually ships in 2-5 days

0

2444502-S

Kohler 24 445 02-S

STRAP, BREATHER - USE 24 755 241-S
(Superseded to 24 755 241-S)

Note: NOT ILLUSTRATED

$90.99

$

In Stock, Qty 6

0
