CV22-75511 - Kohler Command PRO Engine, Made for Ransomes, 23hp, 17.2kW Fuel System 8-24-227 Parts Diagram

Command PRO Engine, Made for Ransomes, 23hp, 17.2kW

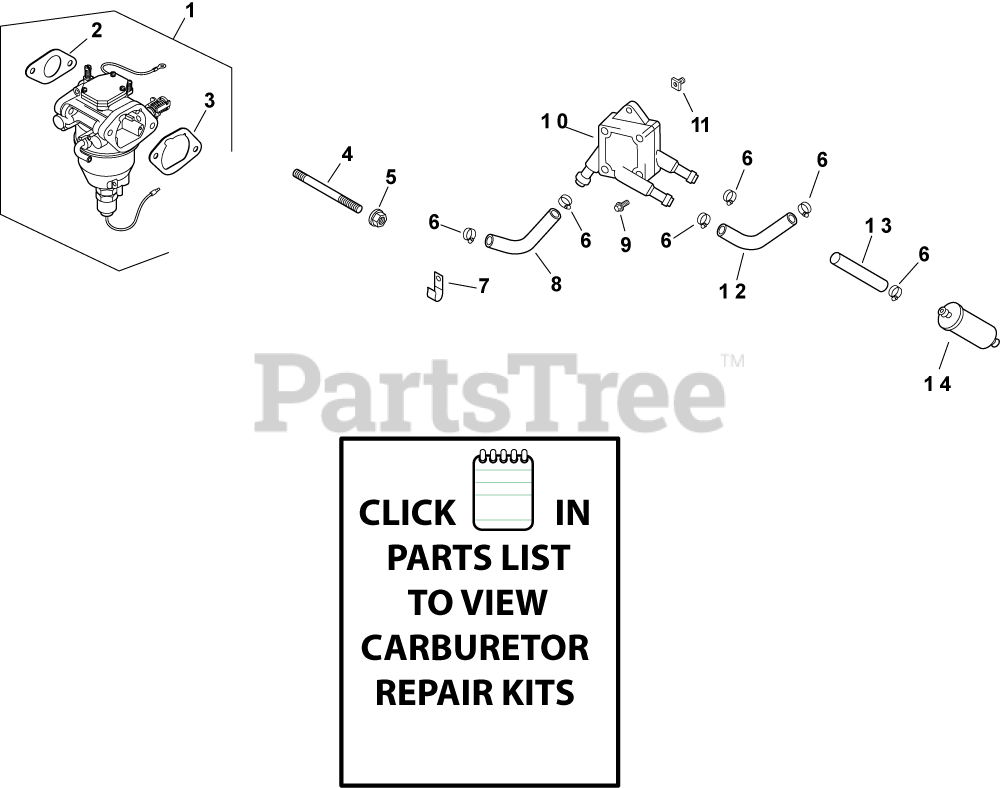

Fuel System 8-24-227 Parts Diagram

  • Title

1

Kohler 24 853 60-S

USE 24 853 106-S KIT
(Superseded to 24 853 106-S)

Note: (includes 2,3)

$434.99

$

Usually ships in 2-5 days

0

2

Kohler 24 041 15-S

GASKET, CARBURETOR

$15.99

$

In Stock, only 1 left!

0

3

Kohler 24 041 14-S

GASKET, AIR CLEANER BASE

$2.99

$

In Stock, Qty 8

0

4

Kohler M-629128-S

STUD,M6X1.0X128

$13.99

$

Usually ships in 2-5 days

0

5

Kohler M-641060-S

NUT, FLG M6X1.0

$4.49

$

In Stock, Qty 8

0

6

Kohler 25 237 14-S

CLAMP, HOSE (KM)-USE 25 237 31-S
(Superseded to 25 237 31-S)

$4.99

$

In Stock, only 3 left!

0

7

Kohler 47 154 01-S

CLIP, CABLE

$5.49

$

In Stock, only 4 left!

0

8

Kohler 24 353 12-S

LINE, FUEL 11"

$3.99

$

Usually ships in 2-5 days

0

9

Kohler 24 086 12-S

SCREW, TAP M6X1.7X18

$

$

Not available

10

Kohler 24 393 16-S

PUMP, FUEL

$32.99

$

In Stock, Qty 18

0

11

Kohler 24 100 01-S

NUT, PLASTIC (KM)-USE 25 100 37-S
(Superseded to 25 100 37-S)

$2.49

$

In Stock, Qty 7

0

12

Kohler 52 353 22-S

LINE, FLEXIBLE FUEL 12.3"-USE 25 111 81-
(Superseded to 25 111 81-S)

$17.99

$

In Stock, only 4 left!

0

13

Kohler 25 353 03-S

LINE, FLEXIBLE FUEL

$19.99

$

Usually ships in 2-5 days

0

14

Kohler 25 050 08-S

USE 25 050 22-S FUEL FILTER
(Superseded to 25 050 22-S)

$8.99

$

In Stock, Qty 20+

0
