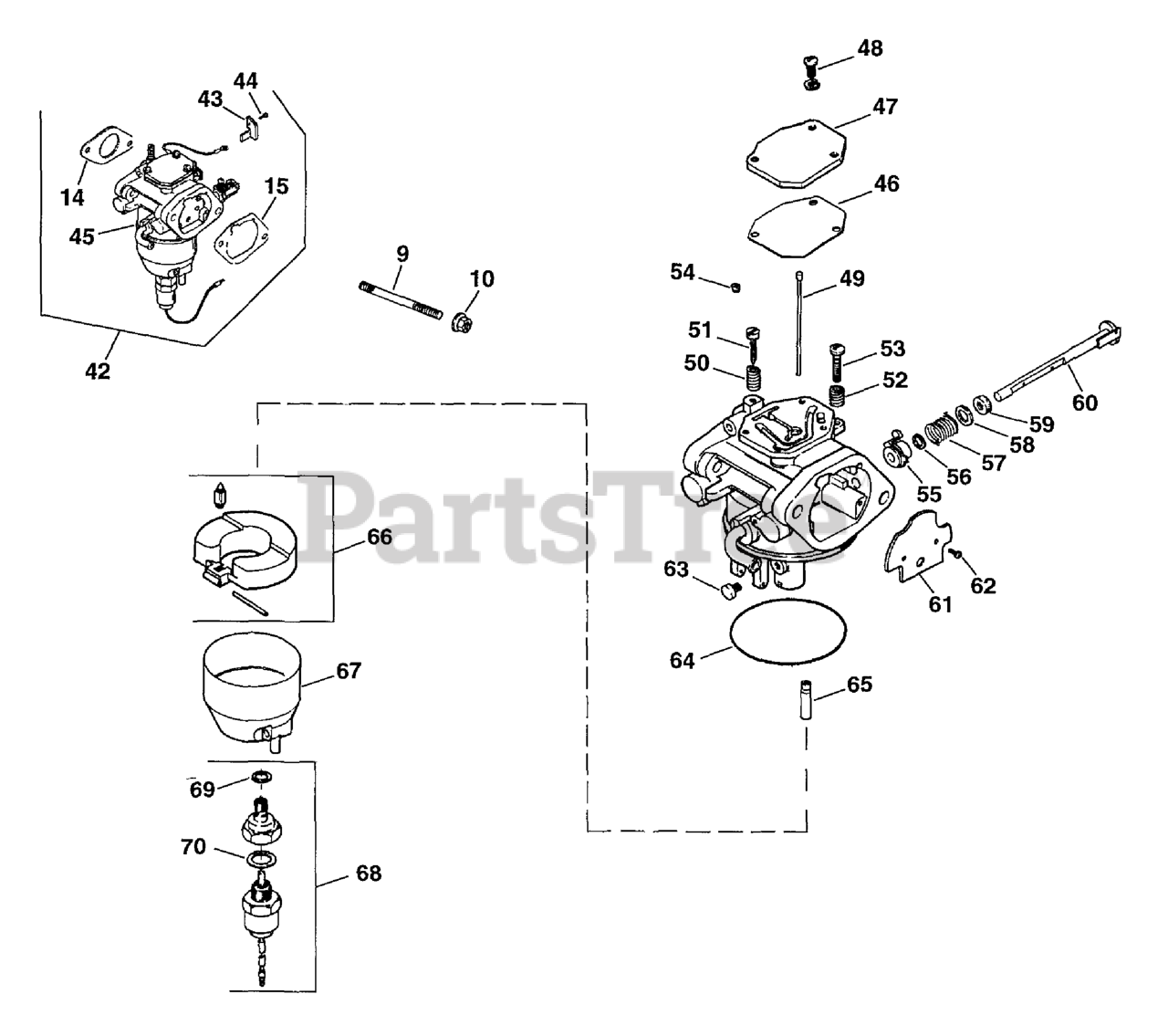

CV22-67516 - Kohler Command PRO Engine, Made for Exmark, 23hp, 17.2kW Fuel System (Cont.) 8-24-54 (TP-2461) Rev 10/11/2006 Parts Diagram

Command PRO Engine, Made for Exmark, 23hp, 17.2kW

Fuel System (Cont.) 8-24-54 (TP-2461) Rev 10/11/2006 Parts Diagram

  • Title

9

Kohler M-0629128

Stud, M6x1.0x128
(Superseded to M-629128-S)

$13.99

$

Usually ships in 2-5 days

0

10

Kohler M-0641060

NUT - USE M-641060
(Superseded to M-641060)

$4.49

$

In Stock, Qty 11

0

14

Kohler 24 041 15-S

GASKET, CARBURETOR

$15.99

$

In Stock, only 1 left!

0

15

Kohler 24 041 14-S

GASKET, AIR CLEANER BASE

$2.99

$

In Stock, Qty 9

0

45

Kohler 24 053 07

Carburetor assembly

Note: Includes 46-70, carburetor repair kit 24-757-06, high altitude kits 24-755-25 & 24-755-26

$

$

Not available

46

Kohler 24 041 18

KIT - USE 24 757 20
(Superseded to 24 757 20)

$62.99

$

In Stock, only 1 left!

0

47

Kohler 24 096 13-S

COVER, PASSAGE - DISCONTINUED

$

$

Not available

48

Kohler 24 086 21-S

SCREW DISCONTINUED

$

$

Not available

49

Kohler 24 337 06-S

JET, SLOW - DISCONTINUED

$

$

Not available

50

Kohler 24 089 23

KIT - USE 24 757 18
(Superseded to 24 757 18)

$79.99

$

In Stock, only 2 left!

0

51

Kohler 24 086 22

SCREW, IDLE ADJUST - USE 24 757 18
(Superseded to 24 757 18-S)

$79.99

$

In Stock, only 2 left!

0

52

Kohler 24 089 24-S

SPRING, THROTTLE - DISC

$

$

Not available

53

Kohler 24 086 19

KIT - USE 24 757 18
(Superseded to 24 757 18)

$79.99

$

In Stock, only 2 left!

0

54

Kohler 24 337 07-S

JET, AIR BLEED - DISC.

$

$

Not available

55

Kohler 24 090 10-S

USE 24 757 19-S KIT
(Superseded to 24 757 19-S)

$153.99

$

In Stock, only 1 left!

0

56

Kohler 24 141 04-S

RING, CHOKE LEVER-USE 24 757 19-S
(Superseded to 24 757 19-S)

$153.99

$

In Stock, only 1 left!

0

57

Kohler 24 089 22-S

USE 24 757 19-S KIT
(Superseded to 24 757 19-S)

$153.99

$

In Stock, only 1 left!

0

58

Kohler 24 241 01-S

COLLAR, CHOKE-USE 24 757 19-S
(Superseded to 24 757 19-S)

$153.99

$

In Stock, only 1 left!

0

59

Kohler 24 468 05-S

WASHER-USE 24 757 19-S
(Superseded to 24 757 19-S)

$153.99

$

In Stock, only 1 left!

0

60

Kohler 24 144 15-S

SHAFT, CHOKE-USE 24 757 19-S
(Superseded to 24 757 19-S)

$153.99

$

In Stock, only 1 left!

0

61

Kohler 24 462 02

PLATE - USE 24 146 13
(Superseded to 24 146 13)

Note: Replaced by 24-146-13

$153.99

$

In Stock, only 1 left!

0

62

Kohler 24 086 20

SCREW - DISCONTINUED

Note: M3x0.5x4.5 (4)

$

$

Not available

63

Kohler 24 337 19-S

JET, MAIN - DISCONTINUED

$

$

Not available

64

Kohler 24 041 19

KIT - USE 24 757 20
(Superseded to 24 757 20)

$62.99

$

In Stock, only 1 left!

0

65

Kohler 24 369 01-S

NOZZLE DISCONTINUED

$

$

Not available

66

Kohler 24 757 05

KIT - USE 24 757 18
(Superseded to 24 757 18)

$79.99

$

In Stock, only 2 left!

0

67

Kohler 24 234 01-S

CHAMBER, FLOAT

$42.99

$

Usually ships in 2-5 days

0

68

Kohler 24 755 15

KIT - USE 24 757 22
(Superseded to 24 757 22)

Note: Includes 69,70

$217.99

$

In Stock, only 2 left!

0

69

Kohler 24 041 21-S

DISC. SEE PARTS BULLETIN

$

$

Not available

70

Kohler 24 041 20

KIT - USE 24 755 15
(Superseded to 24 755 15)

$217.99

$

In Stock, only 2 left!

0
