CV22-67516 - Kohler Command PRO Engine, Made for Exmark, 23hp, 17.2kW Fuel System 8-24-54 (TP-2461) Rev 10/11/2006 Parts Diagram

Command PRO Engine, Made for Exmark, 23hp, 17.2kW

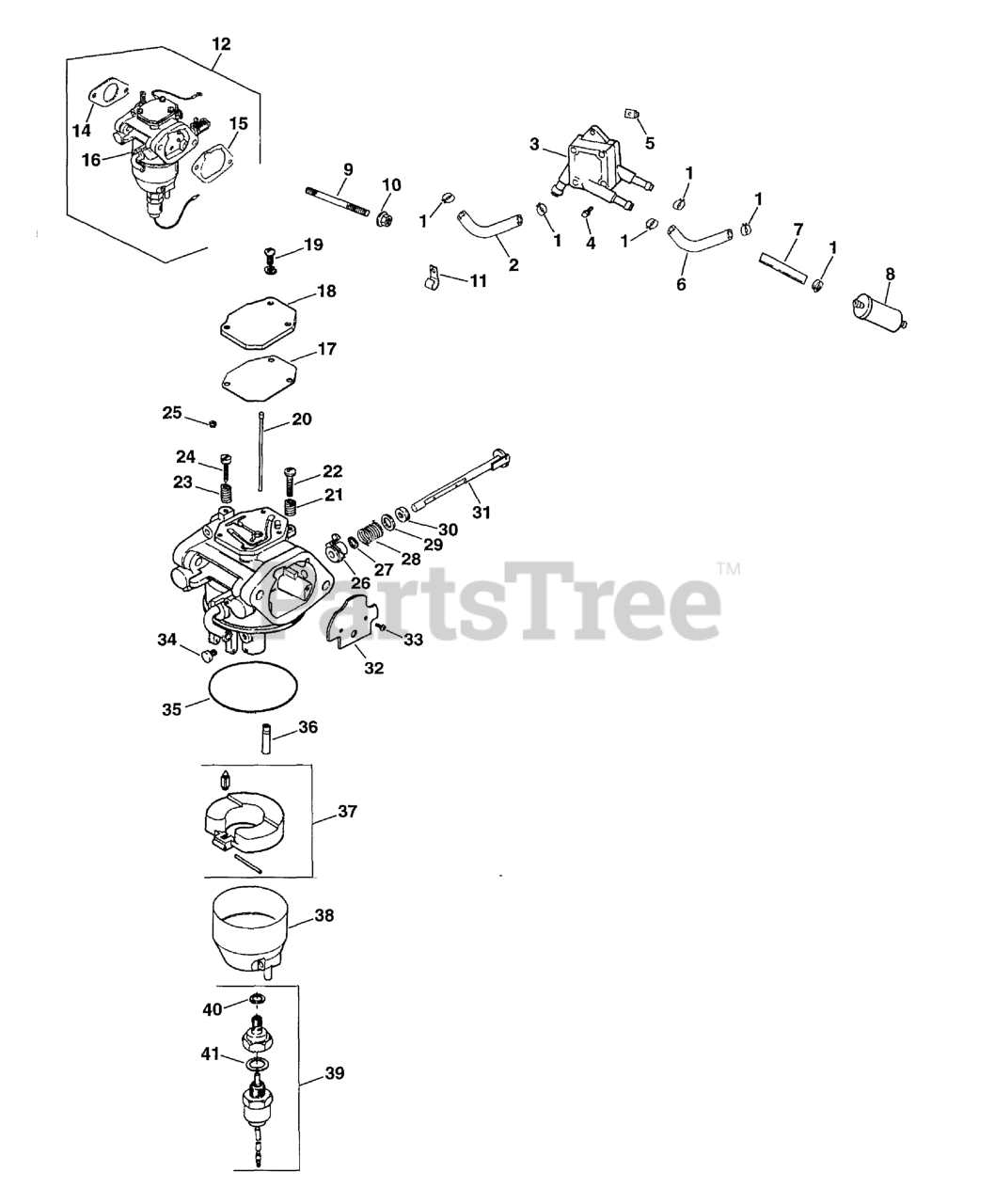

Fuel System 8-24-54 (TP-2461) Rev 10/11/2006 Parts Diagram

  • Title

1

Kohler X-426-9-S

CLAMP, HOSE 1/2" USE 25 237 14-S
(Superseded to 25 237 14-S)

$4.99

$

In Stock, only 2 left!

0

2

Kohler 15 353 04-S

LINE - (#DSC)

$

$

Not available

3

Kohler 24 393 04

PUMP, FUEL - PULSE - USE 24 393 16
(Superseded to 24 393 16)

$32.99

$

In Stock, only 2 left!

0

4

Kohler 24 086 12-S

SCREW, TAP M6X1.7X18

$

$

Not available

5

Kohler 24 100 01-S

NUT, PLASTIC (KM)-USE 25 100 37-S
(Superseded to 25 100 37-S)

$2.49

$

In Stock, Qty 13

0

6

Kohler 24 353 03-S

LINE, FLEXIBLE FUEL 10.92"-USE 24 353 12
(Superseded to 24 353 12-S)

$3.99

$

Usually ships in 2-5 days

0

9

Kohler M-0629128

Stud, M6x1.0x128
(Superseded to M-629128-S)

$13.99

$

Usually ships in 2-5 days

0

10

Kohler M-0641060

NUT - USE M-641060
(Superseded to M-641060)

$4.49

$

In Stock, Qty 11

0

11

Kohler 47 154 01-S

CLIP, CABLE

$5.49

$

In Stock, Qty 5

0

12

Kohler 24 853 08

CARBURETOR - USE 24 853 17
(Superseded to 24 853 17)

Note: Includes 14,15, carburetor assembly 24-053-07

$490.99

$

Usually ships in 2-5 days

0

12

Kohler 24 853 17-S

KIT, CARBURETOR W/GASKET

Note: Includes 14,15, carburetor assembly 24-053-17

$490.99

$

Usually ships in 2-5 days

0

14

Kohler 24 041 15-S

GASKET, CARBURETOR

$15.99

$

In Stock, only 1 left!

0

15

Kohler 24 041 14-S

GASKET, AIR CLEANER BASE

$2.99

$

In Stock, Qty 9

0

16

Kohler 24 053 17

USE 24 853 17

Note: Includes 17-41, carburetor repair kit 24-757-06, high altitude kits 24-755-25 & 24-755-26

$

$

Not available

17

Kohler 24 041 18

KIT - USE 24 757 20
(Superseded to 24 757 20)

$62.99

$

In Stock, only 1 left!

0

18

Kohler 24 096 13-S

COVER, PASSAGE - DISCONTINUED

$

$

Not available

19

Kohler 24 086 21-S

SCREW DISCONTINUED

$

$

Not available

20

Kohler 24 337 11

JET, SLOW - DISCONTINUED

$

$

Not available

21

Kohler 24 089 23

KIT - USE 24 757 18
(Superseded to 24 757 18)

$79.99

$

In Stock, only 2 left!

0

22

Kohler 24 086 22

SCREW, IDLE ADJUST - USE 24 757 18
(Superseded to 24 757 18-S)

$79.99

$

In Stock, only 2 left!

0

23

Kohler 24 089 24-S

SPRING, THROTTLE - DISC

$

$

Not available

24

Kohler 24 086 19

KIT - USE 24 757 18
(Superseded to 24 757 18)

$79.99

$

In Stock, only 2 left!

0

25

Kohler 24 337 27-S

JET, AIR BLEED - DISC.

$

$

Not available

26

Kohler 24 090 10-S

USE 24 757 19-S KIT
(Superseded to 24 757 19-S)

$153.99

$

In Stock, only 1 left!

0

27

Kohler 24 141 04-S

RING, CHOKE LEVER-USE 24 757 19-S
(Superseded to 24 757 19-S)

$153.99

$

In Stock, only 1 left!

0

28

Kohler 24 089 22-S

USE 24 757 19-S KIT
(Superseded to 24 757 19-S)

$153.99

$

In Stock, only 1 left!

0

29

Kohler 24 241 01-S

COLLAR, CHOKE-USE 24 757 19-S
(Superseded to 24 757 19-S)

$153.99

$

In Stock, only 1 left!

0

30

Kohler 24 468 05-S

WASHER-USE 24 757 19-S
(Superseded to 24 757 19-S)

$153.99

$

In Stock, only 1 left!

0

31

Kohler 24 144 15-S

SHAFT, CHOKE-USE 24 757 19-S
(Superseded to 24 757 19-S)

$153.99

$

In Stock, only 1 left!

0

32

Kohler 24 146 13-S

PLATE, CHOKE-USE 24 757 19-S
(Superseded to 24 757 19-S)

$153.99

$

In Stock, only 1 left!

0

33

Kohler 24 086 20

SCREW - DISCONTINUED

Note: M3x0.5x4.5 (4)

$

$

Not available

34

Kohler 24 337 20

JET, MAIN - DISCONTINUED

$

$

Not available

35

Kohler 24 041 19

KIT - USE 24 757 20
(Superseded to 24 757 20)

$62.99

$

In Stock, only 1 left!

0

36

Kohler 24 369 01-S

NOZZLE DISCONTINUED

$

$

Not available

37

Kohler 24 757 05

KIT - USE 24 757 18
(Superseded to 24 757 18)

$79.99

$

In Stock, only 2 left!

0

38

Kohler 24 234 01-S

CHAMBER, FLOAT

$42.99

$

Usually ships in 2-5 days

0

39

Kohler 24 755 15

KIT - USE 24 757 22
(Superseded to 24 757 22)

Note: Includes 40,41

$217.99

$

In Stock, only 2 left!

0

40

Kohler 24 041 21-S

DISC. SEE PARTS BULLETIN

$

$

Not available

41

Kohler 24 041 20

KIT - USE 24 755 15
(Superseded to 24 755 15)

$217.99

$

In Stock, only 2 left!

0
