CV20S-65610 - Kohler Command PRO Engine, Made for Cub Cadet, 20hp, 14.9kW Starting System Parts Diagram

Command PRO Engine, Made for Cub Cadet, 20hp, 14.9kW

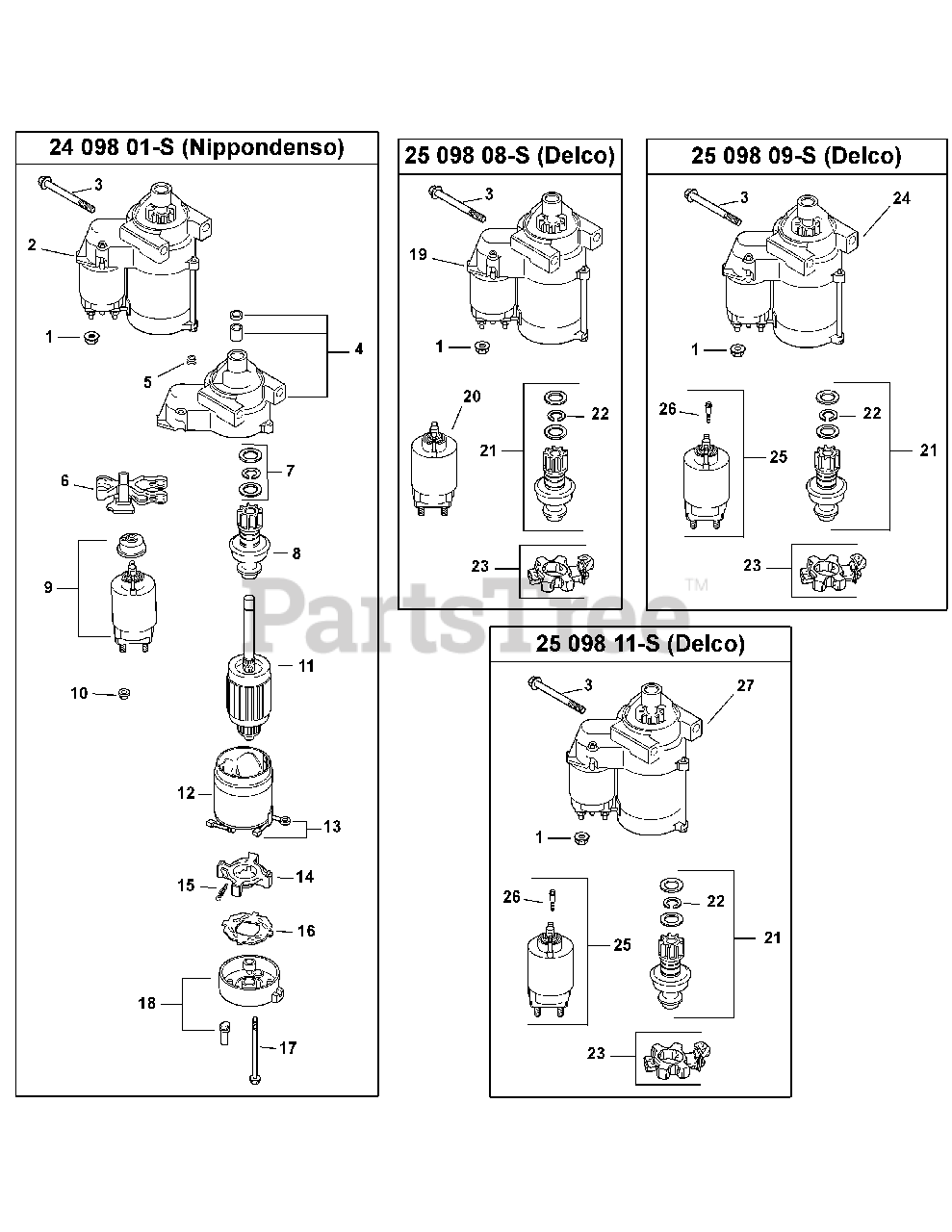

Starting System Parts Diagram

  • Title

1

Cub Cadet 712-3086

NUT, FLANGE M8X1.25

$4.49

$

In Stock, only 2 left!

0

2

Cub Cadet KH-25-098-11-S

STARTER
(Superseded to KH-25-098-24-S)

Note: Replaces 24 098 01-S

$316.99

$

In Stock, Qty 17

0

3

Cub Cadet KH-M-851080-S

SCREW

$4.49

$

In Stock, only 2 left!

0

4

Cub Cadet KH-24-081-04

DRIVE, END CAP

$

$

Not available

5

Cub Cadet KH-52-100-09

NUT

$

$

Not available

6

Cub Cadet KH-12-090-10

LEVER, DRIVE

$

$

Not available

7

Cub Cadet KH-24-755-84

KIT, STARTER REPAIR

$

$

Not available

8

Cub Cadet KH-12-239-01

DRIVE PINION

$

$

Not available

9

Cub Cadet KH-52-435-02

SOLENOID

$499.99

$

Usually ships in 2-5 days

0

10

Cub Cadet KH-52-100-10

NUT

$

$

Not available

11

Cub Cadet KH-12-170-04

ARMATURE

$

$

Not available

12

Cub Cadet KH-12-471-01

FRAME W/BRUSHES

$

$

Not available

13

Cub Cadet KH-52-323-03

BRUSH HOLDER

Note: (Includes 15)

$

$

Not available

14

Cub Cadet KH-52-221-01

BRUSH & SPRING KIT

$

$

Not available

15

Cub Cadet KH-52-089-09

SPRING, BRUSH

$

$

Not available

16

Cub Cadet KH-52-168-01

INSULATOR

$

$

Not available

17

Cub Cadet KH-52-211-05

THRU BOLT

$

$

Not available

18

Cub Cadet KH-24-301-01

COMMUTATOR, END CAP

$

$

Not available

19

Cub Cadet KH-25-098-11-S

STARTER, SOLENOID SHIFT
(Superseded to KH-25-098-24-S)

Note: Replaces 25 098 08-S

$316.99

$

In Stock, Qty 17

0

20

Cub Cadet KH-25-435-04-S

SOLENOID

$

$

Not available

21

Cub Cadet KH-25-755-33-S

KIT, STARTER PINION

Note: (includes 22)

$

$

Not available

22

Cub Cadet KH-25-141-05-S

RING, RETAINING

$3.99

$

Usually ships in 2-5 days

0

23

Cub Cadet KH-25-221-01-S

KIT, BRUSH HOLDER

$70.99

$

Usually ships in 2-5 days

0

24

Cub Cadet KH-25-098-11-S

STARTER
(Superseded to KH-25-098-24-S)

Note: Replaces 25 098 09-S

$316.99

$

In Stock, Qty 17

0

25

Cub Cadet KH-25-435-06-S

KIT, SOLENOID

Note: (Includes 26)

$212.99

$

In Stock, only 2 left!

0

26

Cub Cadet KH-25-086-113-S

SCREW, EXTERNAL TORX HEAD

$15.99

$

Usually ships in 2-5 days

0

27

Cub Cadet KH-25-098-11-S

STARTER, SOLENOID SHIFT, Delco
(Superseded to KH-25-098-24-S)

Note: (Includes 21-23, 25, 26)

$316.99

$

In Stock, Qty 17

0

Service starter components according to the part number printed on the starter. Starter components are NOT interchangeable.

Service starter components according to the part number printed on the starter. Starter components are NOT interchangeable.

$

$
