CV200-3002 - Kohler Command PRO Engine, Basic Version, 9.5 ft-lbs, 200cc 04 CylinderHead/Breather Parts Diagram

Command PRO Engine, Basic Version, 9.5 ft-lbs, 200cc

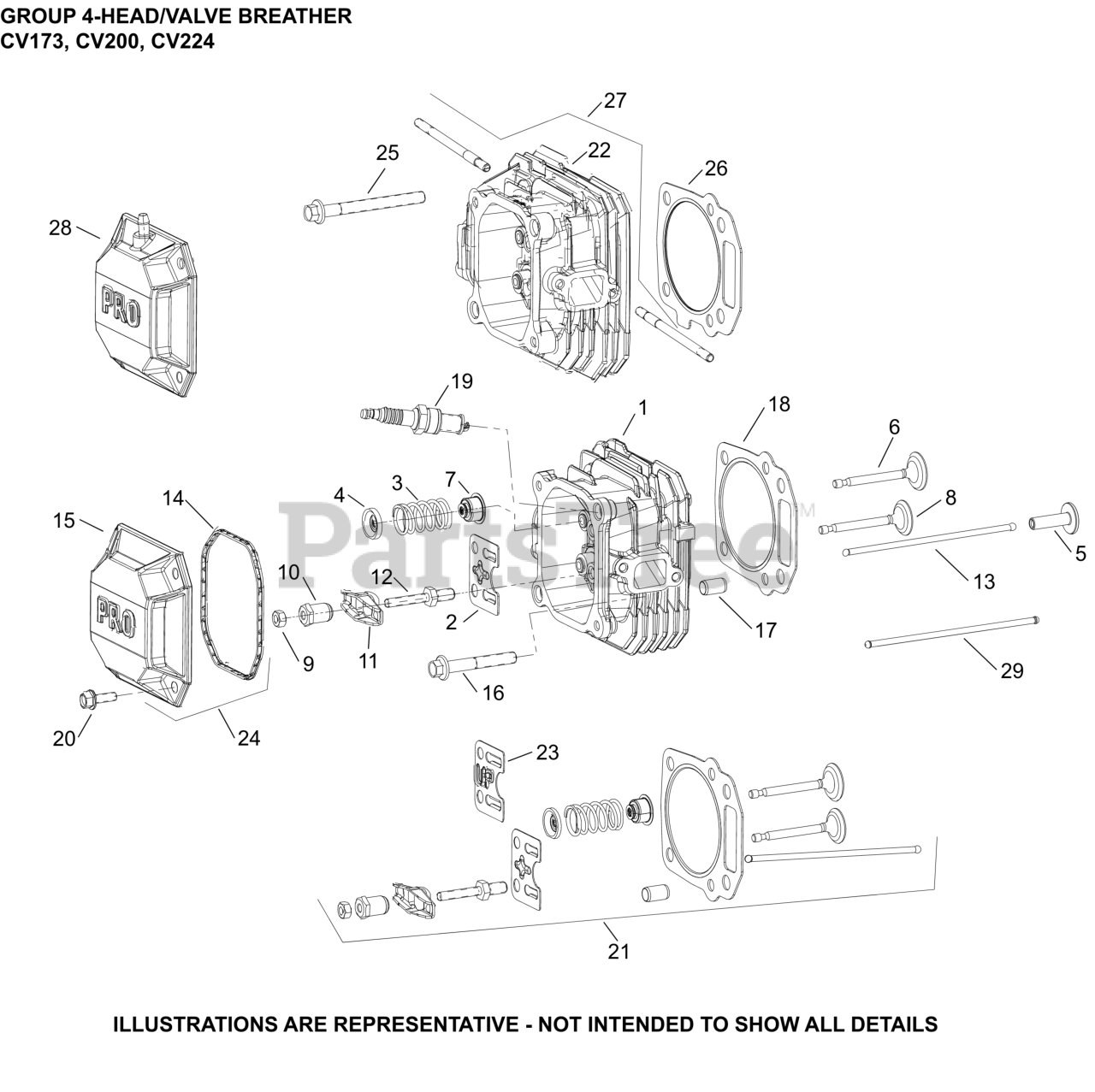

04 CylinderHead/Breather Parts Diagram

3

Kohler 14 089 02-S

SPRING, VALVE

$4.99

$

In Stock, only 2 left!

0

4

Kohler 14 018 02-S

RETAINER, VALVE SPRING

$5.99

$

In Stock, only 2 left!

0

5

Kohler 14 351 01-S

LIFTER, VALVE

$4.99

$

Usually ships in 2-5 days

0

6

Kohler 14 017 01-S

VALVE, INTAKE

$18.99

$

Usually ships in 2-5 days

0

7

Kohler 14 032 16-S

SEAL, VALVE

Note: Before S/N 4921400011

$4.99

$

Usually ships in 2-5 days

0

7

Kohler 14 032 17-S

SEAL, VALVE

Note: After S/N 4921400001

$4.99

$

Usually ships in 2-5 days

0

8

Kohler 14 016 01-S

VALVE, EXHAUST

$21.99

$

Usually ships in 2-5 days

0

9

Kohler 14 100 01-S

NUT, HEX JAM

$2.49

$

In Stock, Qty 5

0

10

Kohler 14 599 01-S

PIVOT, ROCKER ARM

$2.49

$

Usually ships in 2-5 days

0

11

Kohler 14 186 02-S

ARM, ROCKER

$8.49

$

Usually ships in 2-5 days

0

12

Kohler 14 072 29-S

STUD, ROCKER ARM

$6.99

$

Usually ships in 2-5 days

0

13

Kohler 14 411 01-S

ROD, PUSH-(#1741108S)
(Superseded to 17 411 08-S)

$6.49

$

In Stock, Qty 13

0

14

Kohler 14 032 15-S

SEAL, VALVE COVER

$4.99

$

In Stock, Qty 12

0

15

Kohler 14 096 176-S

COVER, VALVE-USE 14 096 184-S
(Superseded to 14 096 184-S)

$27.99

$

Usually ships in 2-5 days

0

17

Kohler 14 380 06-S

DOWEL, CYLINDER HEAD-(#1438013S)
(Superseded to 14 380 13-S)

$2.49

$

Usually ships in 2-5 days

0

19

Kohler 14 132 14-S

PLUG, SPARK 12MM RFI

$13.99

$

In Stock, Qty 6

0

20

Kohler 25 086 459-S

SCREW, HEX FLANGE (M6)

$2.99

$

Usually ships in 2-5 days

0

21

Kohler 14 755 02-S

KIT, VALVE TRAIN
(Superseded to 14 755 46-S)

$83.99

$

Usually ships in 2-5 days

0

22

Kohler 14 318 11-S

KIT, CYLINDER HEAD-USE 14 818 01-S
(Superseded to 14 818 01-S)

Note: Before S/N 4921400011

$152.99

$

In Stock, Qty 6

0

22

Kohler 14 318 14-S

KIT, CYLINDER HEAD-USE 14 818 01-S
(Superseded to 14 818 01-S)

Note: After S/N 4921400001

$152.99

$

In Stock, Qty 6

0

23

Kohler 14 146 28-S

PLATE, PUSHROD GUIDE

$5.99

$

In Stock, only 1 left!

0

24

Kohler 14 096 184-S

COVER, VALVE ASSEMBLY

$27.99

$

Usually ships in 2-5 days

0

25

Kohler 25 086 755-S

SCREW, HEX FLANGE (M8)

$4.99

$

Usually ships in 2-5 days

0

26

Kohler 14 841 05-S

KIT, HEAD GASKET

$29.99

$

In Stock, only 3 left!

0
