CV20-65614 - Kohler Command PRO Engine, Made for Z-Force 44, 20hp, 14.9kW Blower Housing & Baffles 6-24-382 Parts Diagram

Command PRO Engine, Made for Z-Force 44, 20hp, 14.9kW

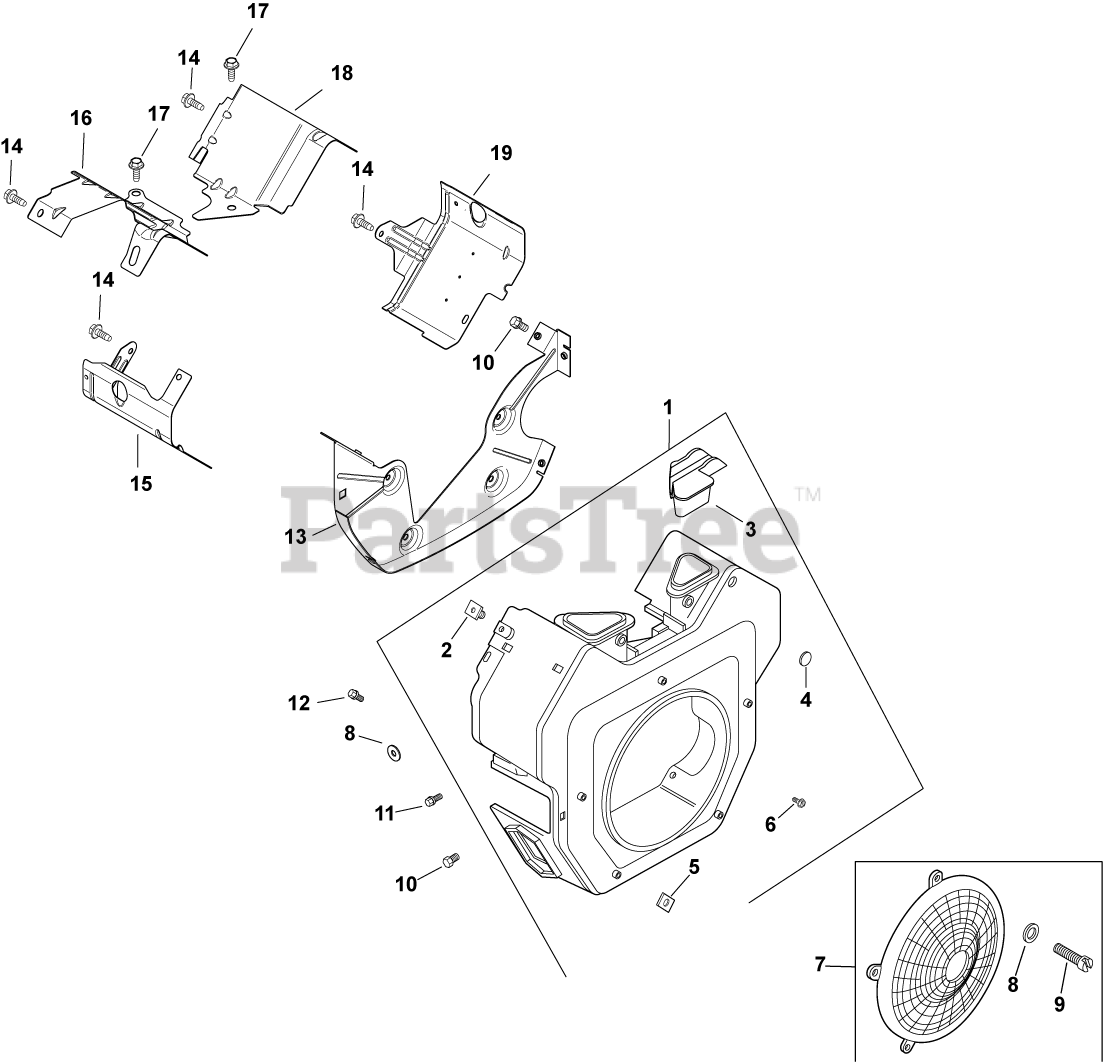

Blower Housing & Baffles 6-24-382 Parts Diagram

  • Title

1

Kohler 24 027 196-S

KIT, BLOWER HOUSING ASSY-(#24027492S)
(Superseded to 24 027 492-S)

Note: (includes 2-6 & 24 332 01-S)

$136.99

$

Usually ships in 2-5 days

0

2

Kohler 24 100 02-S

NUT, PLASTIC

$2.49

$

Usually ships in 2-5 days

0

3

Kohler 24 096 85-S

COVER, BLOWER HOUSING-USE 24 096 119-S
(Superseded to 24 096 161-S)

$2.49

$

In Stock, only 1 left!

0

4

Kohler 25 139 16-S

PLUG, BUTTON 9/16

$4.49

$

Usually ships in 2-5 days

0

5

Kohler 24 100 01-S

NUT, PLASTIC (KM)-USE 25 100 37-S
(Superseded to 25 100 37-S)

$2.49

$

In Stock, Qty 9

0

6

Kohler 25 086 91-S

SCREW, WSH HD TAP #8-18X1/2"

$3.49

$

Usually ships in 2-5 days

0

7

Kohler 24 755 81-S

KIT, FIXED GUARD

Note: (includes 8,9 & 24 332 01-S)

$52.99

$

In Stock, only 2 left!

0

8

Kohler 24 468 10-S

WASHER, FLAT 7/32"

$2.49

$

In Stock, only 1 left!

0

9

Kohler 24 086 35-S

SCREW, LBD SCKT PAN M5X0.8X10

$2.49

$

Usually ships in 2-5 days

0

10

Kohler M-645016-S

SCREW,FLG THD FRM M6X1.0X16-(#25086397S)
(Superseded to 25 086 397-S)

$3.99

$

In Stock, Qty 15

0

11

Kohler M-561016-S

SCREW - USE M-545016-S
(Superseded to M-545016-S)

$2.49

$

In Stock, Qty 15

0

12

Kohler M-545016-S

SCREW,FLG THD FRM M5X0.8X16-(#25086398S)
(Superseded to 25 086 398-S)

$3.99

$

Usually ships in 2-5 days

0

13

Kohler 24 146 50-S

PLATE, BACKING-USE 24 146 59-S
(Superseded to 24 146 59-S)

$15.99

$

In Stock, only 1 left!

0

14

Kohler M-545020-S

SCREW, FLG THD FRM M5X.8X20-(#25086399S)
(Superseded to 25 086 473-S)

$2.49

$

In Stock, Qty 6

0

15

Kohler 24 063 76-S

BAFFLE, LEFT BARREL -USE 24 063 88-S
(Superseded to 24 063 88-S)

$28.99

$

Usually ships in 2-5 days

0

16

Kohler 24 063 70-S

BAFFLE, VALLEY #2 SIDE-USE 24 063 94-S
(Superseded to 32 063 02-S)

$9.49

$

Usually ships in 2-5 days

0

17

Kohler M-545010-S

SCREW, FLG THD FRM M5X.8X10

$4.49

$

In Stock, only 2 left!

0

18

Kohler 24 063 59-S

BAFFLE, VALLEY (CH)-USE 24 063 93-S
(Superseded to 32 063 03-S)

$6.49

$

In Stock, only 1 left!

0

19

Kohler 24 063 81-S

BAFFLE, RIGHT BARREL-USE 24 063 85-S
(Superseded to 24 063 85-S)

$17.99

$

In Stock, only 1 left!

0

2515411-S

Kohler 25 154 11-S

CLIP, REPAIR (SPEED NUT)

Note: NOT ILLUSTRATED

$3.99

$

In Stock, only 1 left!

0

2433201-S

Kohler 24 332 01-S

INSERT, THREADED USE 25 332 19-S
(Superseded to 25 332 19-S)

Note: NOT ILLUSTRATED

$3.49

$

In Stock, Qty 5

0

4103710-S

Kohler 41 037 10-S

NAMEPLATE, SERVICE

Note: NOT ILLUSTRATED

$8.99

$

In Stock, only 4 left!

0
