CV20-65610 - Kohler Command PRO Engine, Made for Commercial Turf Products, 20hp, 14.9kW Ignition/Electrical 5-24-210 CV18-750 Parts Diagram

Command PRO Engine, Made for Commercial Turf Products, 20hp, 14.9kW

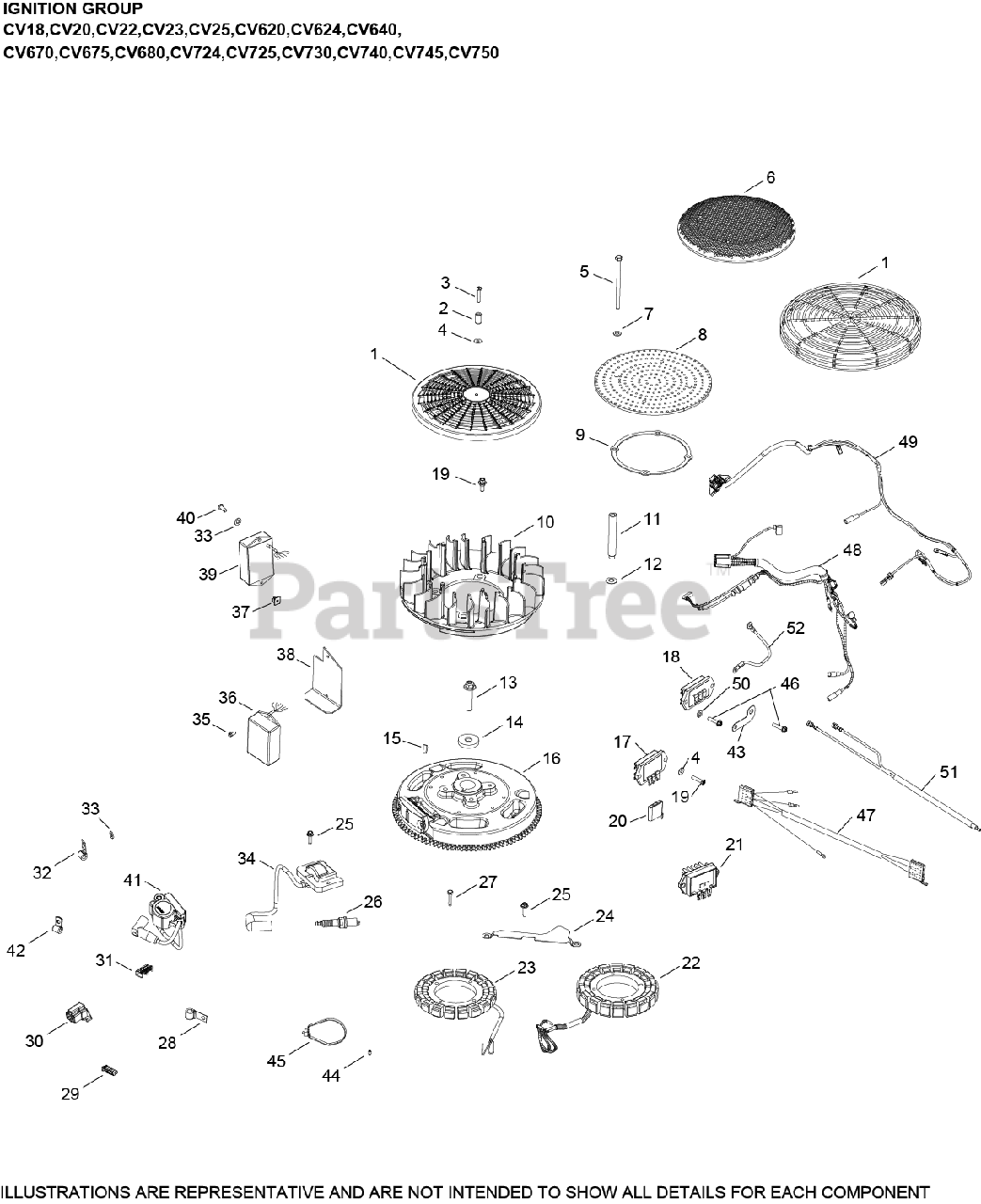

Ignition/Electrical 5-24-210 CV18-750 Parts Diagram

  • Title

1

Kohler 54 755 15-S

KIT, GRASS SCREEN

$41.99

$

In Stock, only 1 left!

0

3

Kohler M-403025-S

SCREW, SLT HD CAP M4X0.7X25

$4.99

$

In Stock, only 1 left!

0

10

Kohler 24 157 12-S

FAN

$22.99

$

In Stock, only 1 left!

0

13

Kohler 12 086 14-S

SCREW, FLG M10X1.5X45 - (#25086361S)
(Superseded to 25 086 361-S)

$3.99

$

In Stock, Qty 12

0

14

Kohler 12 468 03-S

WASHER, FLAT 13/32"
(Superseded to 25 468 09-S)

$6.49

$

In Stock, only 2 left!

0

15

Kohler X-42-15-S

KEY, 3/16" X 5/8"

$2.99

$

In Stock, Qty 8

0

16

Kohler 24 025 55-S

FLYWHEEL

$

$

Not available

18

Kohler 41 403 10-S

REGULATOR/RECTIFIER
(Superseded to 25 403 37-S)

$

$

Not available

20

Kohler 25 155 41-S

CONNECTOR

$24.99

$

In Stock, only 1 left!

0

23

Kohler 237878-S

KIT, 15 / 20 AMP STATOR

$149.99

$

In Stock, Qty 15

0

25

Kohler 25 086 472-S

SCREW, THREAD FORMING

$2.49

$

In Stock, only 2 left!

0

25

Kohler 25 086 399-S

SCREW, THREAD FORMING - USE 25 086 473-S
(Superseded to 25 086 473-S)

$2.49

$

In Stock, Qty 6

0

26

Kohler 12 132 02-S

PLUG, SPARK (STD)

$3.49

$

In Stock, Qty 20+

0

27

Kohler 25 086 402-S

SCREW, THREAD FORMING

$2.49

$

In Stock, only 2 left!

0

28

Kohler 235173-S

CLIP, CABLE

$11.99

$

Usually ships in 2-5 days

0

30

Kohler 25 155 06-S

CONNECTOR

$8.49

$

Usually ships in 2-5 days

0

34

Kohler 24 584 45-S

KIT, MODULE IGNTN (CDI FIXED)

$

$

Not available

42

Kohler 210281-S

CLIP

$7.49

$

Usually ships in 2-5 days

0

45

Kohler 25 454 07-S

TIE

$2.49

$

Usually ships in 2-5 days

0

49

Kohler 24 176 150-S

HARNESS, WIRING ASSEMBLY

$44.99

$

Usually ships in 2-5 days

0

50

Kohler 25 468 30-S

WASHER, LOCK

$2.49

$

Usually ships in 2-5 days

0

51

Kohler 24 176 41-S

LEAD, DUPLEX

$6.49

$

In Stock, only 2 left!

0

52

Kohler 24 518 43-S

LEAD

$2.99

$

Usually ships in 2-5 days

0

2551834-S

Kohler 25 518 34-S

LEAD, 20/25 AMP B+

Note: NOT ILLUSTRATED

$6.99

$

Usually ships in 2-5 days

0
