CV20-65581 - Kohler Command PRO Engine, Made for Bieffebi, 20hp, 14.9kW Crankcase 2-24-264 CV18-750 Parts Diagram

Command PRO Engine, Made for Bieffebi, 20hp, 14.9kW

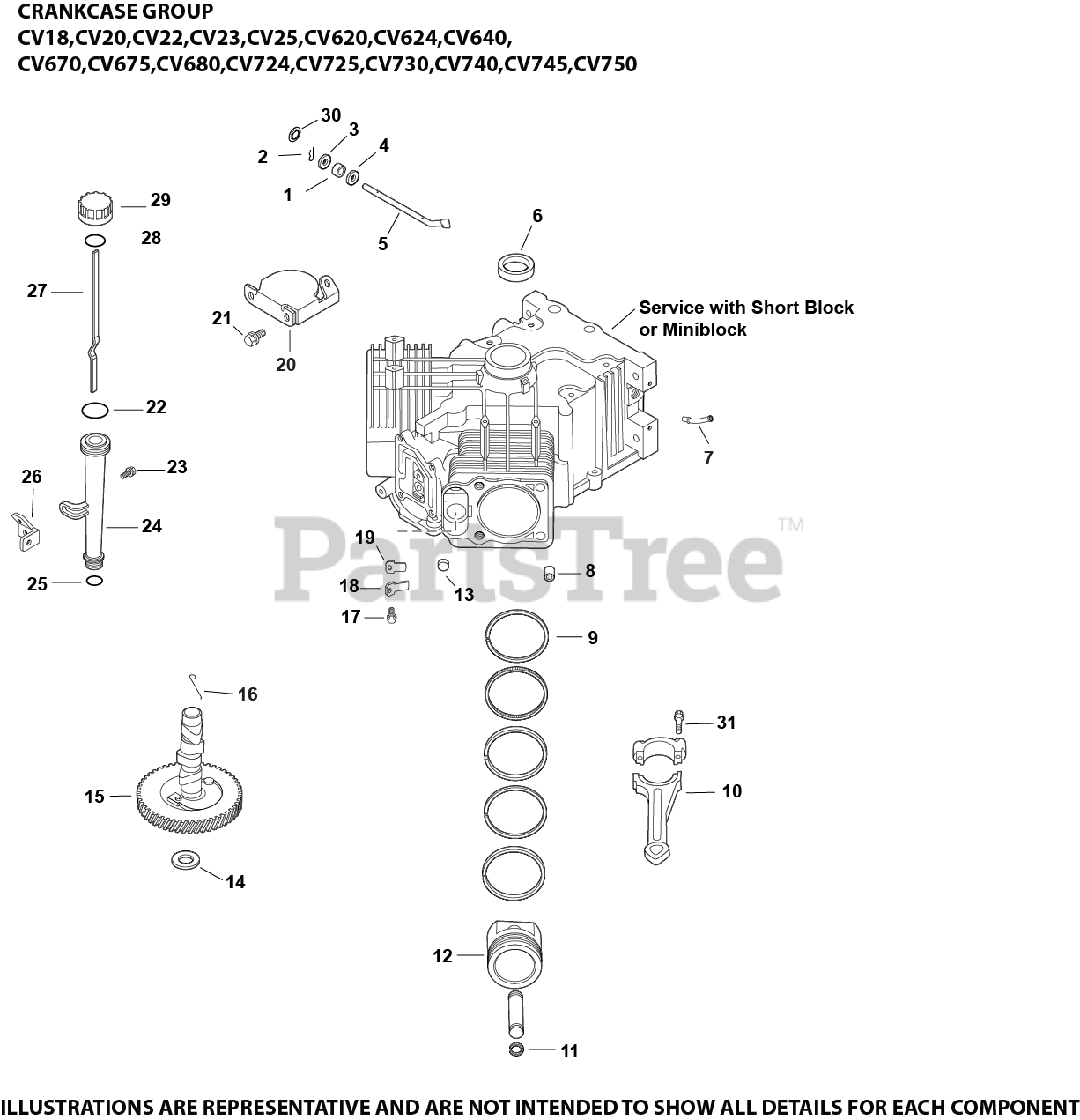

Crankcase 2-24-264 CV18-750 Parts Diagram

  • Title

1

Kohler 28 032 09-S

SEAL, GOVERNOR CROSS SHAFT

$3.49

$

In Stock, Qty 6

0

3

Kohler M-931010-S

WASHER, FLAT 9 MM

$2.49

$

In Stock, only 2 left!

0

4

Kohler 24 468 15-S

WASHER, FLAT 11/32"

$2.49

$

In Stock, Qty 5

0

5

Kohler 24 144 38-S

SHAFT, GOVERNOR CROSS
(Superseded to 24 144 39-S)

$41.99

$

Usually ships in 2-5 days

0

6

Kohler 24 032 19-S

SEAL, OIL (HELIX LIP)

$7.49

$

In Stock, Qty 20+

0

7

Kohler 24 294 13-S

FITTING

$11.99

$

Usually ships in 2-5 days

0

8

Kohler 24 380 16-S

PIN, LOCATING

$4.49

$

In Stock, only 3 left!

0

9

Kohler 24 108 22-S

RING SET (STD)1.5MM TOP RING THICKNESS (STYLE A)

$

$

Not available

9

Kohler 24 108 23-S

RING SET (.08)1.5MM TOP RING THICKNESS - DISCONTINUED (STYLE A)

$

$

Not available

9

Kohler 24 108 24-S

RING SET (.25)1.5MM TOP RING THICKNESS - DISCONTINUED, USE PISTON ASSEMBLY (STYLE A)

$

$

Not available

9

Kohler 24 108 25-S

RING SET (.50)1.5MM TOP RING THICKNESS (STYLE A)

$

$

Not available

10

Kohler 24 067 34-S

KIT, CONNECTING ROD ASSEMBLY USE 25 067 04-S
(Superseded to 25 067 04-S)

$59.99

$

In Stock, only 4 left!

0

11

Kohler 24 018 01-S

RETAINER, PISTON PIN

$2.99

$

In Stock, Qty 7

0

12

Kohler 24 874 46-S

PISTON W/RINGS (STYLE A)(STD) - RING SET 24 108 22-S

$

$

Not available

12

Kohler 24 874 47-S

PISTON W/RINGS (STYLE A)(.08) - RING SET 24 108 23-S - DISCONTINUED

$

$

Not available

12

Kohler 24 874 48-S

PISTON W/RINGS (STYLE A)(.25) - RING SET 24 108 24-S

$

$

Not available

12

Kohler 24 874 49-S

PISTON W/RINGS (STYLE A)(.50) - RING SET 24 108 25-S

$

$

Not available

13

Kohler 52 139 09-S

PLUG, CUP

$4.99

$

In Stock, only 2 left!

0

15

Kohler 24 012 10-S

KIT, CAMSHAFT
(Superseded to 24 012 23-S)

$138.99

$

Usually ships in 2-5 days

0

17

Kohler M-545010-S

SCREW, FLG THD FRM M5X.8X10

$4.49

$

In Stock, only 3 left!

0

18

Kohler 24 018 04-S

RETAINER, BREATHER REED

$2.49

$

In Stock, only 2 left!

0

19

Kohler 24 402 05-S

REED, BREATHER
(Superseded to 24 402 07-S)

$3.99

$

In Stock, Qty 8

0

22

Kohler 12 153 02-S

O-RING, UPPER OIL FILL TUBE

$2.49

$

In Stock, Qty 8

0

24

Kohler 25 123 07-S

TUBE ASSEMBLY

$16.99

$

In Stock, only 1 left!

0

25

Kohler 12 153 01-S

O-RING, LOWER OIL FILL TUBE

$4.99

$

In Stock, Qty 16

0

26

Kohler 24 126 19-S

BRACKET, OIL FILL TUBE USE 24 126 243-S
(Superseded to 24 126 246-S)

$9.49

$

Usually ships in 2-5 days

0

27

Kohler 24 038 04-S

DIPSTICK, ASSY

$19.99

$

In Stock, only 1 left!

0

28

Kohler 25 153 02-S

O-RING, DIPSTICK

$2.49

$

In Stock, only 1 left!

0

29

Kohler 25 755 13-S

KIT, OIL FILL CAP (BLACK)

$13.99

$

In Stock, only 1 left!

0

30

Kohler 24 018 09-S

RETAINER, RING

$2.49

$

Usually ships in 2-5 days

0

31

Kohler 25 086 452-S

KIT, ROD BOLTS
(Superseded to 25 086 677-S)

$2.49

$

In Stock, only 3 left!

0

2535714-S

Kohler 25 357 14-S

Lubricant, Camshaft/Lifter (0.25 oz.)

Note: NOT ILLUSTRATED

$2.49

$

In Stock, only 3 left!

0

M-545013-S

Kohler M-545013-S

SCREW, FLG THD FRM M5X0.8X13

Note: NOT ILLUSTRATED

$2.49

$

In Stock, Qty 7

0
