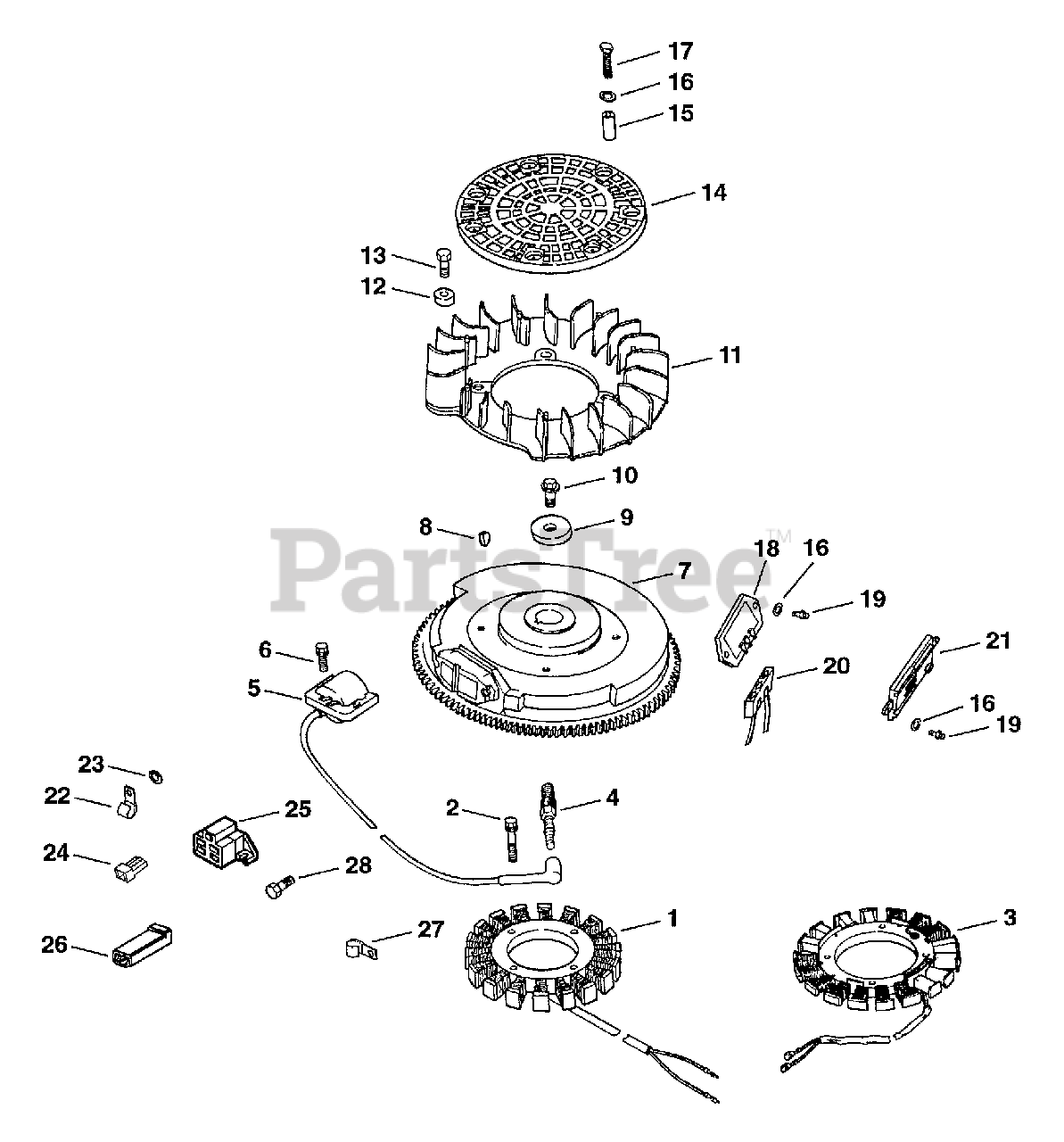

CV20-65538 - Kohler Command PRO Engine, Made for Electrolux Home Products, 20hp, 14.9kW Ignition/Electrical 5-24-169 (TP-2461) Parts Diagram

Command PRO Engine, Made for Electrolux Home Products, 20hp, 14.9kW

Ignition/Electrical 5-24-169 (TP-2461) Parts Diagram

  • Title

1

Kohler 24 085 01

KIT - USE 54 755 09
(Superseded to 54 755 09)

$149.99

$

In Stock, Qty 8

0

2

Kohler M-0548025

SCREW - USE M-548025
(Superseded to M-548025)

$2.49

$

In Stock, only 2 left!

0

4

Kohler 12 132 02-S

PLUG, SPARK (STD)

$4.49

$

In Stock, Qty 20+

0

5

Kohler 24 584 01-S

MODULE, IGNITION-USE 24 584 45-S
(Superseded to 24 584 45-S)

$

$

Not available

6

Kohler M-0545020

Screw, hex. flange M5x0.8x20

$

$

Not available

7

Kohler 24 025 04-S

FLYWHEEL, PAINTED-USE 24 025 55-S
(Superseded to 24 025 55-S)

$

$

Not available

8

Kohler X-42-15-S

KEY, 3/16" X 5/8"

$2.99

$

In Stock, Qty 6

0

9

Kohler 12 468 03-S

WASHER, FLAT 13/32"
(Superseded to 25 468 09-S)

$6.49

$

In Stock, only 2 left!

0

10

Kohler 12 086 14-S

SCREW, FLG M10X1.5X45 - (#25086361S)
(Superseded to 25 086 361-S)

$3.99

$

In Stock, Qty 12

0

11

Kohler 24 157 03-S

USE 24 157 07-S FAN
(Superseded to 24 755 253-S)

$46.99

$

In Stock, only 4 left!

0

12

Kohler 12 112 01

BOLT - USE 25 086 47
(Superseded to 25 086 47)

$2.49

$

In Stock, Qty 7

0

13

Kohler M-0639016

SCREW - USE M-639016
(Superseded to M-639016)

$2.49

$

In Stock, Qty 6

0

14

Kohler 24 162 17

KIT - USE 54 755 15
(Superseded to 54 755 15-S)

$41.99

$

In Stock, only 1 left!

0

15

Kohler 24 112 04-S

SPACER - DISCONTINUED

$

$

Not available

16

Kohler X-25-92-S

WASHER, FLAT 3/16"

$2.49

$

In Stock, only 2 left!

0

16

Kohler X-25-92-S

WASHER, FLAT 3/16"

$2.49

$

In Stock, only 2 left!

0

17

Kohler M-0403025

Screw, hex. cap M4x0.7x25
(Superseded to M-403025-S)

$4.99

$

In Stock, only 1 left!

0

18

Kohler 25 403 03-S

USE 41 403 09-S REG/RECT
(Superseded to 41 403 09-S)

$

$

Not available

19

Kohler 24 086 18-S

SCREW, PHL HD #11-16X7/8"

$2.49

$

Usually ships in 2-5 days

0

20

Kohler 236602-S

CONNECTOR, BODY (KM)-USE 25 155 41-S
(Superseded to 25 155 41-S)

$24.99

$

In Stock, only 1 left!

0

22

Kohler 48 154 02-S

CLIP

$16.99

$

Usually ships in 2-5 days

0

23

Kohler X-25-63-S

WASHER, FLAT 1/4" (O.D. 1/2")

$2.49

$

In Stock, only 3 left!

0

27

Kohler 235173-S

CLIP, CABLE

$11.99

$

Usually ships in 2-5 days

0

2417612-S

Kohler 24 176 12-S

HARNESS, WIRING

$98.99

$

Usually ships in 2-5 days

0

2451804

Kohler 24 518 04

LEAD - USE 25 518 34
(Superseded to 25 518 34)

Note: 3" - 18 gauge - terminals: 2 insulated grip barrel eyelets. To be replaced by 25-518-28

$6.99

$

Usually ships in 2-5 days

0
