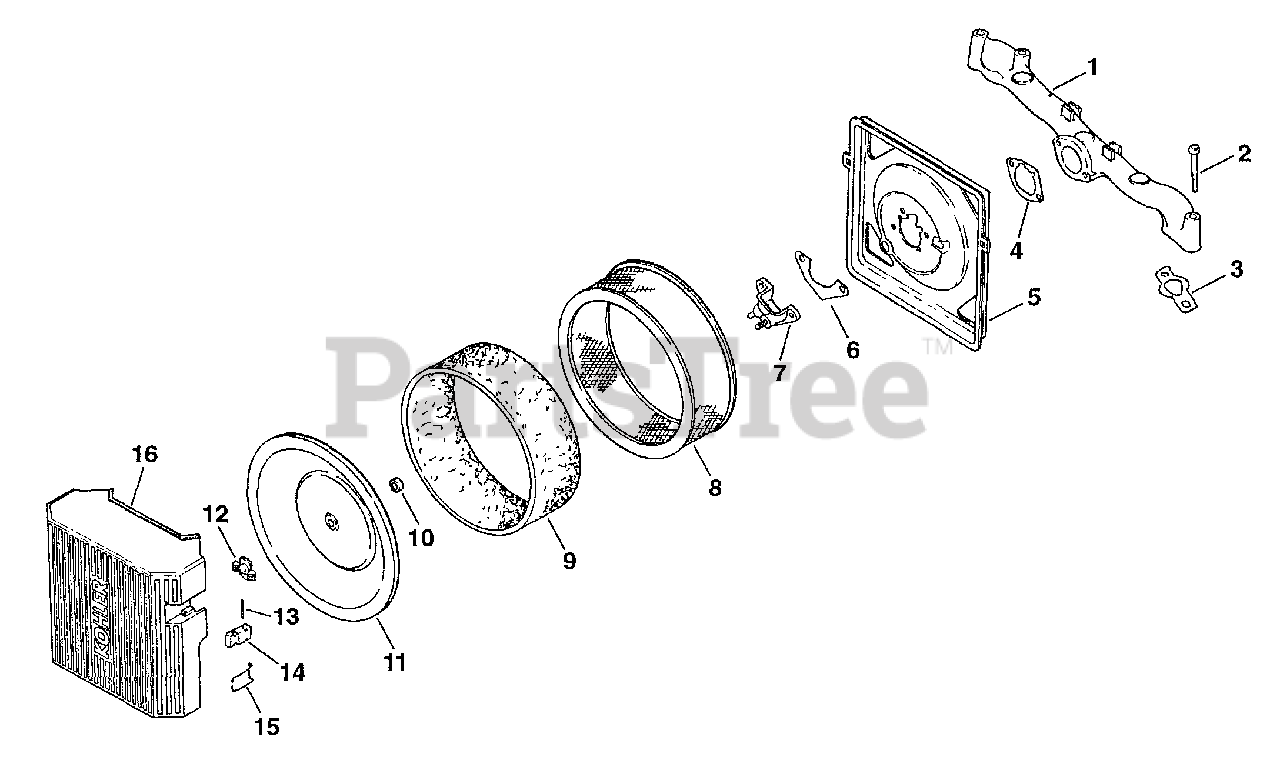

CV20-65530 - Kohler Command PRO Engine, Made for Electrolux Home Products, 20hp, 14.9kW Air Intake - Style A 10-24-402 (TP-2461) Rev 10/10/2006 Parts Diagram

Command PRO Engine, Made for Electrolux Home Products, 20hp, 14.9kW

Air Intake - Style A 10-24-402 (TP-2461) Rev 10/10/2006 Parts Diagram

  • Title

1

Kohler 24 164 06-S

MANIFOLD, INTAKE

$222.99

$

Usually ships in 2-5 days

0

2

Kohler M-0651055

Screw, hex. flange M6x1.0x55
(Superseded to 25 086 766-S)

$2.49

$

In Stock, Qty 20+

0

3

Kohler 24 041 01-S

GASKET, INTAKE MANIFOLD USE 24 041 79-S
(Superseded to 24 041 79-S)

$2.99

$

In Stock, Qty 7

0

4

Kohler 24 041 14-S

GASKET, AIR CLEANER BASE

$2.99

$

In Stock, Qty 9

0

5

Kohler 24 094 02

KIT - USE 24 755 86
(Superseded to 24 755 86-S)

Note: Use before Serial No. 2523300017, for reference only.. Replaced by 24-755-86

$140.99

$

Usually ships in 2-5 days

0

6

Kohler 24 041 13-S

GASKET, FUEL SPITBACK CUP

$5.99

$

In Stock, only 1 left!

0

7

Kohler 24 109 03

KIT - USE 24 755 86
(Superseded to 24 755 86)

Note: 27.5 mm stud CV18-22. Use before Serial No. 2523300017, for reference only.. Replaced by 24-755-86

$140.99

$

Usually ships in 2-5 days

0

8

Kohler 47 083 03-S

ELEMENT, AIR CLEANER - Also available Retail Packaged 47 883 03-S1 Air Filter Kit

$23.99

$

In Stock, Qty 17

0

9

Kohler 24 083 02-S

ELEMENT, PRECLEANER (LOW)

$6.99

$

In Stock, Qty 8

0

10

Kohler 24 032 03-S

SEAL, INNER AIR CLEANER

$4.99

$

In Stock, Qty 9

0

11

Kohler 24 096 01-S

COVER, INNER AIR CLEANER

$16.99

$

In Stock, only 1 left!

0

12

Kohler 12 100 01-S

NUT, WING

$3.99

$

In Stock, only 2 left!

0
