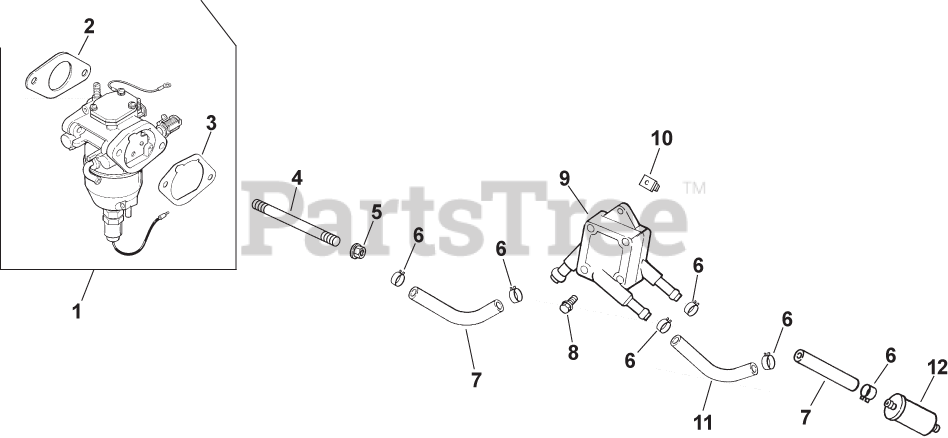

CV19-65598 - Kohler Command PRO Engine, Made for Kubota, 20hp, 14.9kW Fuel System 8-24-554 Created 7/15/2004 Parts Diagram

Command PRO Engine, Made for Kubota, 20hp, 14.9kW

Fuel System 8-24-554 Created 7/15/2004 Parts Diagram

  • Title

1

Kohler 24 853 25-S

KIT, CARBURETOR W/GASKET

Note: (includes 2,3)

$605.99

$

Usually ships in 2-5 days

0

2

Kohler 24 041 52-S

GASKET, CARBURETOR
(Superseded to 24 041 91-S)

$5.49

$

In Stock, Qty 8

0

3

Kohler 24 041 14-S

GASKET, AIR CLEANER BASE

$2.99

$

In Stock, Qty 9

0

4

Kohler M-629095-S

STUD,M6X1.0X96

$3.99

$

Usually ships in 2-5 days

0

5

Kohler M-641060-S

NUT, FLG M6X1.0

$4.49

$

In Stock, Qty 11

0

6

Kohler 25 237 14-S

CLAMP, HOSE (KM)-USE 25 237 31-S
(Superseded to 25 237 31-S)

$4.99

$

In Stock, only 2 left!

0

7

Kohler 25 353 14-S

LINE, FLEXIBLE FUEL - 7"

$8.49

$

Usually ships in 2-5 days

0

8

Kohler 24 086 12-S

SCREW, TAP M6X1.7X18

$

$

Not available

9

Kohler 24 393 16-S

PUMP, FUEL

$32.99

$

In Stock, only 2 left!

0

10

Kohler 24 100 01-S

NUT, PLASTIC (KM)-USE 25 100 37-S
(Superseded to 25 100 37-S)

$2.49

$

In Stock, Qty 13

0

11

Kohler 24 353 12-S

LINE, FUEL 11"

$3.99

$

Usually ships in 2-5 days

0

12

Kohler 24 050 10-S

FILTER, FUEL (9-12 MICRON)-USE 24 050 13
(Superseded to 24 050 13-S)

$12.99

$

In Stock, Qty 20+

0

2543114-S

Kohler 25 431 14-S

SLEEVE, ANTI ABRASION-USE 25 431 12-S
(Superseded to 25 431 12-S)

Note: NOT ILLUSTRATED

$10.99

$

In Stock, only 1 left!

0

2546214-S

Kohler 25 462 14-S

VALVE, FUEL SHUT-OFF

Note: NOT ILLUSTRATED

$17.99

$

Usually ships in 2-5 days

0

2475718-S

Kohler 24 757 18-S

KIT, CARBURETOR REPAIR

Note: NOT ILLUSTRATED

$79.99

$

In Stock, only 2 left!

0

2475719-S

Kohler 24 757 19-S

KIT, REPAIR SERVICE CHOKE

Note: NOT ILLUSTRATED

$153.99

$

In Stock, only 1 left!

0

2475720-S

Kohler 24 757 20-S

KIT, REPAIR SERVICE GASKET

Note: NOT ILLUSTRATED

$62.99

$

In Stock, only 1 left!

0

2475722-S

Kohler 24 757 22-S

KIT, REPAIR SOLENOID VALVE

Note: NOT ILLUSTRATED

$217.99

$

In Stock, only 2 left!

0
