CV18-61574 - Kohler Command PRO Engine, Made for Husqvarna, 18hp, 13.4kW Starting System 7-24-22 Parts Diagram

Command PRO Engine, Made for Husqvarna, 18hp, 13.4kW

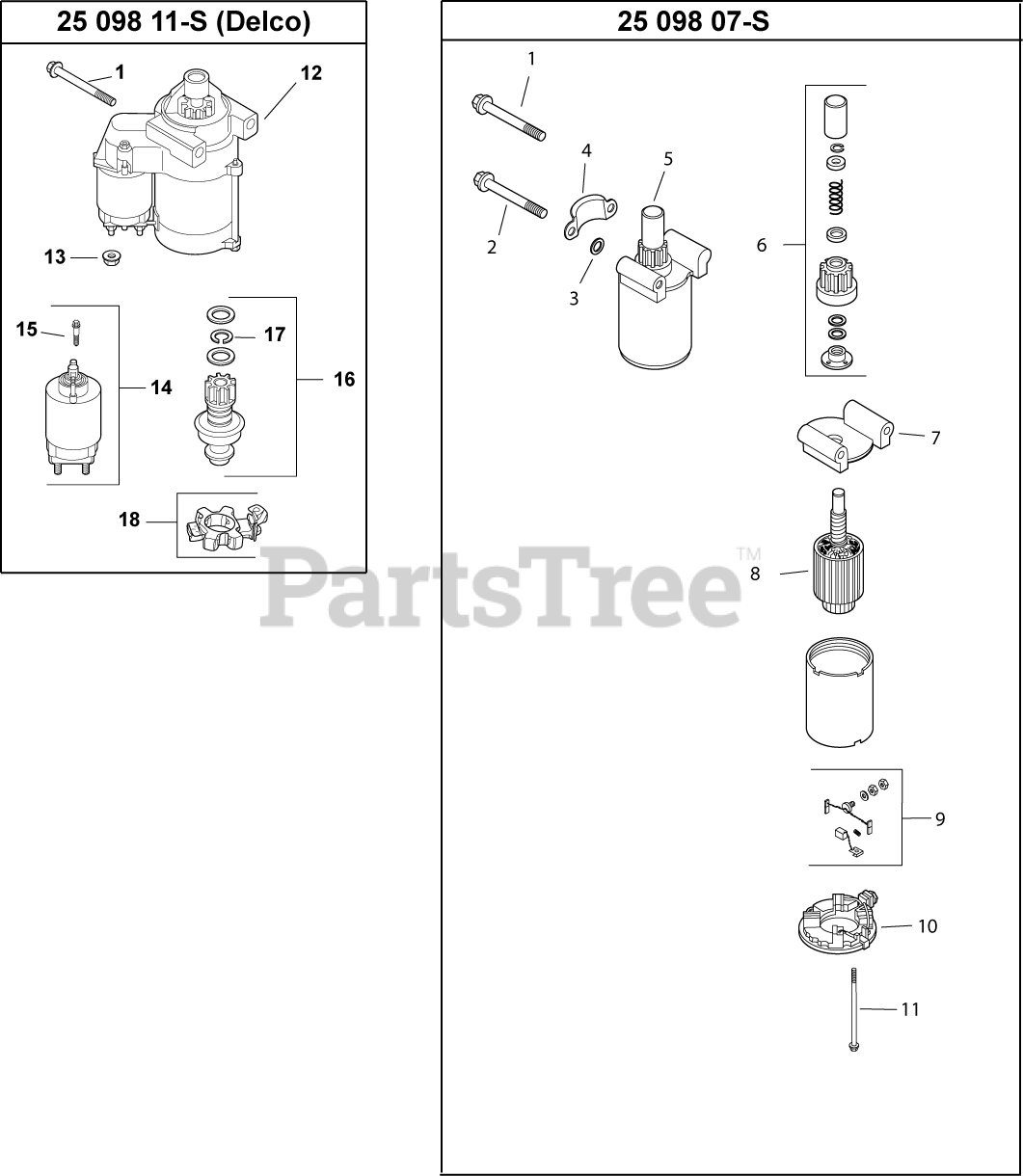

Starting System 7-24-22 Parts Diagram

  • Title

1

Kohler M-839080-S

SCREW - USE M-851080-S
(Superseded to M-851080-S)

$4.49

$

In Stock, only 2 left!

0

2

Kohler M-839070-S

SCREW, FLG M8X1.25X70

$9.49

$

Usually ships in 2-5 days

0

3

Kohler 12 468 01-S

WASHER, FLAT 11/32"

$2.99

$

Usually ships in 2-5 days

0

4

Kohler 24 096 05-S

COVER, PINION

$12.99

$

Usually ships in 2-5 days

0

5

Kohler 25 098 07-S

ELECTRIC STARTER-BENDIX DRIVE

Note: (Before S/N 3431600011)

$268.99

$

Usually ships in 2-5 days

0

6

Kohler 12 755 54-S

KIT, DRIVE

$124.99

$

Usually ships in 2-5 days

0

7

Kohler 12 227 18-S

CAP, DRIVE END - (#DSC)

$

$

Not available

8

Kohler 12 170 05-S

ARMATURE - DISCONTINUED

$

$

Not available

9

Kohler 12 221 01-S

BRUSH KIT - (#DSC)

$

$

Not available

10

Kohler 12 227 13-S

CAP - DISCONTINUED

$

$

Not available

11

Kohler 12 211 01-S

BOLT, THRU #10-24X4 13/32" - DISCONTINUED

$

$

Not available

12

Kohler 25 098 11-S

ELECTRIC STARTER - SOLENOID SHIFT USE 25 098 20-s
(Superseded to 25 098 20-S)

Note: (After S/N 3431600001)

$

$

Not available

13

Kohler M-841080-S

NUT, FLG M8X1.25

$2.49

$

Usually ships in 2-5 days

0

14

Kohler 25 435 06-S

KIT, SOLENOID

$212.99

$

In Stock, only 2 left!

0

15

Kohler 25 086 113-S

SCREW, EXTERNAL TORX HEAD

$15.99

$

Usually ships in 2-5 days

0

16

Kohler 25 755 33-S

KIT, STARTER PINION

$

$

Not available

17

Kohler 25 141 05-S

RING, RETAINING

$3.99

$

Usually ships in 2-5 days

0

18

Kohler 25 221 01-S

KIT, BRUSH HOLDER

$70.99

$

Usually ships in 2-5 days

0
