CV18-61557 - Kohler Command PRO Engine, Made for Exmark, 18hp, 13.4kW Engine Controls 9-24-249 CV18-750 Parts Diagram

Command PRO Engine, Made for Exmark, 18hp, 13.4kW

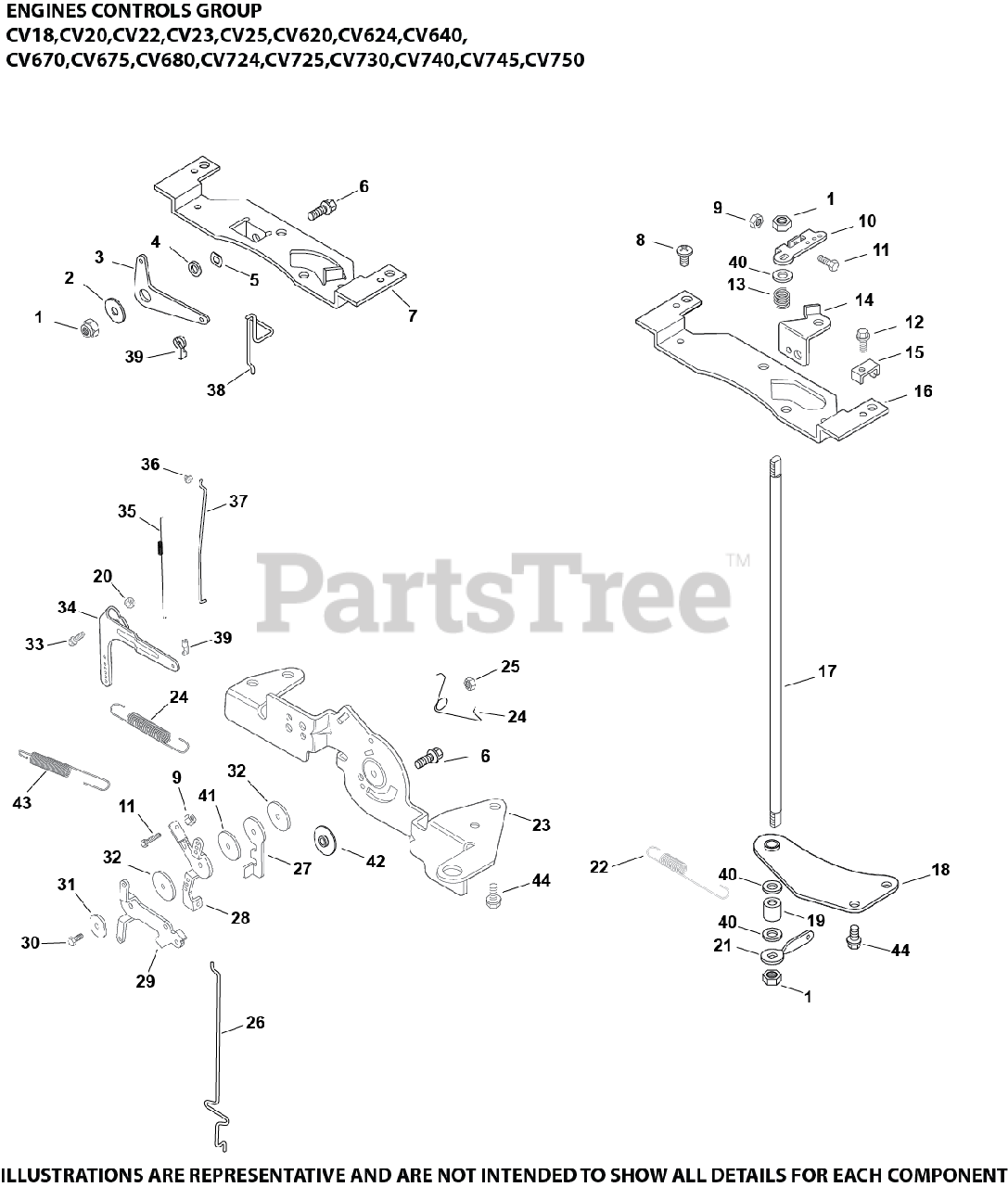

Engine Controls 9-24-249 CV18-750 Parts Diagram

  • Title

9

Kohler M-446030-S

NUT, M4X0.7

$2.49

$

In Stock, only 4 left!

0

11

Kohler M-403025-S

SCREW, SLT HD CAP M4X0.7X25

$4.99

$

In Stock, only 1 left!

0

12

Kohler 25 086 398-S

SCREW, THREAD FORMING

$3.99

$

Usually ships in 2-5 days

0

15

Kohler 12 237 01-S

CLAMP, CABLE
(Superseded to 25 237 53-S)

$3.49

$

In Stock, Qty 5

0

20

Kohler M-641060-S

NUT, FLG M6X1.0

$4.49

$

In Stock, Qty 8

0

22

Kohler 24 089 49-S

SPRING, GOVERNOR (ORANGE)

$8.99

$

In Stock, only 3 left!

0

23

Kohler 24 126 172-S

BRACKET, CONTROL - (#3212604S)
(Superseded to 32 126 18-S)

$11.99

$

In Stock, only 2 left!

0

24

Kohler 24 089 03-S

SPRING, CHOKE RETURN

$2.99

$

In Stock, Qty 12

0

25

Kohler M-547050-S

NUT, LOCK M5X.8

$2.49

$

In Stock, only 1 left!

0

26

Kohler 24 079 22-S

LINKAGE, CHOKE

$6.99

$

In Stock, Qty 7

0

27

Kohler 24 090 65-S

LEVER, THROTTLE ACTUATOR

$5.49

$

In Stock, only 1 left!

0

28

Kohler 24 090 03-S

LEVER, THROTTLE CONTROL

$13.99

$

In Stock, only 1 left!

0

29

Kohler 24 090 05-S

LEVER, CHOKE

$5.49

$

In Stock, only 2 left!

0

30

Kohler 25 086 399-S

SCREW, THREAD FORMING - USE 25 086 473-S
(Superseded to 25 086 473-S)

$2.49

$

In Stock, Qty 20+

0

31

Kohler 41 468 03-S

WASHER, SPRING 1/4"

$3.49

$

In Stock, only 2 left!

0

32

Kohler 24 468 01-S

WASHER, FLAT 5.5 MM

$2.49

$

In Stock, only 2 left!

0

33

Kohler 24 211 03-S

BOLT, RD HD SQ NECK M6X1.0X25

$2.49

$

In Stock, Qty 15

0

34

Kohler 24 090 69-S

LEVER, GOVERNOR ASSEMBLY

$8.99

$

In Stock, only 1 left!

0

35

Kohler 24 089 01-S

SPRING, LINKAGE

$6.49

$

In Stock, Qty 9

0

36

Kohler 25 158 08-S

BUSHING, LINKAGE RETAINING

$5.99

$

In Stock, Qty 18

0

37

Kohler 24 079 04-S

LINKAGE, THROTTLE

$3.49

$

In Stock, Qty 5

0

39

Kohler 25 158 11-S

BUSHING, THROTTLE LINKAGE

$5.99

$

In Stock, only 2 left!

0

40

Kohler X-25-72-S

WASHER, FLAT 1/4"

$3.99

$

In Stock, only 2 left!

0

41

Kohler 24 468 01-S

WASHER, FLAT 5.5 MM

$2.49

$

In Stock, only 2 left!

0

44

Kohler 25 086 397-S

SCREW, THREAD FORMING

$3.99

$

In Stock, Qty 13

0

X-20-1-S

Kohler X-20-1-S

WASHER, SPRING LOCK 1/4"

Note: NOT ILLUSTRATED

$3.99

$

In Stock, only 1 left!

0

M-541050-S

Kohler M-541050-S

NUT, FLG M5X.8

Note: NOT ILLUSTRATED

$2.99

$

In Stock, Qty 10

0

2408951-S

Kohler 24 089 51-S

SPRING, THROTTLE LIMITER

Note: NOT ILLUSTRATED

$5.49

$

In Stock, only 1 left!

0
