CV18-61552 - Kohler Command PRO Engine, Made for Gazda, 18hp, 13.4kW Fuel System 8-24-191 Parts Diagram

Command PRO Engine, Made for Gazda, 18hp, 13.4kW

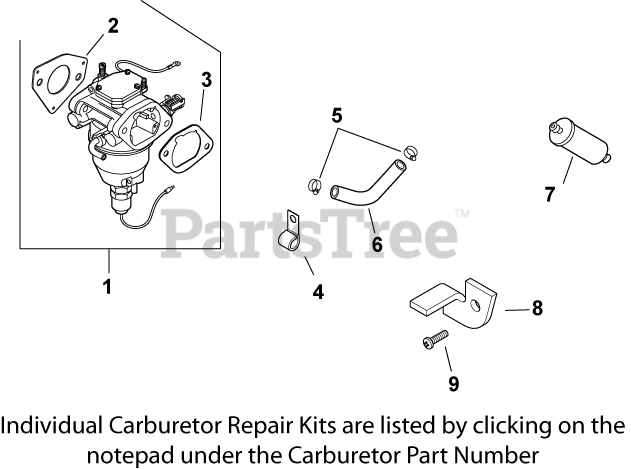

Fuel System 8-24-191 Parts Diagram

  • Title

1

Kohler 24 853 22-S

KIT CARBURETOR W/GASKETS

Note: (includes 2,3)

$587.99

$

Usually ships in 2-5 days

0

2

Kohler 24 041 15-S

GASKET, CARBURETOR

$15.99

$

In Stock, only 1 left!

0

3

Kohler 24 041 14-S

GASKET, AIR CLEANER BASE

$2.99

$

In Stock, Qty 9

0

4

Kohler 47 154 01-S

CLIP, CABLE

$5.49

$

In Stock, Qty 5

0

5

Kohler 25 237 14-S

CLAMP, HOSE (KM)-USE 25 237 31-S
(Superseded to 25 237 31-S)

$4.99

$

In Stock, only 2 left!

0

6

Kohler 25 111 34-S

HOSE,LW PERM.FUEL 24.00"-USE 25 111 81-S
(Superseded to 25 111 81-S)

$17.99

$

In Stock, Qty 7

0

7

Kohler 24 050 10-S

FILTER, FUEL (9-12 MICRON)-USE 24 050 13
(Superseded to 24 050 13-S)

$12.99

$

In Stock, Qty 20+

0

8

Kohler 24 126 29-S

BRACKET, THROTTLE STOP

$14.99

$

Usually ships in 2-5 days

0

9

Kohler M-259005-S

SCREW, PHL THD FRM M2.5X0.45X5

$2.49

$

Usually ships in 2-5 days

0
