CV18-61542 - Kohler Command PRO Engine, Made for MTD, 18hp, 13.4kW Engine Controls 9-24-252 Parts Diagram

Command PRO Engine, Made for MTD, 18hp, 13.4kW

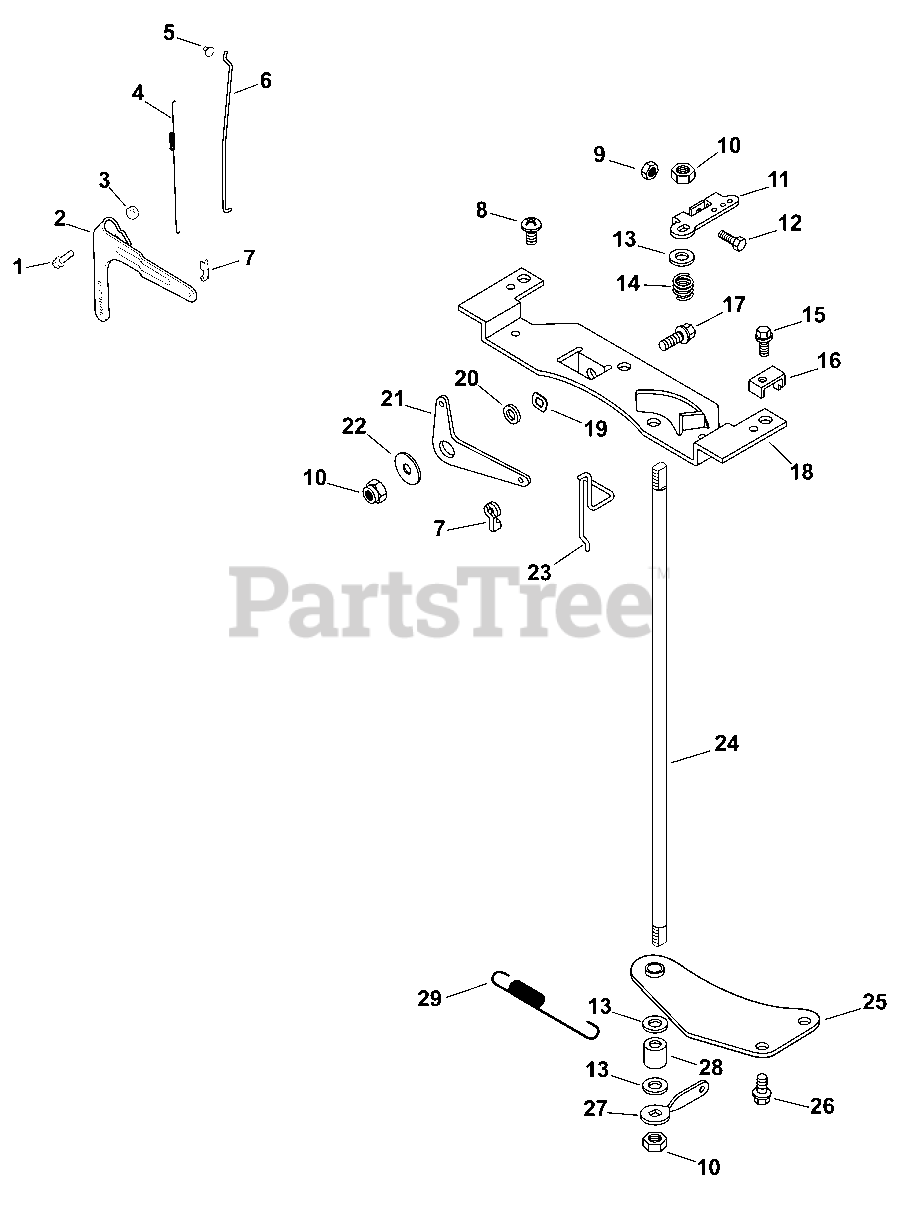

Engine Controls 9-24-252 Parts Diagram

  • Title

1

Kohler 24 211 03-S

BOLT, RD HD SQ NECK M6X1.0X25

$2.49

$

In Stock, Qty 15

0

2

Kohler 24 090 33-S

LEVER, GOVERNOR-USE 24 090 57-S
(Superseded to 24 090 69-S)

$8.99

$

In Stock, only 1 left!

0

3

Kohler M-641060-S

NUT, FLG M6X1.0

$4.49

$

In Stock, Qty 7

0

4

Kohler 24 089 01-S

SPRING, LINKAGE

$6.49

$

In Stock, only 4 left!

0

5

Kohler 25 158 08-S

BUSHING, LINKAGE RETAINING

$5.99

$

In Stock, Qty 19

0

6

Kohler 24 079 04-S

LINKAGE, THROTTLE

$3.49

$

In Stock, Qty 6

0

7

Kohler 25 158 11-S

BUSHING, THROTTLE LINKAGE

$5.99

$

In Stock, Qty 13

0

8

Kohler 24 086 06-S

SCREW, PHL HD 11-16X3/4"

$2.49

$

In Stock, only 3 left!

0

9

Kohler M-446030-S

NUT, M4X0.7

$2.49

$

In Stock, only 4 left!

0

10

Kohler M-647060-S

NUT, LOCK M6X1.0

$2.49

$

In Stock, only 3 left!

0

11

Kohler 24 090 09-S

LEVER, THROTTLE CONTROL

$10.99

$

In Stock, only 2 left!

0

12

Kohler M-401030-S

SCREW, CAP M4X.7X30

$3.49

$

In Stock, Qty 9

0

13

Kohler X-25-72-S

WASHER, FLAT 1/4"

$3.99

$

In Stock, only 1 left!

0

14

Kohler 24 089 20-S

SPRING, THROTTLE SHAFT

$5.49

$

In Stock, Qty 12

0

15

Kohler M-545016-S

SCREW,FLG THD FRM M5X0.8X16-(#25086398S)
(Superseded to 25 086 398-S)

$3.99

$

Usually ships in 2-5 days

0

16

Kohler 12 237 01-S

CLAMP, CABLE
(Superseded to 25 237 53-S)

$3.49

$

In Stock, Qty 5

0

17

Kohler M-639016-S

SCREW, FLG M6X1.0X16

$2.49

$

In Stock, Qty 6

0

18

Kohler 24 126 111-S

BRACKET, CONTROL-USE 24 126 219-S
(Superseded to 24 126 219-S)

$37.99

$

Usually ships in 2-5 days

0

19

Kohler 277341-S

WASHER, SPRING 3/8"

$7.49

$

Usually ships in 2-5 days

0

20

Kohler 25 431 01-S

SPACER

$7.49

$

In Stock, only 2 left!

0

21

Kohler 24 090 20-S

LEVER, CHOKE

$9.99

$

Usually ships in 2-5 days

0

22

Kohler X-25-52-S

WASHER, FLAT 1/4"

$3.99

$

In Stock, only 1 left!

0

23

Kohler 24 079 10-S

LINKAGE, CHOKE

$19.99

$

In Stock, only 2 left!

0

24

Kohler 24 144 11-S

SHAFT, THROTTLE

$28.99

$

Usually ships in 2-5 days

0

25

Kohler 24 126 17-S

BRACKET, THROTTLE SHAFT-USE 24 126 162-S
(Superseded to 24 126 162-S)

$8.99

$

In Stock, only 1 left!

0

26

Kohler M-645016-S

SCREW,FLG THD FRM M6X1.0X16-(#25086397S)
(Superseded to 25 086 397-S)

$3.99

$

In Stock, Qty 15

0

27

Kohler 24 090 12-S

LEVER, THROTTLE CONTROL

$10.99

$

Usually ships in 2-5 days

0

28

Kohler 24 112 10-S

SPACER

$2.99

$

In Stock, only 1 left!

0

29

Kohler 24 089 45-S

SPRING, GOVERNOR (BLUE)

$8.99

$

In Stock, Qty 10

0
