CV18-61530 - Kohler Command PRO Engine, Made for Snapper, 18hp, 13.4kW Starting System 7-24-10 (TP-2461) Parts Diagram

Command PRO Engine, Made for Snapper, 18hp, 13.4kW

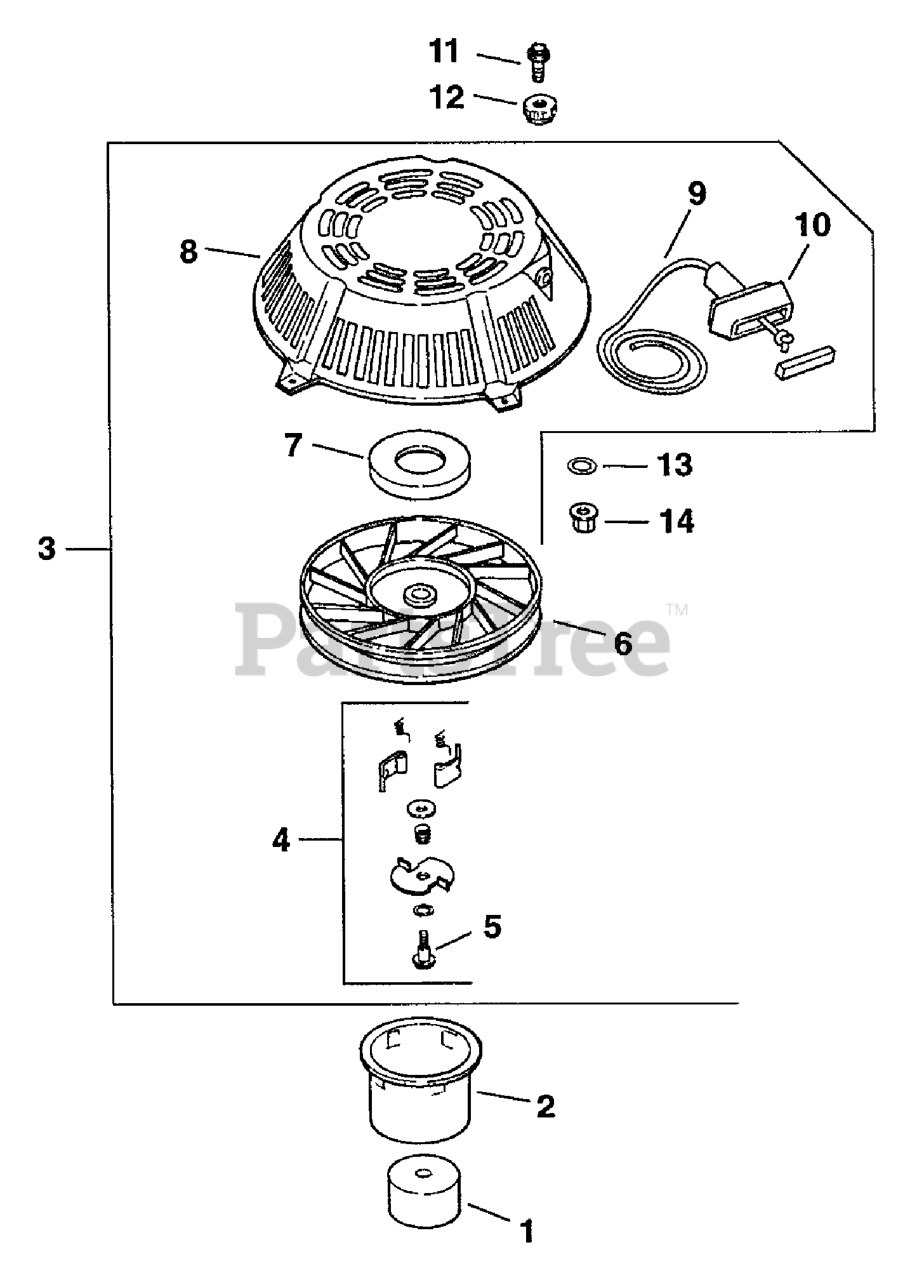

Starting System 7-24-10 (TP-2461) Parts Diagram

  • Title

1

Kohler 24 112 15-S

SPACER, DRIVE CUP

$76.99

$

Usually ships in 2-5 days

0

2

Kohler 15 109 01-S

CUP

$21.99

$

In Stock, only 1 left!

0

3

Kohler 24 165 01-S

STARTER, RECOIL USE 24 165 03-S
(Superseded to 24 165 03-S)

Note: Includes 4-10

$140.99

$

Usually ships in 2-5 days

0

4

Kohler 12 757 06-S

KIT, DOG REPAIR - (#DSC)

Note: Includes 5

$

$

Not available

5

Kohler 41 086 09-S

SCREW - DISCONTINUED

$

$

Not available

6

Kohler 12 093 01-S

PULLEY - (#DSC)

$

$

Not available

7

Kohler 12 089 06-S

SPRING & KEEPER - (#DSC)

$

$

Not available

8

Kohler 24 081 09-S

HOUSING, STARTER

$105.99

$

Usually ships in 2-5 days

0

9

Kohler 12 160 01-S

ROPE - DISCONTINUED

$

$

Not available

10

Kohler 234452

HANDLE - USE 25 166 01
(Superseded to 25 166 01)

$15.99

$

In Stock, Qty 10

0

11

Kohler 24 086 15-S

SCREW, SPECIAL HEAD

$4.49

$

Usually ships in 2-5 days

0

12

Kohler 24 100 08-S

NUT, KNURL

$7.49

$

Usually ships in 2-5 days

0

13

Kohler X-25-53-S

WASHER, FLAT 1/4" (O.D. 5/8")

$3.49

$

Usually ships in 2-5 days

0

14

Kohler X-81-1-S

NUT, 1/4-20 GRADE 2 USE 25 100 20-S
(Superseded to 25 100 20-S)

$3.49

$

In Stock, only 1 left!

0
